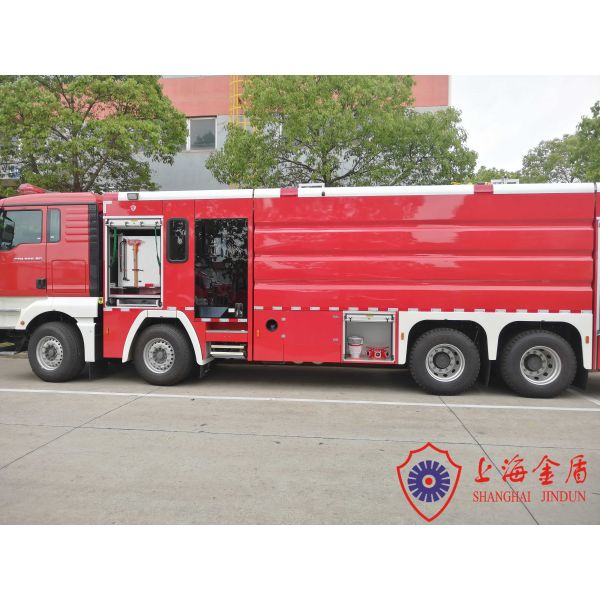

Heavy Duty 8x4 Drive Foam Tanker Fire Truck With Separete Crew Room Six Seats
Heavy Duty 8x4 Drive Foam Tanker Fire Truck With Separete Crew Room Six Seats
Specifications
Brand Name :
CIMC Jindun
Model Number :
PM180/B
Certification :
ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Place of Origin :
Shanghai, China
MOQ :
1 UNIT
Price :
Factory price, Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 units/year
Delivery Time :
3 months after sign contract
Packaging Details :
Exporting standard package or customized packing
Chassis brand :
Mercedes-Benz
Max. power :
440KW
Drive :
8×4
Gross vehicle weight :
38650 kg
Crew seats :
2+4
Water capacity :
12000kg
Foam capacity :
6000kg
Fire monitor :
120L/s
Pump flow :
140L/s
Product name :
Heavy Duty 8x4 Drive Foam Tanker Fire Truck
Description

Heavy Duty 8x4 Drive Foam Tanker Fire Truck with Separete Crew Room Six Seats


The PM180 heavy duty foam fire truck is refited form Mercedes-Benz chassis. The vehicle equiped with HALE pump, fire monitor and separete crew room. Throw range of the fire monitor could reach 85 meters. The whole layout is reasonable. Equipment compartment, liquid tank and pump room are adopt split structure with novel and coordinated appearance. The compact structure makes easy operation and maintenance.

The vehicle carries 18000L fire extinguishant and with fast speed 95km/h. It's mainly used in petrochemical enterprises, oil terminals, oil fields, airports, and full-time fire bridages in large and medium-sized cities and enterprises.

Vehicle

Dimension (L×W×H)11310×2500×3630mm
Gross weight38650kg
Complete vehicle shipping mass20600kg
Seat (inc. driver)6
Max. power440kw


Chassis

ManufacturerDaimler
ModelActros4160
Drive type8x4
CabRotatable type
Wheelbase1700+4300+1350mm
Max. speed95km/h
Min. turning diameter≥26m
Approach angle23°
Departure angle11°
Engine typeInline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine
ModelOM502LA.IV/3
Max. power440kw
Max. torque2800N•m
Emission standardChina IV/Euro IV
ClutchMonolithic, dry
Gearbox modelManual, 16 forward gear
Tyre

Forward: 4x 385/65R22.5
Rear: 8x 315/80R22.5


Cab

StructureRotatable type
Seat1+1+4
EquipmentExcept the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats


Fire pump

ManufacturerHALE
Model8FC monopole PTO type
Flow140L/s
Pressure1.0MPa
Water diversionPiston primer pump
Max. vacuum degree≥85 kPa
Priming time≤80s
Foam proportionerPH64x3
TypeManual
Mixing ratio3%, 6%


Fire monitor

Model7500-EXM
PositionRear roof
Flow120L/s
Pressure1.0MPa
Rangewater≥85m ,foam≥65m
Rotation angle

Level ≥270°
Max. elevation angle ≥+45°
Max. depression angle ≥-7°


Heavy Duty 8x4 Drive Foam Tanker Fire Truck With Separete Crew Room Six Seats

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q: What's the delivery time?

A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

3) European brand chassis 9 months upon receipt of advance deposit.

Any other questions, please do not hesitate to contact with us.
