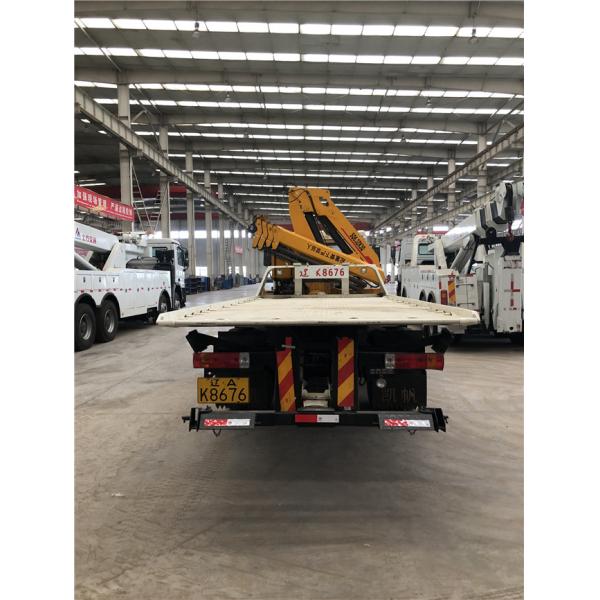

Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg
Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg
Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg
Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg
Specifications
Brand Name :
YD
Model Number :
S Series
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD
Payment Terms :
T/T, L/C
Supply Ability :
50 SETS PER MONTH
Delivery Time :
30 working days
Packaging Details :
standard package in container
Gearbox :
5 forwards 1 reverse
Steering :
power steering
Operating stroke :
2680(mm)
Color :
Request
Wheel base :
3800(mm)
Description

Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg

Multi-purpose wrecker/5 ton flatbed wrecker tow truck mounted crane
Vehicle brand
CLW
Chassis brand
Dongfeng
Overall dimensions
7440××2350×2440(mm)
Wheel base
3800(mm)
Gross weight
8250(Kg)
Cube weight
5110(Kg)
Front/Rear axles loading capacity
3000/5250(kg)
Tire
7.50-16LT 14PR,7.50R16LT 14PR
Gearbox
5 forwards & 1 reverse
Steering
power steering, hydraulic steering with power assistance
Engine power
90(kw)
Emission standard
Euro V
platform dimensions
6200*2400(mm)
Operating stroke
2680(mm)
Min. angle of slope
8(°)
Rated winch traction weight
5000(kg)
Length of steel wire rope
21(m)
Max. length of extended boom
1680(mm)
Rated lifting weight
3635(kg)
Max. extended lifting weight
2500(kg)
Rated traction weight
10000(kg)
Elevation of boom (upper/ lower)
9~-10(°)
Max lifting capacity of crane
4T
Max lifting height of crane
10.8m
MOQ
1 set
Warranty
2 years

Multi-purpose wrecker/5 ton flatbed wrecker tow truck mounted crane

Specifications

The wrecker truck is equipped with lifting, pulling and hoisting etc. on the basis of special purpose chassis.It has the function of lifting,pulling, hoisting , lift platform and load transportation and others.It is mainly used for road fault vehicles,city peccancy vehicles and emergency rescue etc.The wrecker truck is widely used in highway,the traffic police, airport, wharf, auto repair industry and highwaydepartments etc.It can be used to clean up the accident, fault, violation vehicles etc .timely and quickly.

Gross Weight 8250Kg Road Wrecker Truck Max Extended Lifting Weight 2500kg
