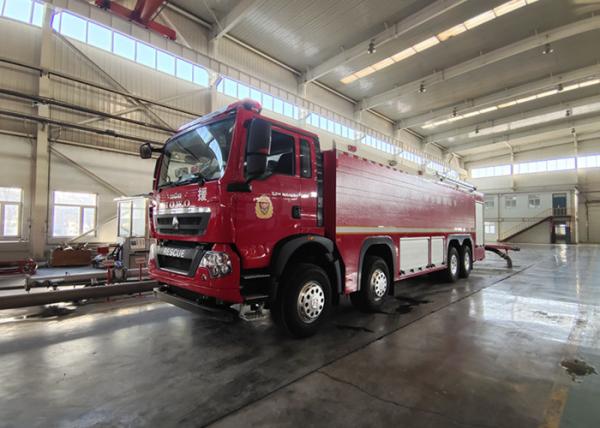

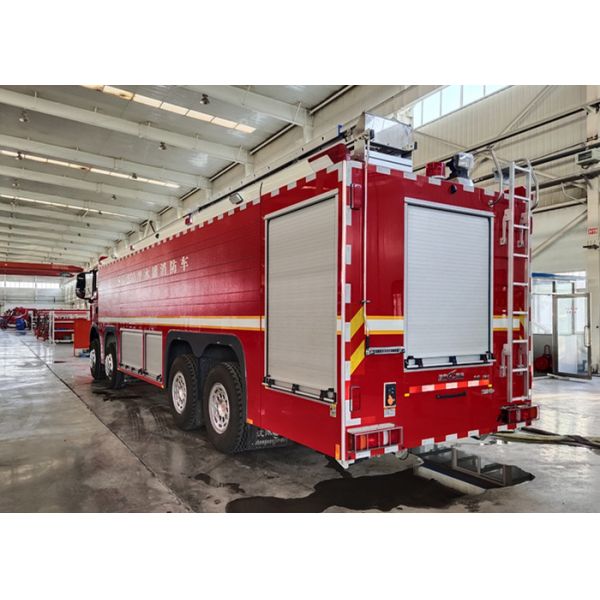

15270kg 6x4 Drive Pumper Water Tanker Fire Truck with 22m Turning Diameter
15270kg 6x4 Drive Pumper Water Tanker Fire Truck with 22m Turning Diameter
15270kg 6x4 Drive Pumper Water Tanker Fire Truck with 22m Turning Diameter
15270kg 6x4 Drive Pumper Water Tanker Fire Truck with 22m Turning Diameter
Specifications
Brand Name :
CIMC Jindun
Model Number :
SG180
Certification :
ISO9001,CCC,
Place of Origin :
Shanghai,china
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
120 days
Packaging Details :
Exporting standard package or customized packing
Size :
11865×2500×3800
Weight :
39750kg
working height :
25m
Wheel base :
1875+3950+1380 (mm)
Folding depth :
500mm
Max loading weight :
30090kg
Person :
2+4
Driving :
6×4
Water Capacity :
18550L
Foam :
4000L
Keywords :
Water tank fire truck
Chassis brand :
SINOTRUK HOWO or MAN (optional )
Description

Shipping Mass 15270kg Water Tank Fire Truck 6x4 Drive 22m Turning Diameter

Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, oil depots, airports, large and medium-sized city full-time fire brigade and enterprise fire brigade.

Chassis

Manufacturer Sinotruk HOWO
Model ZZ5347V4647D5
Drive type 6x4
Cab Flattop four door length
Wheelbase 4600+1350mm
Max. speed 85km/h
Min. turning diameter <22m
Approach angle 16°
Departure angle 12°
Engine type Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.38-40
Max. power 276kw
Max. torque 1560N•m
Emission standard China IV/ Euro IV
Clutch Monolithic, dry
Gearbox model Manual 10forward gear

Pipeline

Outlet pipeline

4×DN80 ordinary pressure outlet

1×DN50 ball valve
Suction inlet

4×DN150 outside suction coupling

1×DN150 valve
Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve
Residual water outlet Water cock
Cooling water Cooling installation




15270kg 6x4 Drive Pumper Water Tanker Fire Truck with 22m Turning Diameter

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
