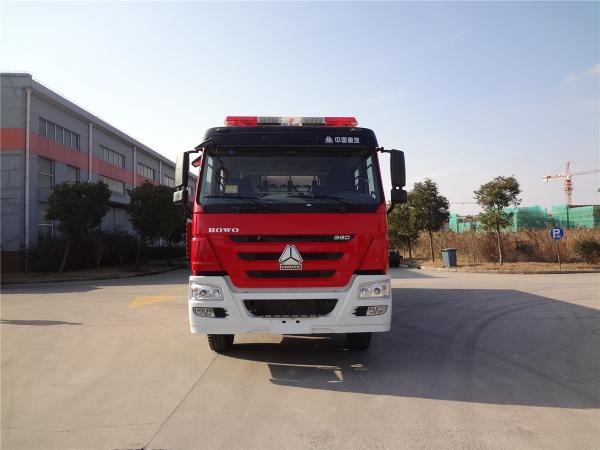

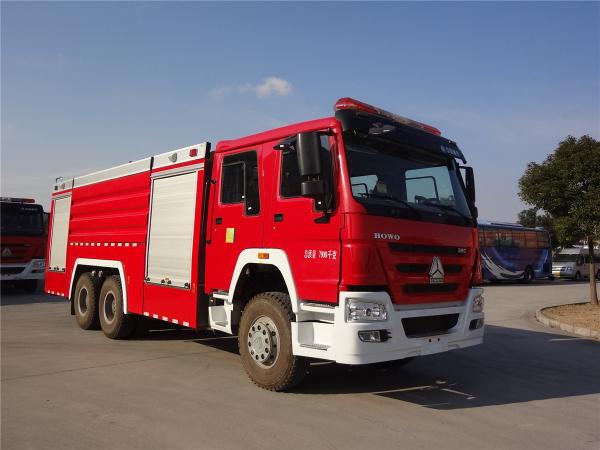

6x4 Foam Fire Truck With 16000kg Water Foam Tender For Fire Brigades
6x4 Foam Fire Truck With 16000kg Water Foam Tender For Fire Brigades
6x4 Foam Fire Truck With 16000kg Water Foam Tender For Fire Brigades
6x4 Foam Fire Truck With 16000kg Water Foam Tender For Fire Brigades
Specifications
Brand Name :
CIMC Jindun
Model Number :
PM160/H
Certification :
ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Place of Origin :
Shanghai,China
MOQ :
1 UNIT
Price :
Factory price, negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 units per year
Delivery Time :
Negotiable
Packaging Details :
Exporting standard package or customized packing
Chassis brand :
Sinotruk Howo
Driving :
6x4
Water capacity :
12000 L
Foam capacity :
3500 L
Tank material :
Stainless steel or PP
Pump flow :
100 L/s @1.0Mpa
Monitor flow :
80 L/s @ 0.8Mpa
Equipment locker :
Roller shutter doors
Product name :
6x4 dirve foam firefighting truck
Description

6x4 Foam Firefighting Truck with 16000kg Water Foam Tender for Fire Brigades

Vehicle

Dimension Approx. 10350×2550×3446 (mm)
Gross Vehicle weight 34000 (kg)
Engine power 340HP
Extinguishing capacity Water:12000Liters,Foam: 3500Liters
Cabin Double cabin, 2+4 persons. the rear cabin backrests fitted with four fixtures to put Self Contained Breathing Apparatus.


Chassis

Manufacturer Sinotruk Howo
Driving type 6×4
Wheelbase 4600+1350 mm
Max. speed 102 km/h
Engine type In line, six cylinders, four strokes, water-cooled, direct injection, supercharged, intercooled diesel engine
Rated power 340hp (247 kw)
Max. torque 1120N.M/1200-1600rpm
Emision standard Euro III
Steering Hydraulic steering with power assistance, RHD
Gearbox HW19710,10F&2R
Tire type 12.00—20

Fire pump

Model CB10/100-G normal pressure fire pump
Pressure 1.0 Mpa
Flow 100 L/s
suction depth 7m

Fire monitor

Model PL80
Flow 80 L/s
Pressure 0.8 Mpa
Throw range Water≥75m, foam≥70m
Rotation 0-360°
Pitch -15° to 90°

Tanker

Capacity Water: 12000L, foam: 3500L,
Material 304 stainless steel or PP


6x4 Foam Fire Truck With 16000kg Water Foam Tender For Fire Brigades

FAQ

1. Q: Why should we choose you?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.

2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
