Specifications
Brand Name :
Jindun
Model Number :
JDX5120TXFHJ100/B
Certification :
ISO9001,CCC
Place of Origin :
shanghai China
MOQ :
1 unit
Price :
Factory price, negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Nude packing
Chassis brand :
MAN
Size :
8960×2475×3400 mm
G.V.W :
11610 kg
Wheelbase :
5100 mm
shipping mass :
11160 kg
Seats :
2+4, include driver
Driving type :
4x2
Max Power :
214 kw
Product name :
6.5m emergency rescue vehicle, fire and rescue trucks
Description

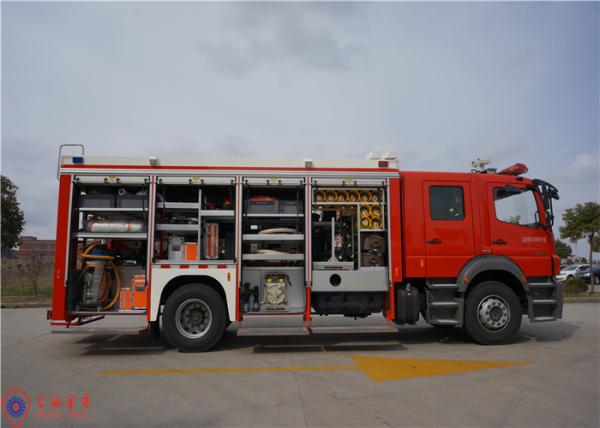

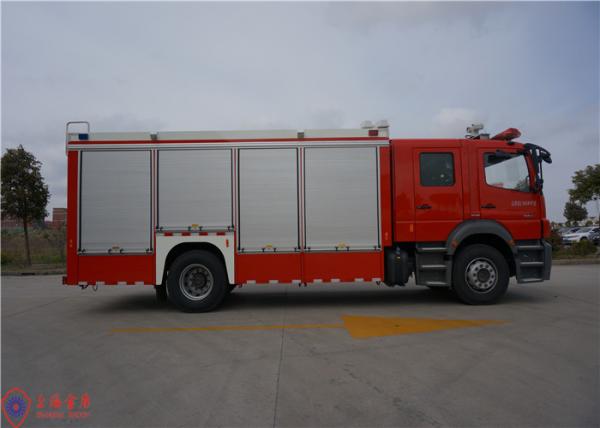

6.5 Meters Lifting Height Imported Chassis Emergency Rescue Fire Vehicles

Vehicle

Dimension (L×W×H) 8960×2475×3400mm
Gross weight 11610kg
Complete vehicle shipping mass 11160kg
Rescue equipment quantity 100pcs
Seat (inc. driver) 2+4
Max. power 214kw

Chassis

Manufacturer Daimler
Model AXOR 1829
Drive type 4x2
Cab Crew cab
Type Reversible
Wheelbase 5100mm
Approach angle/departure angle 15°/12°
Min. turning diameter <19m
Engine type In-line arrangement water-cooling turbocharged inter-cooled CI engine
Model OM906LA.IV/3
Max. power 214kw
Max. torque 1120N.M
Emission standard China IV
Clutch Monolithic, dry
Gearbox model G131-9
Type Manual

Lift lighting system

Manufacturer Zhejiang Senken
Model SG65-4600F1
Lifting height 6.5m
Above ground level ≥7.6m
Control system working pressure DC24V
Lamps working pressure 220V
Lamps power 4×600w
Lamps horizontal rotating angle 380°
Lamps vertical rotating angle 330°

Equipment layout principles

1, According to combat programming and combat development design equipment integration.

2, According to human body engineering principle design all kinds of equipment frames.

3, According to using logic and frequency of use place equipment.

4, 1-2 action can take any equipment standing on the ground or pedal.

5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.

6.5 Meters Lifting Height Imported Chassis Emergency Rescue Fire Vehicles

FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.

2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q:What's your main products?

A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
