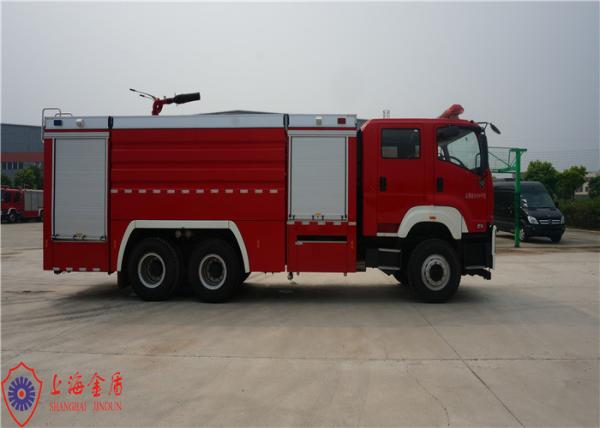

6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO
6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO
6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO
6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO
Specifications
Brand Name :
CIMC Tianda
Model Number :
JDX5260GXFPM120/W
Certification :
ISO9001/CCC
Place of Origin :
Shanghai,China
MOQ :
1 unit
Price :
Factory price, Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram, D/P
Supply Ability :
300 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Nude packing
Max speed :
102km/h
Wheelbase :
4605+1300mm
Seats :
2+4
Max. power :
257Kw/2400r/min, 350hp
Structure :
Double row, four-door
PTO :
YTQ590K, sandwich type
Drive type :
6x4
Product name :
Foam tanker commercial fire trucks
Description

6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO

Chassis

Manufacturer Isuzu
Model QL5330GXFUPCZY
Drive type 6x4
Cab Double row(1+1+4), 4x6.8L air breathing apparatus fixed mount in the rear seats
Wheelbase 4605+1300mm
Front tread 2060mm
Rear tread 1855/1855mm
Max. speed 102km/h
Min. turning diameter <19.6m
Chassis net weight 8200kg
Max. approved loading 33000kg
Engine type In-line six-cylinder, four stroke, water -cooling, turbocharged engine
Model 6UZ1-TCG40
Max. power 257Kw/2400r/min, 350hp
Max. torque 1422N.M/1450rpm
Emission standard GB17691-2005 China IV,GB3847-2005
Gearbox model 9JS150TA-B Manual
Tyre 12.00R20/10

Cab

Structure Double row, four-door
Seat 2+4
PTO YTQ590K, sandwich type

Fire pump

Manufacturer Hale
Model RSD
Flow 100L/s
Pressure 1.0MPa
Water diversion Electric vacuum primer pump
Max. vacuum degree >85 kPa
Priming time ≤80s
Suction depth 7m
Auto ring pump foam FSA125, FSA AUTOMATE CO.LTD
Foam flow 0.15~7.5L/S
Water flow 6~125 L/S

Pipeline

Water filling pipe end

2×DN80 ordinary pressure outlet

1×DN50 ball valve
Suction inlet

1×DN150 suction coupling

1×DN150 pneumatic butterfly valve
Outlet

1×DN100 pneumatic valve

2×DN80 outlet valve
Residual water outlet Ball valve
Cooling water pipeline The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.

Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.

6x4 Drive Foam Commercial Fire Trucks With YTQ 590K Sandwich Type PTO

FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.

2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
