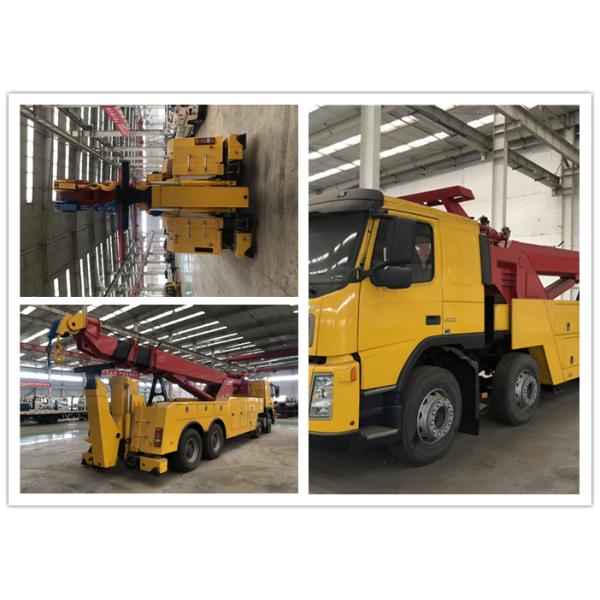

10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
Specifications
Brand Name :
Young da
Model Number :
KFM5540TQZ–SQZ3554HV
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Temperature :
-35℃--+45℃
Engine model :
D13
Persons :
2
Tire size :
315/80R22.5
Rotation angle :
360
Winch :
2 pieces
Description

10×4 drive VOLVO Road Wrecker External dimension 11342×2500×3710 315/80R22.5 Tire size

Vehicle

Parameters

 External dimension mm 11342×2500×3710
Chassis model FM440 104RB
Drive 10×4
Axle base mm 1995+2805+1400+1370
The whole weight of empty load kg 38055
Load of front axle of empty load kg 16885
Load of rear axle of empty load kg 21170
The whole weight of full load kg 54000
Load of front axle of full load kg 9000
Load of rear axle of full load kg 10000/13000
Wheel base (front/rear axle) mm 2029/1875
Front suspension mm 1362
Rear suspension mm 1750
Approach angle º 16.6
Departure angle º 20
Min. Turning diameter m 27.2
Min. Ground clearance mm 306
Max. Speed km/h 90
Max. Grade ability % 25
Gas consumption per one hundred miles(diesel oil) L 42.9
Engine model - D13
Engine emission L 12.8
Rated power kw/r/min 440/324/1400～1800
Torque n·m/r/min 2200/1050～1400
Fuel type Diesel
Standard of emission EN III
Tire size 315/80R22.5
Persons 2
KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind.
Items Unit Value
Lifting Structure Rated Lifting weight kg 15815
Max. Lifting weight of original place kg 35000
Max. Lifting weight of full extension boom kg 12500
Rated towing weight kg 54000
Max. Designed towing weight kg 80000
Effective length of boom m 3670
Extension traveling of boom m 1850
Folding angle of boom ° 90
Under lift Structure Max. Rated hanging weight kg 40000
The height from hook to the ground mm 13500
Max. Extension traveling of lifting boom mm 6000
Rotation angle ° 360
Numbers of winch piece 2

10 × 4 Drive VOLVO Road Wrecker Truck External Dimension 11342 × 2500 × 3710
