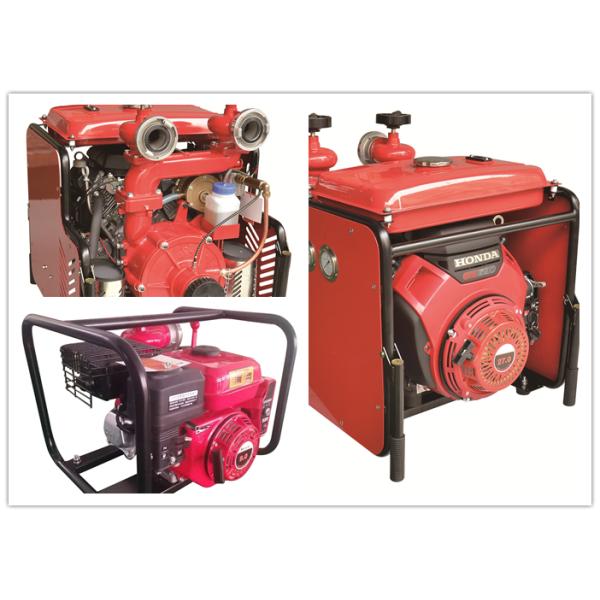

Two Stage High Pressure Water Pumps For Fire Fighting Middle Flow Double Cylinder
Two Stage High Pressure Water Pumps For Fire Fighting Middle Flow Double Cylinder
Two Stage High Pressure Water Pumps For Fire Fighting Middle Flow Double Cylinder
Two Stage High Pressure Water Pumps For Fire Fighting Middle Flow Double Cylinder
Specifications
Brand Name :
Jindun
Model Number :
BJ24A-2K
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Dimension :
780×600×650mm
Net weight :
150kg
Highest lift :
145m
Rated pressure :
1.0Mpa
Cylinders :
Double cylinder
Water pump :
two stage
flow rated :
660L/min
suction depth :
9m
Description

Two-stage Water pump High pressure middle flow Portable fire pump 9m maximum suction depth​

Dimensions 780×600×650mm
weight 150kg
Limited Data 660L/min
Head 145m
preset pressure 1.0Mpa
Inlet pipe diameter Φ80mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection method Inch pipe thread type
Maximum suction depth 9m
Water diversion time ≤20s
Startup mode Electric start
engine model CH940
Water pump Two-stage

Two Stage High Pressure Water Pumps For Fire Fighting Middle Flow Double Cylinder
