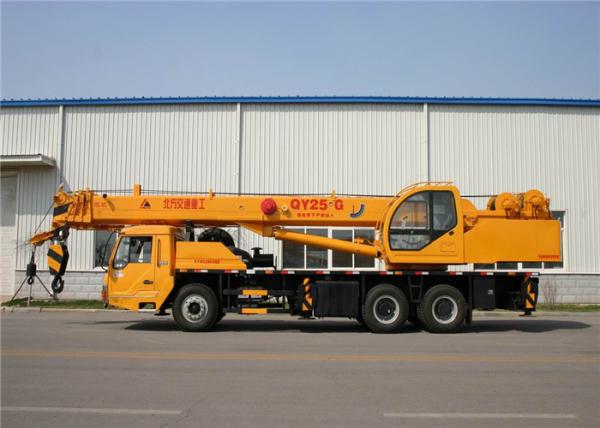

Hydraulic Truck Crane 25 Ton Truck Crane KFM5306JQZ25G ( QY25G )
Hydraulic Truck Crane 25 Ton Truck Crane KFM5306JQZ25G ( QY25G )
Hydraulic Truck Crane 25 Ton Truck Crane KFM5306JQZ25G ( QY25G )
Hydraulic Truck Crane 25 Ton Truck Crane KFM5306JQZ25G ( QY25G )
Specifications
Brand Name :
Jiefang
Model Number :
KFM5306JQZ25G
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Wind force :
≤6 degree
lifting weight :
25000kg
Turning speed :
0~2.4r/min
whole weight :
29870kg
rotate speed :
2500r/min
Max. Torque :
1050n.m
Description

70km/h Max Traveling speed 25T (FAW) truck Crane 25000kg Max. Rated lifting weight KaiFan Brand

One. Working Range

KFM5306JQZ25G(QY25G)

“KAI FAN” Brand KFM5306JQZ25G(QY25G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

Two. Main Parameters

Items Unit Value
Working Performance Parameters Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 875
Max. Height of the main boom m 32.45
Max. Height of the vice boom m 40.14
Max. Speed of the single rope m/min 115
Working Speed Extension time of the lifting boom s 115
Lifting time of the lift boom s 80
Turning speed r/min 0~2.4
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 32
Min. Turning diameter m 20
Min. Ground clearance m 0.265
Approaching angle ° 16
Departure angle ° 11

Weight Parameters

 The whole weight of full load kg 30000
Load of the front axle kg 7000
Load of the middle-rear axle kg 23000
The whole weight kg 29870

Dimension Parameters

 External dimension(length×width×height) mm 12630×2600×3485
Vertical span of outrigger m 5.2
Horizontal span of outrigger m 5.9
Length of main boom m 10.2~32.1
Length of vice boom m 8.1
Elevation of main boom ° -1~80
