GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive
GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive
GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive
GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive
Specifications
Brand Name :
KaiFan
Model Number :
KFM5075JGK –GKS-22Q
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Altitude :
0-1000m
Temperature :
-25℃--+45℃
External size :
7150×2045×3550
Working height :
22000
Working radius :
13400
Persons :
2
Description

ISUZU chassis 4x2 drive 22M Telescopic Boom Aerial Working Platform 90km/h speed 200kg load

A,Working Condition

1,Altitude: 0-1000m

2,Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3,Allowed working condition: solid, stable land, the vehicle should be horizontal

4,Wind force: ≤6 degree (wind speed ≤12.5m/s)

B,Vehicle Information

  1. Manual Instruction
  2. Operation manual of chassis
  3. Guarantee of chassis
  4. Certification of quality of the vehicle
  5. Maintenance Manual (Operation instruction)
  6. Operating safety certification

C,Main Parameters

Bulletin No. KFM5075JGK
Type GKS-22Q
External dimensions(mm) 7150×2045×3550
Structure type Four-section telescopic boom
Working Cage Internal size(mm) 1000×650×1100
Rated loading(kg) 200(or 2 persons)
Max. Working height(mm) 22000
Max. Height from ground(mm) 20300
Rotation angle(º) Left 90 º, right 90 º
Max. Working radius(mm) 13400
Working radius when doing the highest height(mm) 4190

Working Boom

 Lifting angle(º) -12~80
Out rate speed(mm/sec) 12360/70
Ret rate speed(mm/sec) 12360/70
Boom rack rotation angle(º) 360
Boom rack rotation speed(r/min) 1.0

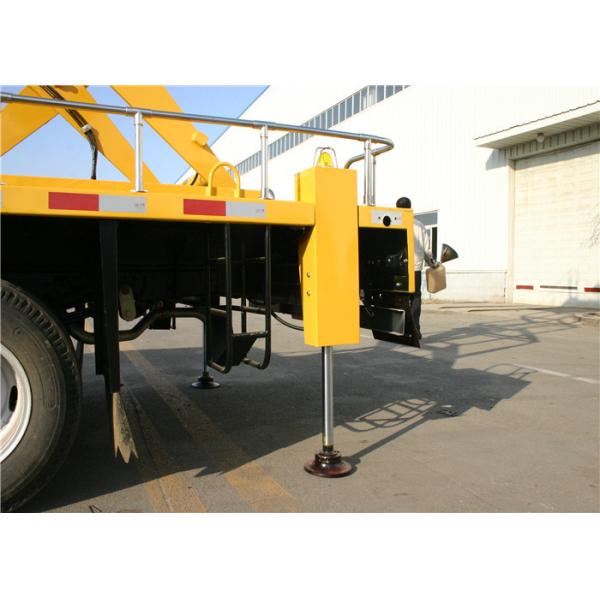

Outrigger

)

Vertical span(mm)

 4000
Horizontal span(mm) 4000
Traveling of vertical outrigger(mm) 550
Adjustment Single adjustable

D,Chassis Introduction

Traveling

Performance

Parameters

 Chassis model ISUZU NKR77LLPACJAY (EN III)
Persons 2
Axle base (mm) 3360
Wheel base (front/rear)(mm) 1504/1425
Driving mode 4×2
Front suspension(mm) 1015
Rear suspension(mm) 2100
Approaching angle(º) 24
Departure angle(º) 12
Max. Grade ability(%) 28
Min. Turning diameter(mm) 13600
Min. Ground clearance(mm) 190
Engine Engine model 4KH1-TC
Rated power(kw/r/min) 96/3400
Torque(N,m/r/min) 280/1700

GKS-22Q Four Section Telescoping Work Platform ISUZU Chassis 4x2 Drive
