Telescopic Fully Hydraulic Truck Crane With 110s Lift Boom Extension Time
Telescopic Fully Hydraulic Truck Crane With 110s Lift Boom Extension Time
Telescopic Fully Hydraulic Truck Crane With 110s Lift Boom Extension Time
Telescopic Fully Hydraulic Truck Crane With 110s Lift Boom Extension Time
Specifications
Brand Name :
KaiFan
Model Number :
KFM5323JQZ25G5
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Altitude :
0-4500m
Temperature :
-25℃--+45℃
Elevation of boom :
-2~80°
Rated power :
199KW
Max. Torque :
1100n.m
Departure angle :
11°
Description

Extension time of the lift boom 110s 25T Truck Mounted Crane Fully Hydraulic Telescopic Crane

I. Equipments

1. WUYUE TAZ5323J

2. Main boom assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Windlass assembly

6. Slewing system

7. Electric system

8. Hydraulic system

9. Outrigger

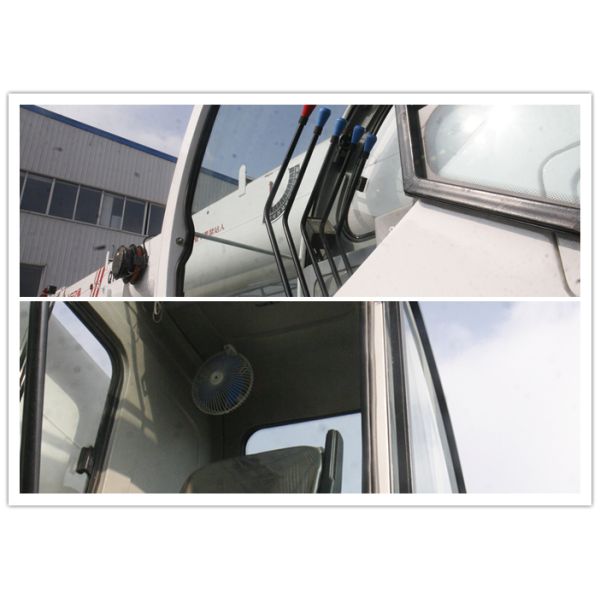

10. Superstructure control system

11. Chassis control system

II. Condition

1,Altitude: 0-4500m

2,Temperature: -25℃--+45℃

3,Allowed working condition: solid, stable land, the vehicle should be horizontal

4,Wind force: ≤6 degree

III. Parameters

Items Unit Value
Working Speed Extension time of the lift boom s 110
Lifting time of the lift boom s 60
Turning speed r/min 0～2
Weight Parameters The whole weight kg 31670
Load of the front axle kg 6850
Load of the rear axle (duel axle) kg 24820
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 30
Min. Turning radius m 11
Min. Ground clearance m 0.27
Approaching angle ° 16
Departure angle ° 11

Dimension Parameters

 External dimension(length×width×height) mm 12790×2500×3460
Vertical span of outrigger m 5.35
Horizontal span of outrigger m 6.1
Length of main boom m 10.3~39.5
Length of vice boom m 8.3
Elevation of boom ° -2~80
Chassis Model — TAZ5323J
Engine model — WP10.270
Rated power/speed kW/(r/min) 199/2200
Max. Torque/rotate speed N.m/(r/min) 1100/1200-1600
