Hot Water Commercial Air Source Heat Pump Copeland For Factory Or Building
Hot Water Commercial Air Source Heat Pump Copeland For Factory Or Building
Specifications
Brand Name :
Yushen
Model Number :
SDWA-014Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
hot water Heat Pump
Compressor capacity :
5HP
COP :
4.12
Function :
heating
Compressor brand :
Copeland
Refrigerant :
R410A/R22/R407C/R134A/ R410A
Description

5HP Commercial Hot water Unit Air Source Heat Pump for factory or building

Quick details

  • Commercial hot water unit could work as outdoor unit for air conditioning, radiator, floor oils of house, office building, apartment, shopping mall.
  • It is 40% energy-saving than electrical AC unit in heating, more energy-saving than coal boiler and other furnaces
  • Water circulation in the system, safe and comfortable than other air coditioner
  • The hot water could be used for factory processing line, factory domitory bathroom or heating
  • It could work even outside temperature is up to +45C or low to -25C

Model Parameter

Model SDWA-014Ycode name.pdf
Compressor capacity 5HP
Function Heat
Electricity 220V 1N-50Hz
Working conditions ℃ -25~+43
Nominal heating capacity KW 14
COP KW/KW 4.12
Nominal input power KW 3.9
Max. running currency A 32
Highest water temperature ℃ 60
Compressor quantity Set 1
Refrigerant/charging quantity kg / R22/3.7
Air blow type / Top
Water pipe diameter / 1''
Rating flow m³/h 2.8
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 730×700×1020
Weight kg 180

Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Yushen Products Advantages

  • Larger application range ,even environmental temperature is low to -25℃ or high to +45 ℃(from -13℉ to 113 ℉)
  • 100% finished products testing
  • Reliable performance,yushen air-source heat pump has longer heating time and shorter defrosting time
  • Quality Components such as Copeland compressor, Danfoss valves
  • 35% more powerful than other productsy
  • High COP, no capacity decay even under low environmental temperature
  • fast delivery time , standard models productivity is 10 sets per day

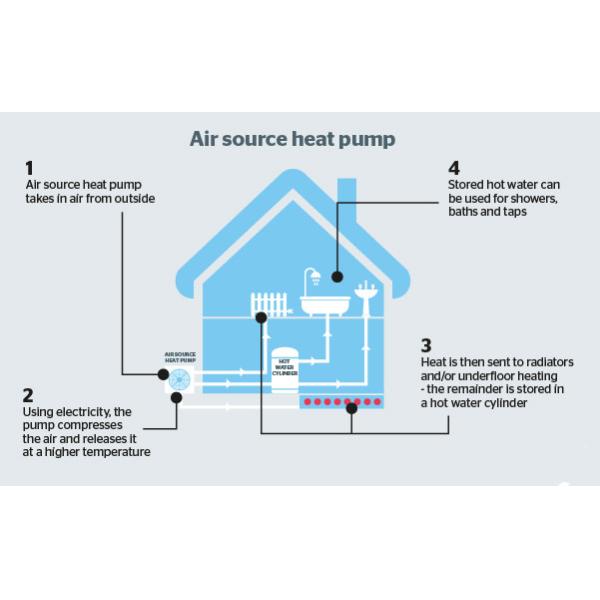

How air source heat pump work

  • Hot Water Commercial Air Source Heat Pump Copeland For Factory Or Building

catalogs-email.pdf
