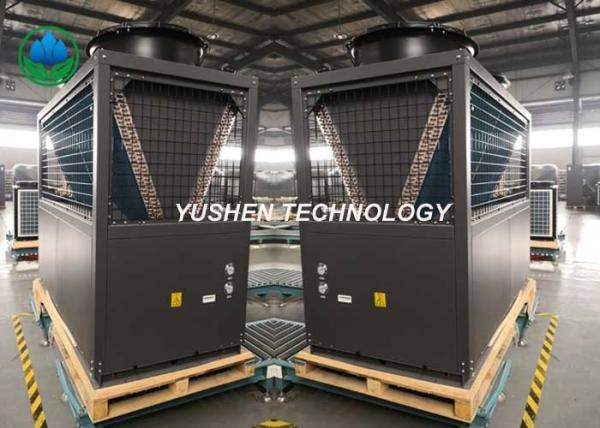

380 V Air To Water Heat Pump Alternating Current Electricity For Hot Water
380 V Air To Water Heat Pump Alternating Current Electricity For Hot Water
Specifications
Brand Name :
Yushen
Model Number :
SDWA-017/034/075YB
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
water heater ASHP
Compressor capacity :
75KW
Refrigerant :
R410A/R22/R407C/R134A/ R410A
Compressor quantity :
2
COP :
4
Weight :
830KG
Description

380V Alternating Current Electricity Air to Water Heat Pump For Hot Water 45C~55C

Features

  • 40% energy saving than electrical boiler, no need to worry about cloudy day or bad weather
  • water system is separated from water and electricity, and has no safety hidden danger.
  • Two speed fan motor: Further improve unit operation under high ambient temperature.
  • Thermal expansion valve regulates the flow of refrigerant precisely.
  • Air exchanger(Fins-coil) with hydrophilic coating.
  • Heat exchanger: Water side equiped with tube in tube heat exchanger.
  • With hot water return control, avoid to drain off much cold water.
  • Can set the operating time
  • Unit runs or stop automatically according to water temperature.
  • Automatic defrosting.
  • Automatic prevent freezing in the winter.
  • Failure diagnosing function.
  • The hot water can completely replace the hot water boiler and save the investment of the hot water boiler

Yushen Product advantages

1. Jet boosting technology, the heat of -25 °C is not attenuated, and the cooling capacity of 43 °C is not attenuated.
2. Intelligent defrosting, frost defrosting, no frost heating, maximizing heating energy efficiency.
3. Environmentally friendly refrigerant, does not destroy the ozone layer;
4. Energy saving 35% compared with similar products

Model data

Model SDWA-017Y SDWA-034YB SDWA-075YB
Compressor capacity 6HP 10HP 25HP
Function Heat Heat Heat
Electricity 380V 3N-50Hz 380V 3N-50Hz 380V 3N-50Hz
Working conditions ℃ -25~+43 -25~+43 -25~+43
Nominal heating capacity KW 17 34 75
COP KW/KW 4.1 4 4
Nominal input power KW 4.14 8.25 20.5
Max. running currency A 11.5 23 60
Highest water temperature ℃ 60 60 60
Compressor quantity Set 1 2 2
Refrigerant/charging quantity kg / R22/4.8 R22/3.7*2 R22/10*2
Air blow type / Top Top Top
Water pipe diameter / 1 1/2'' 1 1/2'' 50
Rating flow m³/h 3 6 12
Water side pressure loss kPa ≤45 ≤45 ≤45
Noise level dB(A) 62 62 62
Overall dimensions(L×W×H) mm 860×820×1080 1530×750×1370 2100×1100×2080
Weight kg 197 320 830
Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Application

It is especially suitable for urban prosperous areas or areas with tight water sources;

if it is not allowed to install boilers and it is not easy to install cooling towers, this product is the best choice;

it can also be used for high environmental noise requirements and old building air conditioning renovation projects, but also for the process.
