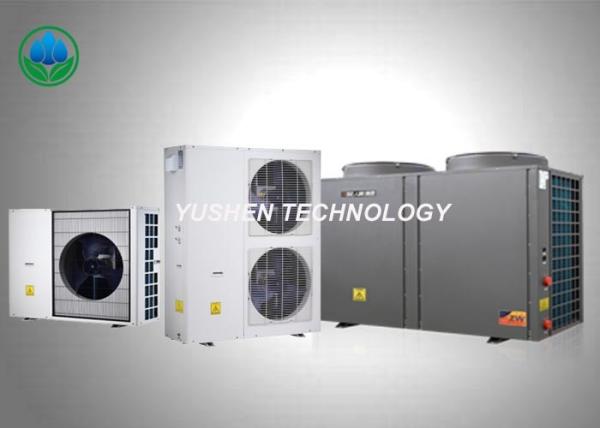

Rapid Defrosting All Climate Heat Pump ASHP 220 V DC Electricity For Apartment
Rapid Defrosting All Climate Heat Pump ASHP 220 V DC Electricity For Apartment
Specifications
Brand Name :
Yushen
Model Number :
SLNA-007UM , SLNA(B)-009UP, SLNA-028U
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Alll climate Air Source Heat Pump
Rated temeprature of water in winter :
50C
Rated temperature in summer :
7C
Refrigerant :
r410a r407c
Suitable working conditions :
-25C~+45C
Power source :
220V-3N-50hz
Description

All Climate Heat Pump ASHP 220V DC Electricity For Apartment and House

Features

1. Copeland jet boosting technology compressor, heat is more powerful in low temperature environment, heating is not attenuated
2. Large-area hydrophilic aluminum foil heat exchanger with large distance, uniform wind speed and less defrosting
3. Multi-throttle channel design, precise control of cooling capacity, lower operating costs
4. Intelligent automatic cream, rapid defrosting

Yushen Products Advantages

1. Yushen ASHP could work in untra low temeprature cold climate -25C

2. More than 6 million M2 heating area project cases all over the different latitude area.

3. long heating time and less defrosting time,35% more powerful than other products

4.Automatic testing line,100% finished products testing

Parameters

code name.pdf

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Model SLNA-007UM SLNA(B)-009U(P) SLNA-028U
Compressor capacity 2HP 3HP 9HP
Function Heating and Cooling Heating and Cooling Heating and Cooling
Electricity 220V-1N-50Hz 220V-1N-50Hz 220V-1N-50Hz
Working conditions ℃ -25~～+45 -25~～+45 -25~～+45
Data Heata Nominal capacity KW 3.9 5.8 18.4
Input power KW 1.69 2.52 7.8
COP / 2.3 2.3 2.3
Heating IPLV(H) 2.53 2.53 2.7
Coolb Nominal capacity KW 4.4 6.5 22
Input power KW 1.69 2.6 8.6
COP / 2.6 2.5 2.5
Cooling IPLV(C) 2.7 2.7 2.7
A7W35c KW/COP 6.4/4.1 9.2/4.10 28.0/4.1
A2W35 KW/COP 5.8/3.6 8.0/3.6 22.4/3.60
A-7W35 KW/COP 4.3/2.7 5.9/2.7 19/3.0
A-15W55 KW/COP 3.4/1.9 5.0/1.90 16.8 /1.94
A-20W45 KW/COP 2.9/1.94 4.5/1.95 15.4/2.02
Max. running currency A 13.2 18 60
Compressor quantity set 1 1 2
Refrigerant/charging quantity kg / R404A/2.2 R404A/2.2 R22/3.7*2
Air blow type / Side Side Top
Water pipe diameter inch G1〞 G1〞 G1.5〞
Rating flow m³/h 1.6 1.6 5
Water side pressure loss kPa ≤35 ≤35 ≤45
Noise level dB(A) 59 59 62
Overall dimensions(L×W×H) mm 1087×435×901 1087×435×901 1530×750×1370
Weight kg 70 70 300

Rapid Defrosting All Climate Heat Pump ASHP 220 V DC Electricity For Apartment
