Office Central Air Heat Pump Radiator Heating 2100 × 1100 × 2080 Mm Overall Size
Office Central Air Heat Pump Radiator Heating 2100 × 1100 × 2080 Mm Overall Size
Specifications
Brand Name :
Yushen
Model Number :
SDNA-075Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Building office Air Source Heat Pump system
Compressor capacity :
25HP per sets
Function :
radiator heating
Service area :
12050M2
Building floor :
9 floors
Quantity :
9 sets
Description

Clean Energy Heating System Air Souce Heat Pump for Central Heating of Office

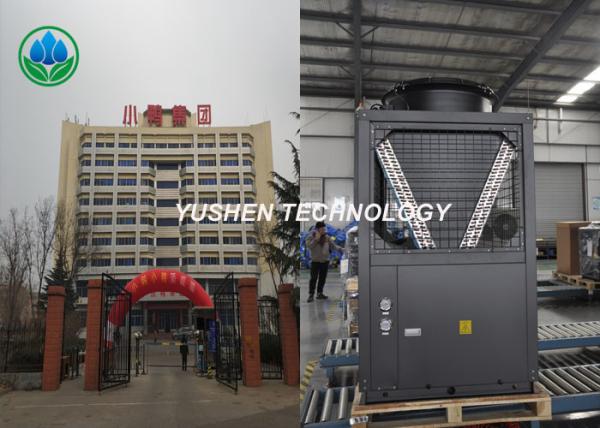

Project Introduction

Location: E 117 N 36.6

Floor quantity: 7

Building area: 12050M2

System design: ultra low temperature air source heat pump+radiator

Quantity of air-source heat pump: 9 set

The office building area of this project is 13,744 square meters and the heating area is 12050 square meters.
The building has 9 floors, the exterior wall has no insulation, and the windows have a single layer of glass.
The air source heat pump system was officially put into use in 2017, and the entire heating season is stable and reliable and efficient.
According to the coal heating calculation previously used by the user, it can save 287 tons of raw coal, reduce SO2 emissions by about 4.9 tons, reduce CO2 emissions by 516 tons per month, reduce coal ash, and discharge coal slag by about 86 tons.

Air source heat pump Information

  • Air source heat pump is 40% energy-saving than that of electric AC unit in heating.
  • high automation, easy operation
  • Water circulate inside the system, safe and comfortable
  • It could be connected with different enders, e.g. fan coil, radiator, floor heating, convenient and high-efficient

Model Parameter

Model SDNA-075Ycode name.pdf
Compressor capacity 25HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 44.5
Input power KW 18.3
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 75.0/4.2
A2W35 KW/COP 62.5/3.20
A-7W35 KW/COP 52.5/3.0
A-15W55 KW/COP 45.5 /1.97
A-20W45 KW/COP 37.4/2.04
Max. running currency A 56
Compressor quantity set 2
Refrigerant/charging quantity kg / R22/10*2
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 730

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Yushen Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • 35% more powerful than other products, long heating time and less defrosting time
  • No capacity decay under low temperature, keep high COP
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testingOffice Central Air Heat Pump Radiator Heating 2100 × 1100 × 2080 Mm Overall Size
