Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Specifications
Certification :
CE/ROHS
Slide length :
OEM
Payment Terms :
TT/LC/Alipay/Wechat
Weightcapacity :
3-5 tons
Delivery Time :
15-30
Usage :
Hotel, Resort, Water Park, School, Campsite，Water park /indoor commercial amusement park/ adventure park / resort hotel/ outdoor public playground/ city park
Color :
Rainbow (multi-colored)
Price :
258 USD / Meter
Packaging Details :
Foam and wheels protection
Warranty :
10 years
Supply Ability :
1000 set /month
Type :
Large-Scale Water Slide
Material :
Metal+Fiberglass+Plastic+Stainless Steel+PVC
Place of Origin :
China
MOQ :
1
Dimensions :
1M Width
Brand Name :
OEM
Description
Big Horn Slide for Sale | 14.2–18m 4-Person Raft Water Slide | FRP 304SS | 12-Year Warranty

Meta Description: Commercial Big Horn Slide (giant horn funnel) with 14.2–18.0m platform, 4-rider raft, FRP shell + 304 stainless steel Ø273×3mm columns, Ashland gel coat, 12-year structural warranty. Custom height/width/color by budget. Free 3D layout from your DWG.

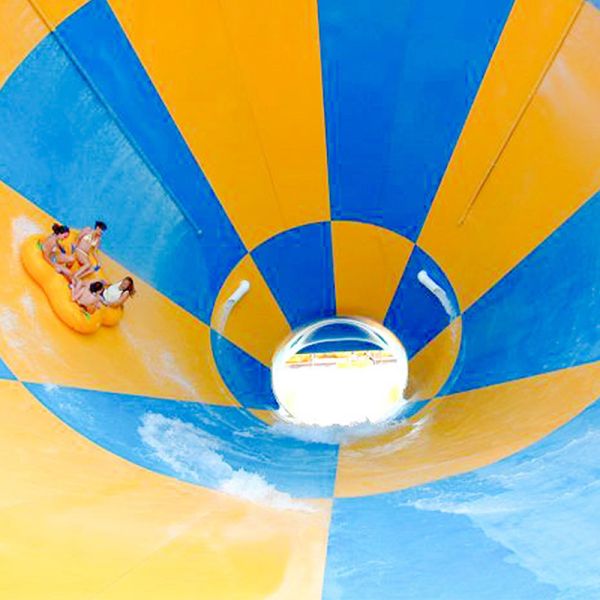

The Ride Experience – “Swallowed by the Horn”

Four guests board a clover-shaped inflatable raft at the 14.2m, 16m, or 18m platform. A short enclosed dark drop builds speed to 12–16 m/s, then the raft erupts into the 18m-diameter fiberglass horn, swinging side-to-side on centrifugal force — weightless at the crest, screaming at the wall, then spiraling down the throat into the splash pool.

It is the signature group thrill of any water park: faster-feeling than a body slide, safer than a freefall, and photographed by every guest in line. Hourly throughput 360–480 riders/lane makes it a payback workhorse, not just a landmark.

Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty

Product Specifications

Feature Details
Product Name Big Horn Slide (Giant Horn / Tornado Funnel Raft Slide)
Platform Height 14.2m / 16.0m / 18.0m (custom 12–20m on request)
Sliding Style Raft slide — 4 persons per raft, inflatable clover tube, body+raft combo compatible
Horn Diameter 14–18 m (standard 18 m)
Inner Slide Width 2.6–2.73 m (custom 2.4–3.0 m)
Total Footprint ≈ 45×42m to 58×38m (depends on height & exit layout)
Water Flow 600–960 m³/h
Power 74–90 kW (pump group, not included in slide EXW price)
Capacity 360–480 persons/hour
Slide Material Hand-laid FRP (fiberglass) 8–12mm, Ashland/DSM marine gel coat
Structure National Standard 304 Stainless Steel Ø273×3mm columns, SUS304 bolts, SUS304 safety grates
Sub-frame Hot-dip galvanized Q235 (or full 304SS at upgrade cost)
Warranty 12 years structural on FRP shell + 304SS frame
Certificates CE / ISO9001 / EN 1069 commissioning checklist
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Why 12 Years? Material Breakdown

FRP shell: Multi-layer hand-laid fiberglass, 8–12mm, ISO-NPG / Ashland gel coat → anti-UV, anti-chlorine, no peel, no rust.

304SS Ø273×3mm columns: Zero corrosion in humid pool air; 3mm wall takes cantilever horn load without deflection.

SUS304 bolts & grates: No galvanic rust, no annual repaint.

Result: 12-year written structural warranty; 15+ year service life with quarterly rinse and annual bolt-torque check.

Customization — Width / Color / Height / Budget

Height: 14.2m (tight site) → 18.0m (max thrill). Rule: +1m height ≈ +8–12% steel + foundation cost.

Width: Standard 2.73m; widen to 3.0m for 4 large adults, or narrow to 2.4m for smaller horn (cost drops ~6–9%).

Color: Any RAL; dual-tone horn, rainbow stripe, logo embedded in gel coat (no stickers).

Theme: Ocean / Space / Volcano / Candy — entrance tower and horn lip fully themed.

Height-Based Budget Estimate (EXW China, slide only, no pump room)
Height Indicative EXW Price (USD) Notes
14.2m $230,000 – $280,000 Smallest footprint, lower tower steel
16.0m $290,000 – $340,000 Most common export spec
18.0m $350,000 – $420,000 Max swing amplitude, 18m horn

Price moves with width, 304SS vs galvanized sub-frame, theme complexity, and freight cube. Send budget → we reverse-engineer max height/width.

Installation Guidance & Support

Engineer fee: ¥1,000 (≈ $140) per engineer per day on-site.

Buyer's Responsibilities (Engineer Visit):
  • Visa invitation support, round-trip int’l air tickets, local hotel + meals, daily transport, crane/lifting gear.
Buyer's Responsibilities (Civil Works):
  • Pool basin, splash channel, concrete foundation & anchor bolts per our DWG
  • Electrical room, 380V/220V 3-phase supply, grounding
  • Steel-reinforced concrete platforms if required
  • Water circulation, filtration, drainage
  • Finishing (tiles, deck, landscaping)
Seller's Responsibilities:
  • Supply all FRP modules, 304SS columns/bolts/grate, rafts, hardware, spare kit 2%
  • Full CAD layout (DWG/CDR), foundation plan, water-flow & electrical schematic
  • 12-year structural warranty, lifetime spare parts, remote Zoom/WhatsApp guidance free
  • Optional on-site engineer (paid per above) for alignment, torque, water test, staff training

Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty

Who & Where

Riders: Teens + adults (≥1.4m, 40–85kg per person), groups of 4 = core social media asset

Venues: Large water parks (anchor ride), resort aqua zones, FEC with outdoor pool, municipal summer park

SEO Keyword Block (high-frequency, embedded + backend tags)

Primary: big horn slide, giant horn water slide, 4 person raft water slide, 18m platform water slide, FRP horn slide manufacturer, 304 stainless steel water slide

Long-tail: how much does a 14.2m big horn slide cost, custom width big horn raft slide, Ashland gel coat fiberglass horn slide, water slide installation engineer 1000 cny per day, EN 1069 commissioning water slide, 12 year warranty commercial water slide

LSI: tornado funnel slide, clover raft water ride, water park anchor attraction, Schneider PLC pump control, hot dip galvanized vs 304SS slide frame

FAQ (rich-snippet ready)
Q: Is 14.2m safe for family parks?
A: Yes — slower entry speed than 18m, still 4-person raft, still horn swing. Many resort parks choose 14.2m to cut tower cost.
Q: Can I get 3-person or 5-person raft?
A: Standard is 4. Raft size scales with inner width (2.4–3.0m). Tell us target rider weight and we size the raft.
Q: Does price include pump and filtration?
A: No. EXW quote covers slide + steel + rafts. Pump room (90kW, 960m³/h) quoted separately or as add-on BOM.

Send your site DWG + budget + target height to service → receive free 3D layout + itemized BOM



Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty

Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Installation Support: The seller provides all necessary installation drawings and manuals, with optional on-site engineering support available for an additional fee.
Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty Commercial Water Slide Giant Horn Raft Water Slide 4-Person Raft FRP 304 Stainless Steel 12-Year Warranty
Frequently Asked Questions
About Our Company & Experience
Q: How long has AquaFun Factory been in business?
A: AquaFun Factory was established in 2016. With over 8 years of dedicated experience, we have grown into a trusted manufacturer and supplier of high-quality water park attractions, completing more than 100 successful projects across the globe.
Q: What makes your products and services stand out?
A: We differentiate ourselves through a full-service, client-centric approach. Our core strengths include:
  • Full Customization: We don't just sell products; we bring your unique vision to life, tailoring every aspect to your theme, space, and budget.
  • End-to-End Service: We provide comprehensive support, from initial site advice and CAD drawings to on-site expert installation guidance.
  • Proven Quality & Safety: We use premium materials like 304 stainless steel and certified FRP, ensuring durability, safety, and long-term value.
About Our Products & Customization
Q: What materials do you primarily use in your constructions?
A: The structural framework of our slides and play structures is primarily built with high-grade 304 Stainless Steel, known for its exceptional corrosion resistance and strength. The sliding surfaces and thematic elements are crafted from high-gloss, UV-resistant Fiber Reinforced Plastic (FRP), ensuring a smooth, safe, and vibrant experience.
Q: Can you create a custom design based on our specific theme and space?
A: Absolutely. Private customization is our specialty. Our engineering and design team will work closely with you to develop a one-of-a-kind water park attraction that perfectly fits your available space, target audience, and desired theme, whether it's adventurous, fantasy, or pirate-inspired.
About Our Services & Project Process
Q: What kind of support do you offer during the planning phase?
A: We provide extensive site assistance services. This includes professional advice on optimal layout and configuration, detailed CAD drawings for precise planning, and a customized project budget to help you make informed financial decisions.
Q: Do you provide help with installation?
A: Yes. We offer on-site expert guidance to assist your local team with the installation process. Our experts ensure that the assembly follows our stringent engineering standards, guaranteeing the safety and optimal performance of the equipment.
About Orders & Logistics
Q: What is your typical lead time?
A: Lead times vary depending on the scale and complexity of the custom project. After a detailed discussion of your requirements, we will provide a clear project timeline, from design approval to production and shipping.
Q: What are your shipping and payment terms?
A: We offer flexible shipping solutions globally and will work with you to determine the most efficient method. Our payment terms are structured to be fair and transparent, typically involving a deposit and balance payment, which will be clearly outlined in our proposal.
