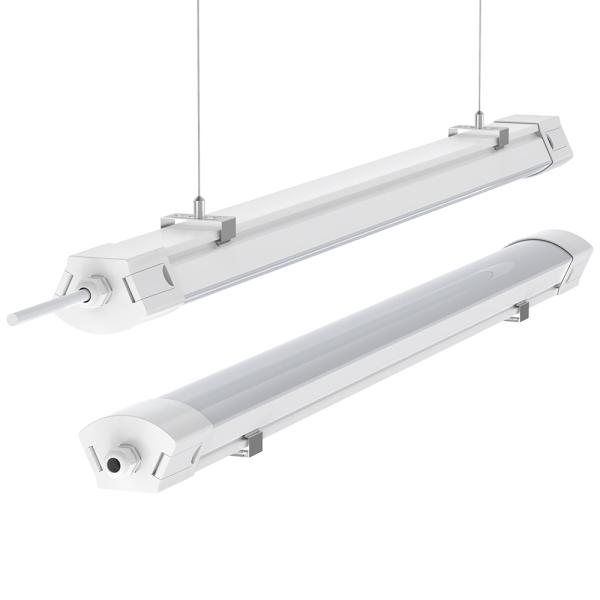

IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
Specifications
Model Number :
HS-TPL-HXX
Place of Origin :
China
MOQ :
60
Luminous Efficiency :
150-195lm/W
Color Temperature :
3000K 4000K 5000K 6000K
Input Voltage :
AC 220V( ± 10%)
Lifespan :
50000 Hours
Beam Angle :
120 Degree
Material :
94V0 Fireproof PC Housing+Extruded 6063 Aluminum Board
Length :
600mm/1200mm/1350mm/1500mm
IP Rating :
IP65
IK Rating :
IK08
Work Temperature :
-20℃~+50℃
Power :
18W/35W/45W
Lumen Efficiency :
180lm/W (Milky), 190lm/W (Semi-clear), 195lm/W (Transparent)
Color Rendering Index :
>80
Power Factor :
>0.9
Dimming Type :
Non Dimmable/Triac Dimmable/0-10V/DALI/Zigbee 3.0/Blue Tooth
Description

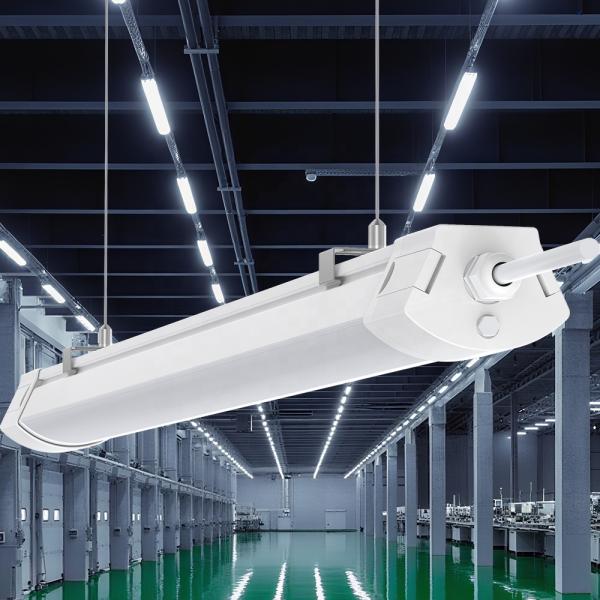

Super Bright IP65 LED Batten Lights

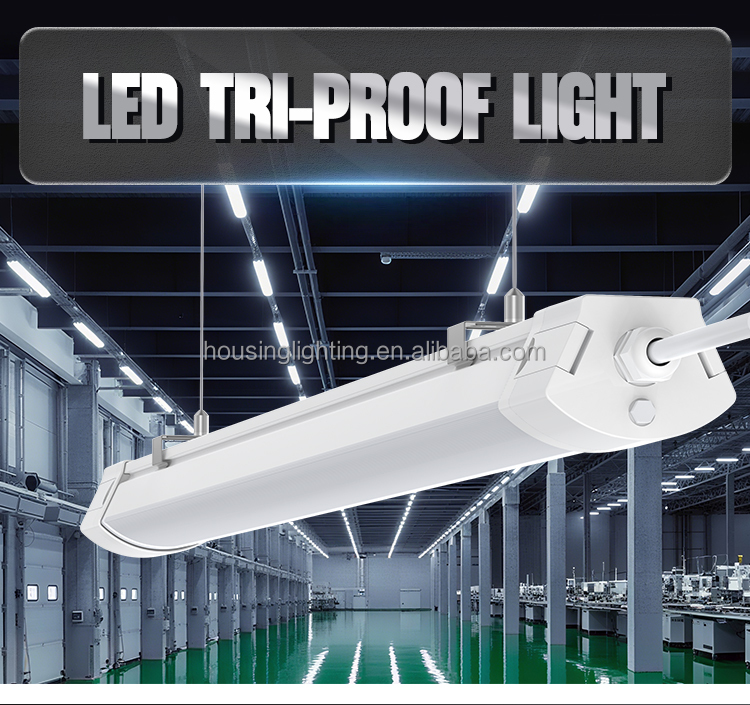

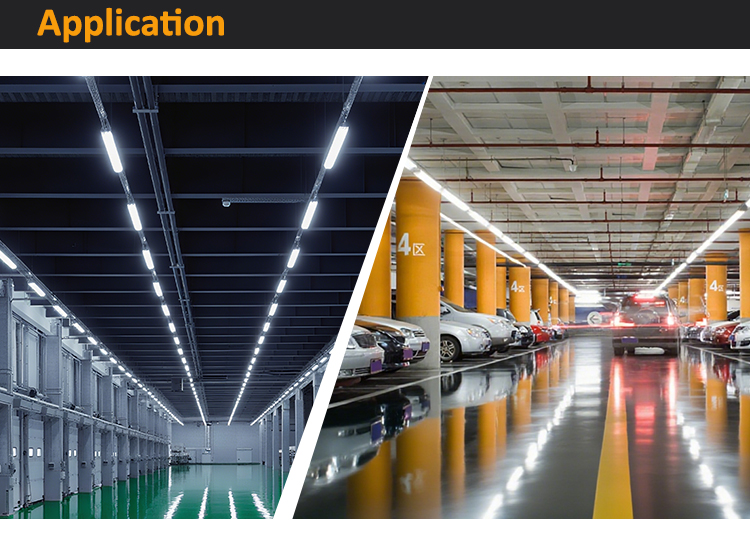

High-performance linear tri-proof LED lighting solutions for garage ceilings and industrial applications, available in 18W, 36W, 40W, and 45W power ratings with 2FT, 4FT, and 5FT lengths.
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
Technical Specifications
Model NO. HS-TPL-H60 HS-TPL-H120 HS-TPL-H135 HS-TPL-H150

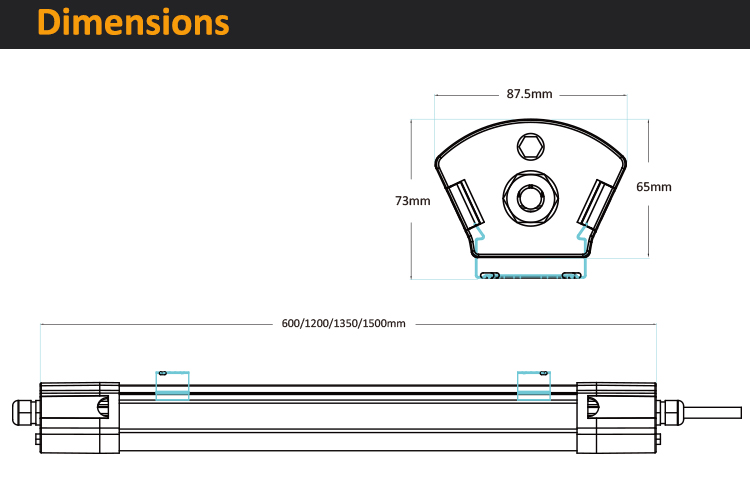

Size (L*W*H) 600*87*65mm 1200*87*65mm 1350*87*65mm 1500*87*65mm
Power 18W 35W 35W 45W
Lumen Efficiency Milky: 180lm/W
Semi-clear: 190lm/W
Transparent: 195lm/W		 6000LM 9000LM
Color Temperature 3000K/4000K/5000K/6000K/3000K~6000K CCT Changeable
CRI >80
PF >0.9
SDCM SDCM<5
Lifespan L80B10=100,000 Hours @ 25℃

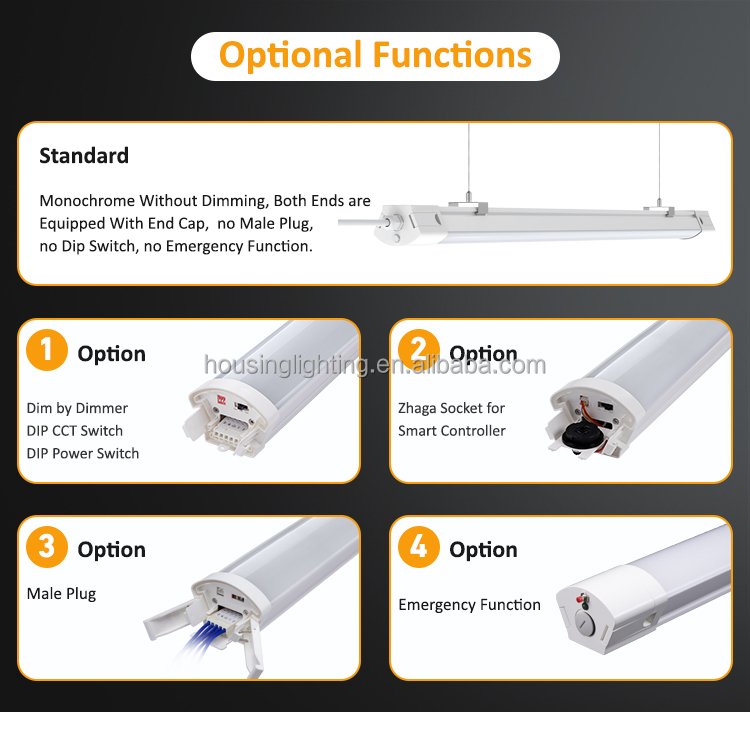

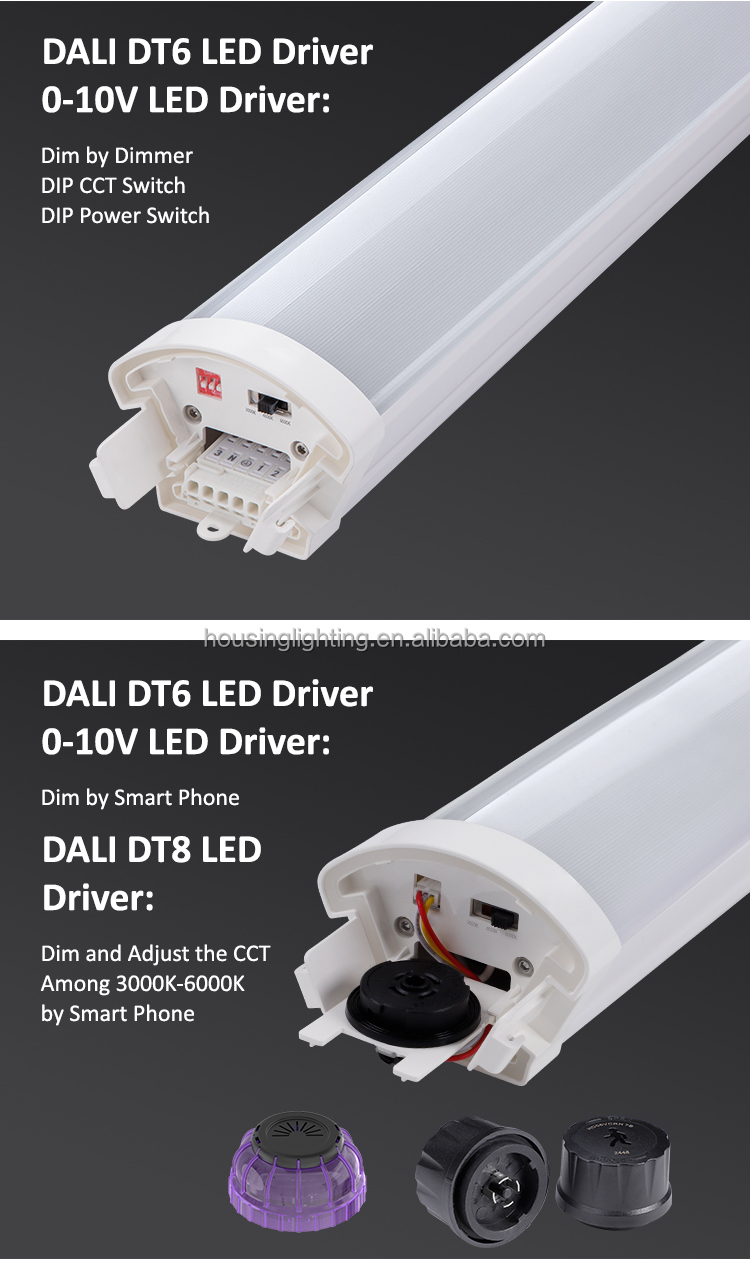

Dimming Type Non Dimmable/Triac Dimmable/ 0-10V/ DALI/Zigbee 3.0/Blue Tooth
IP/IK Rating IP65, IK08
Working Temp -20℃~+50℃
Certificate CE RoHS
Warranty 5 Years
Key Features
  • IP65 waterproof rating for dust and water resistance
  • IK08 impact resistance for durable performance
  • Multiple dimming options including 0-10V, DALI, and Bluetooth
  • High lumen efficiency up to 195lm/W
  • Long lifespan of 100,000 hours
  • Wide operating temperature range (-20℃ to +50℃)
  • Available with sensor integration
Product Gallery
IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use IP65 Waterproof Triproof LED Batten Light with 50000 Hours Lifespan and Dimmable Function for Commercial Use
Frequently Asked Questions
Do you support customization?
Yes, we support customized product size, logo and packaging.
What's your delivery period?
Fast Delivery, Samples: 2 working days. Mass order: 7-10 working days.
Can I get a lower price if I order bigger quantities?
Yes, the bigger your order is, the cheaper price you will get.
What is your warranty for the products?
We offer 5 years warranty, if product doesn't work in warranty period, we can ship new replacement.
Are you manufacturer?
Yes, our factory is in Shenzhen, Guangdong Province. Welcome your visit and check. OEM/ODM is available.
