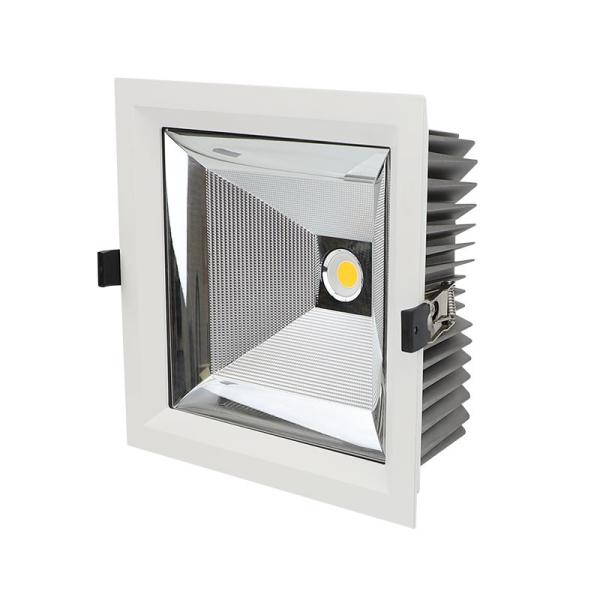

IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
IP65 Aluminum COB Square LED Downlight with 10W 20W 30W 40W Power Options
Specifications
Price :
Negotiation
Power :
10W/20W/30W/40W
Luminous :
1000LM/2000LM/3000LM/4000LM
Product Name :
Square LED Downlight
Material :
Aluminum
Actual Size :
110*110*60MM/130*130*70MM/165*165*80MM/225*225*90MM
Color Temp :
2700-6500K
Light Color :
Warm White/White/Daylight
Cutout :
95MM/115MM/150MM/205MM
Beam angle :
60°
Lifespan :
>50,000 Hours
Brand Name :
HS
Certification :
CE
MOQ :
100
Place of Origin :
China
CRI :
>80
Description
COB Square LED Downlight IP65 External Current LED Driver 10W 20W 30W 40W
Product Overview

Introducing our LED Downlight, the perfect recessed lighting fixture for your space. This LED spotlight fixture provides warm white, white, and daylight lighting with a 60° beam angle. Available in multiple power options including 10W, 20W, 30W, and 40W, this versatile and energy-efficient lighting solution features a slim design for easy installation in any environment.

Key Features
  • Constructed with 6063 Aluminum, tempered glass cover, and aluminum reflective cup for long lifespan
  • Professional optical design eliminates shadows and light spots
  • Ideal for factories and supermarkets
  • High-quality COB LED compliant with LM-80 standards with warranted lifespan
Technical Specifications
Model NO HS-DL-D-1-ND HS-DL-D-2-ND HS-DL-D-3-ND HS-DL-D-4-ND
Actual Size 110*110*60mm 130*130*70mm 165*165*80mm 225*225*90mm
Cutout 95mm 115mm 150mm 205mm
Power 10W 20W 30W 40W
Luminous (lm) 1000lm 2000lm 3000lm 4000lm
Additional Specifications:
Color Temperature: 2700-6500K
Lighting Effect: 100lm/W
Beam Angle: 60°
CRI: 80-85Ra
Power Factor: >0.9
Input Voltage: AC200-240V, 50/60Hz
Operating Temperature: -20 to 50℃
IP Rating: IP65
Main Material: Aluminum
Frame Color: White
Warranty: 5 Years
Certification: CE, RoHS
Applications

Our integrated LED Downlight solution, crafted from high-quality aluminum, is perfect for recessed lighting applications. With a 60° beam angle and CRI higher than 80, it delivers accurate color representation for bright, comfortable, and safe lighting environments. Ideal for both residential and commercial use, this reliable and cost-effective lighting solution is manufactured in China.

Customization Options

Designed for general lighting applications in offices, supermarkets, shops, schools, hotels, and various public areas including stairways, lobbies, reception areas, and corridors.

Support & Services

We provide comprehensive technical support and services for our LED Downlight products. Our team of highly trained and certified technicians is available to assist with installation, operation, and maintenance.

Support options include online technical assistance via our website and email, telephone support, and on-site technical assistance for installation, repair, and troubleshooting.

We offer a 5-year warranty on nearly all our LED downlights. Any non-artificial damaged parts within the warranty period will be replaced free of charge, including shipment costs.
