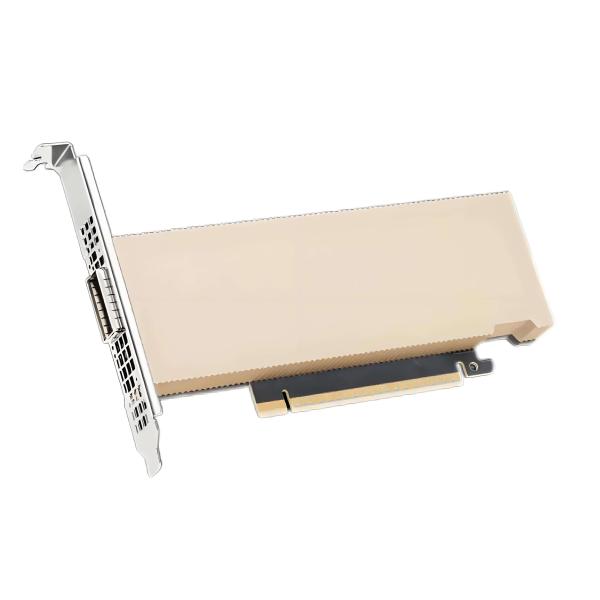

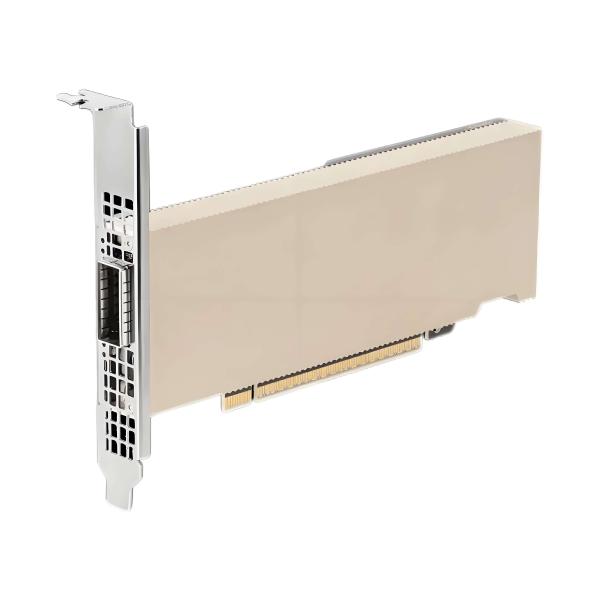

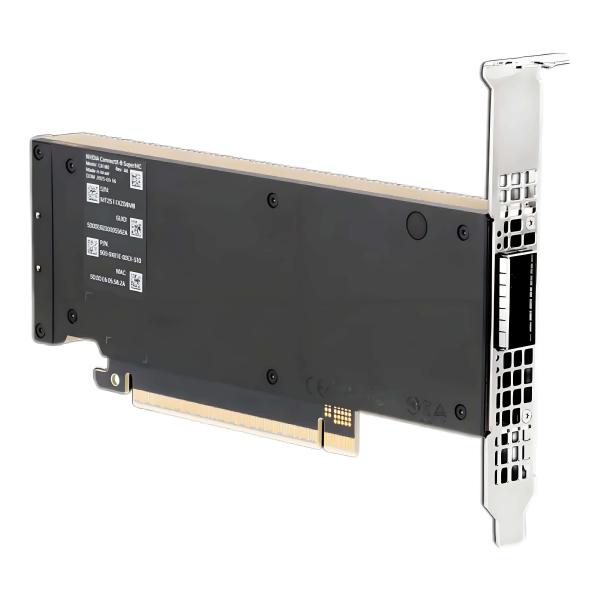

800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card
Specifications
Brand Name :
Comelink
Model Number :
ConnectX-8 SuperNIC
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 2500 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Packaging Details :
Carton
Frequency Range :
850~1310nm
Data Transmission Rate :
XDR/NDR/HDR/HDR100/EDR/SDR 400/200/100 Gb/s
Connector Type :
DIN
Network Connector Type :
Single-port OSFP
Host Interface :
PCIe 6.0 x16
Technology :
RDMA
Extension Options :
Down Stream Port(DSP)
Encryption and Secure Boot :
Support
Operational Temperature :
0°C to 55°C
Supported operating systems :
Linux, Windows
Description

The ConnectX-8 SuperNIC™ is optimized to supercharge hyperscale AI computing workloads. With support for both InfiniBand and Ethernet networking at up to 800 gigabit per second (Gb/s), ConnectX-8 SuperNIC delivers extremely fast, efficient network connectivity, significantly enhancing system performance for AI factories and cloud data center environments.Providing end to-end 800Gb/s connectivity. These platforms offer the robustness, feature sets, and scalability required for trillion-parameter GPU computing and generative AI applications. With enhanced power efficiency, ConnectX-8 SuperNICs support the creation of sustainable AI data centers operating hundreds of thousands of GPUs, ensuring a future-ready infrastructure for AI advancements.

Feature:

InfiniBand

> Supports 200/100/50G PAM4

> Speeds:

> 1 port x 800/400/ 200/100Gb/s

> 2 ports x 400/200/ 100Gb/s

> Max bandwidth: 800Gb/s

> IBTA v1.7-compliant

> 16 million I/O channels

> 256 to 4,000 byte MTU, 2GB messages

Ethernet

> Supports 100/50G PAM4 and 25/10G NRZ

> Speeds:

> 1 port x 400/200/100Gb/s

> 2 ports x 400/200/100/50/25Gb/s

> Supports up to 8 split ports

> Max bandwidth: 800Gb/s

Specificiation:

Supported network protocols
> InfiniBand
> Ethernet
Maximum total bandwidth
800Gb/s
InfiniBand speeds
800/400/200/100Gb/s
Ethernet speeds
400/200/100/50/25Gb/s
Host interface
PCIe Gen6: up to 48 lanes
Portfolio
> PCIe HHHL 1P x OSFP
> PCIe HHHL 2P x QSFP112
> Dual ConnectX-8 Mezzanine
Network Connector Type
Single-port OSFP
Adapter Card Size
HHHL, 2.69 in. x 6.58 in. (68.50mm x 168.40mm)
Temperature
Operational: 0°C to 55°C
Storage: -40°C to 70°C
Supported operating systems
Linux, Windows

Application:

800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card

800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card

Testing:

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

800G Adapter Card Mellanox ConnectX-8 SuperNIC for Ai Server Dual Port InfiniBand Network Card

Unlock Seamless Network Performance with Compatibility Testing
KEXINT through comprehensive testing procedures, we ensure seamless compatibility with mainstream servers, guaranteeing the long-term reliability and stability of the entire network infrastructure.
