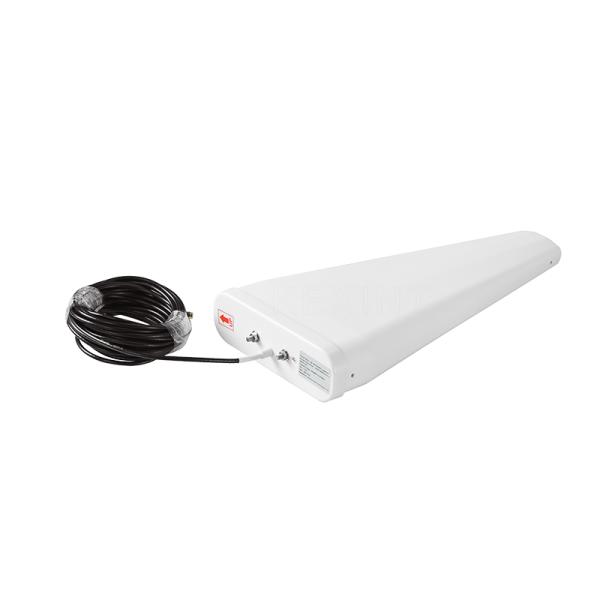

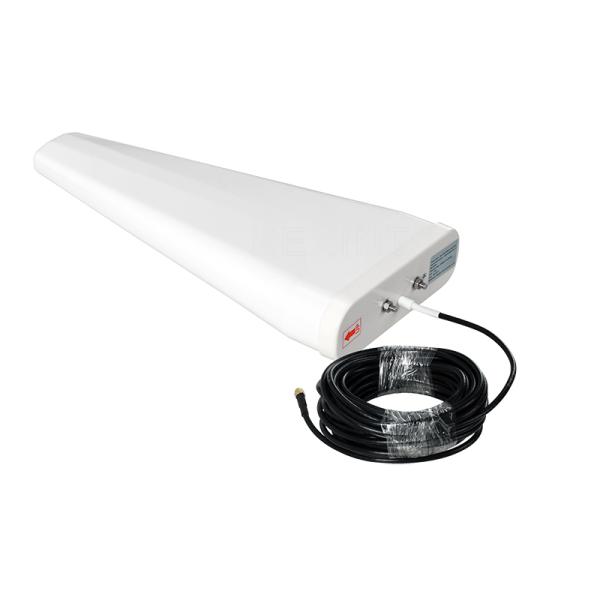

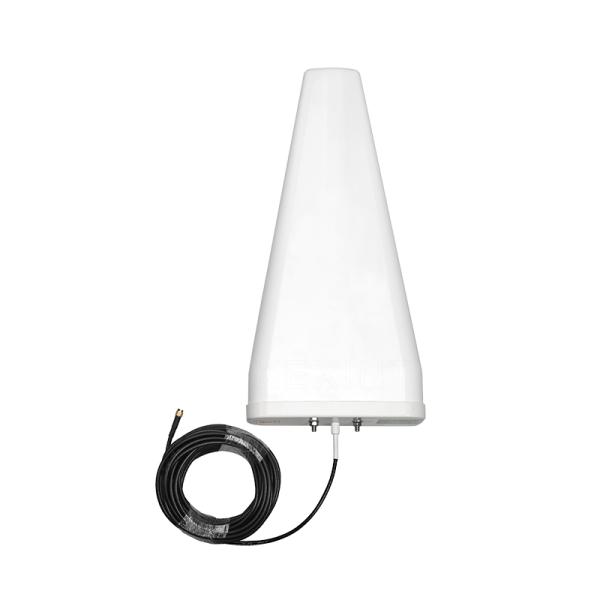

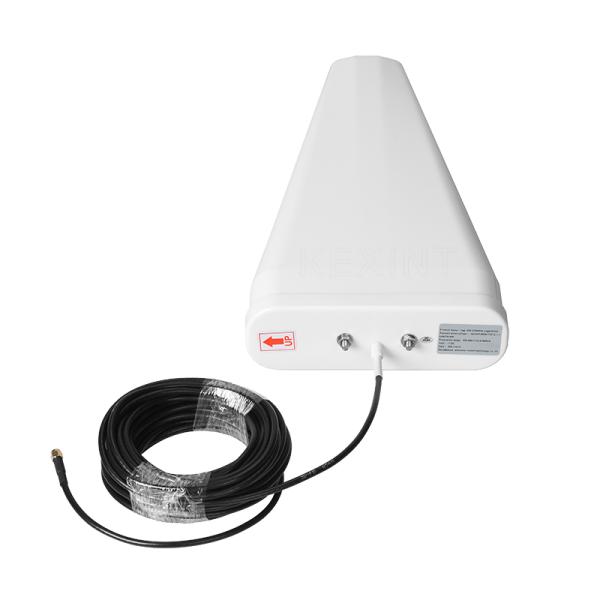

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network
Specifications
Brand Name :
Comelink
Model Number :
11dBi antenna
Certification :
ROHS/ISO9001/CE
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
USD+7.98+PCE
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000+pcs+week
Delivery Time :
7
Packaging Details :
Carton
Frequency :
698-960/1710-2690 MHz
Gain-dBi :
11 dBi
cable Material :
Cu
length :
10M or Custom
Antenna Cove Material :
PVC
Size :
450*210*65
Description

The log periodic antenna can be used at a variety of frequencies and elevation angles, and the installation accessories are perfect, the waterproof performance is good, it is an omnidirectional antenna, but it also has a large radiation force, but considering the radiation to the human body, it can basically be ignored.

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G networkHigh Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

Specification:

Electrical Specifications(11DBi)
Frequency Range
806~960/1710·2700
Gain(dB)
11
Bandwidth(MHz)
154/990
Half-Power Bean width
H:90/70 V:60/55
V.S.W.R
＜1.5
Impendance
50Ω
Polarization
Vertical
Cable
3D-FB
Connector
SMA
Radome Material
ABS
Demensions(mm)
450*210*65

High Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G networkHigh Gain 11dBi Signal Broadband 698-2700 MHz Log Periodic Antenna for 4G 5G network

Tips :

1.The LPDA Antenna can make full 4G frequency:698-960/1710-2698MHz,also can make 5G frequency,just feel free to tell me your frequency !
2.The cable type and length is customized,you can make LMR240/LMR200 cable for 30cm or for 10M/15M.
3.The connector type also customized,you can make N male ,SMA male,FME male,or any other connector,just tell me.
4.The Antenna is single box package,if you want to save the delivery cost ,we can pack with PE bag,it can help save your ship cost.
5.For big orders,we accept customized logo on Antennas or customized the package.
