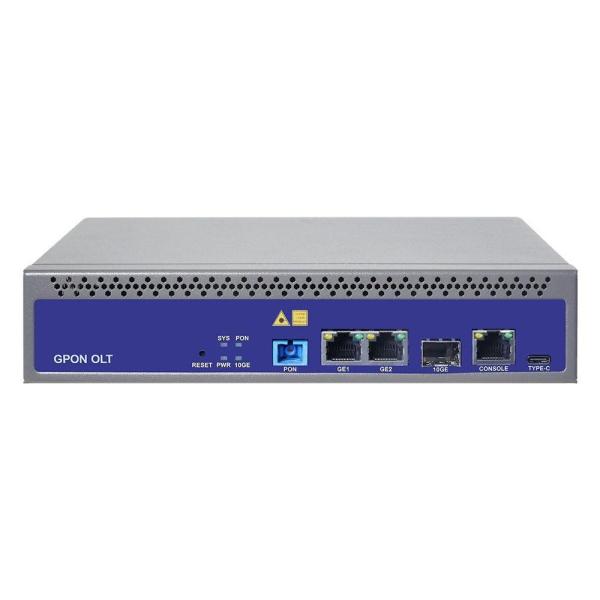

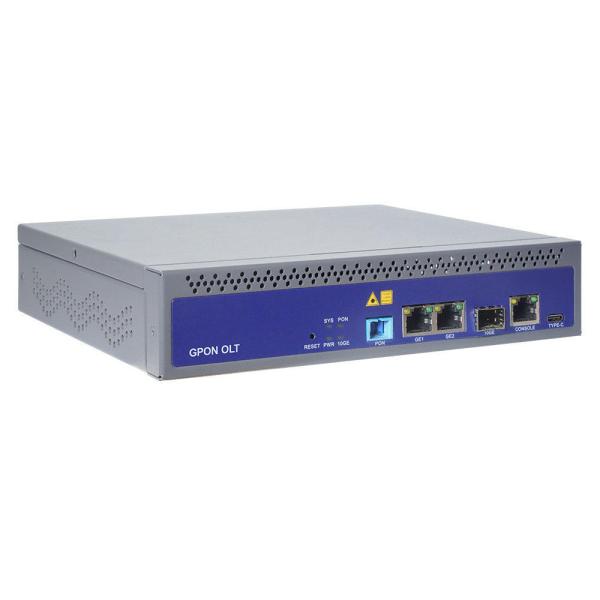

Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Specifications
Brand Name :
comelink
Model Number :
V1600GS
Place of Origin :
China
MOQ :
1 PC
Price :
185
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Port :
1
Power Source :
AC 100-240v, Dc 12V
Connector Type :
SC UPC Class C++
Power supply :
4KV
Fiber Type :
TX 1490nm, RX 1310nm
Transmission Distance :
20KM
TX power :
7dBm
Description

Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT

It is a box-type GPON OLT with one PON port (built in PON module), 2 1000M RJ45 uplink and 1 10G SFP+ uplink. The splitting ratio support maximum 1:128,maximum distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps.It can be widely used in FTTH, SOHO, small business office and other application scenarios..
The OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful
restarting and ring protection, improving the work efficiency and securing the maximum running time.
Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband
access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” VPN, IP Camera, Enterprise LAN and ICT applications.

Feature:

High-Speed Fiber Optic Coverage

Gigabit optical fiber covers enterprise parks and the ultra-fast WiFi covers every corner.

Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Lightweight with High Performance
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Easy Installation Saves Investment
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Centralized Management and Plug & Play
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
POL Network of Small & Medium-sized Enterprises
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
Specification:
Chassis
Rack
1U


GE/10GE
Uplink Port
QTY
3
RJ45(GE)
2
SFP(GE)/SFP+(10GE)
1


GPON Port Specification
QTY
1
Fiber Type
9/125μm SM
Connector
SC/UPC, Class C++/C+++
GPON port speed
Upstream 1.244Gbps
Downstream 2.488Gbps
Wavelength
TX 1490nm, RX 1310nm
Max splitting ratio
1:128
Transmission Distance
20KM
Management Ports
1*CONSOLE port
Dimension (L*W*H)
224mm*199mm*43.6mm
Weight
Net weight of single power: 1.07kg
Backplane Bandwidth (Gbps)
16
Port Forwarding Rate(Mpps)
23.808
Management Mode
Console/WEB/Telnet/CLI
Lightning
Protection Level
Power supply
6KV
Device Interface
4KV
Application:
Original Vsol V1600GS 10GE PON Mini OLT 1 Port OLT GPON OLT
