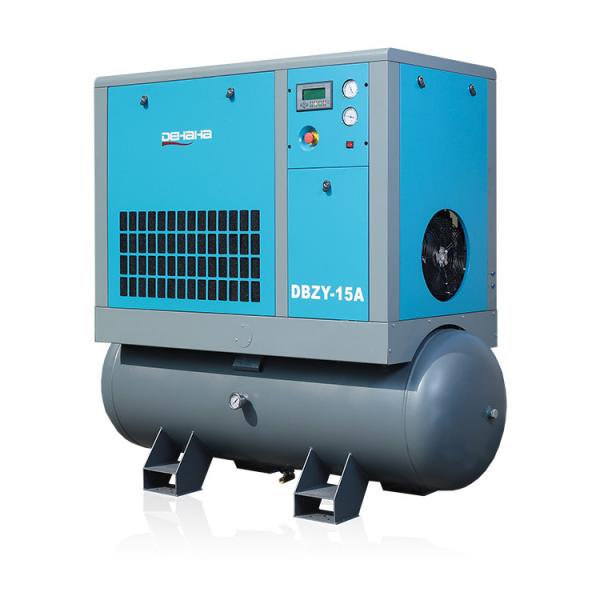

16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
Specifications
Brand Name :
Dehaha
Model Number :
DBZY-15A
Certification :
CE/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Supply Ability :
600 Set/ Month
Delivery Time :
20 days
Packaging Details :
Plywood case
Product name :
Screw Air compressor
Capacity :
1.05m3/min 37cfm
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Voltage :
Customer requirements
Gas Type :
Air
Application :
General Industry
Air end :
GHH/Rotorcomp/Hanbell
Motor :
IE3 Siemens/ABB/Suma
Cooling method :
Air Cooling
Pressure :
7bar 8bar 10bar 13bar 16bar
OEM :
Welcome
Protection class :
IP54/IP55/IP65
Oil content :
less than 3ppm
Dimension(L*W*H) :
1882*790*1731mm
Weight :
560kg
Port :
Shanghai
Description
16 bar Screw Air Compressor All In One 15 hp 11kW Screw Air Compressor with Dryer

The Air Compressor for Fiber Laser Cutting Machine

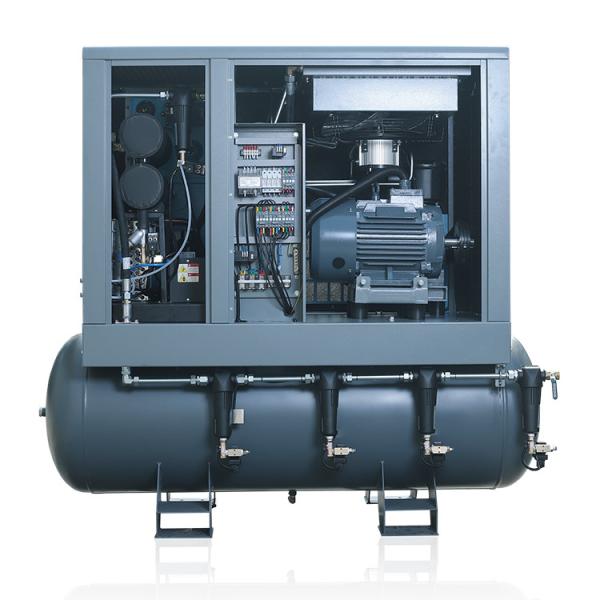

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.




More Convenient

Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and fittings. Use directly after installation, saving space.

More Reliable

Modular design, durable components, low noise and vibration, and easy maintenance.

Energy Efficiency

Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more energy-saving.

Pure Compressed Air

High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.

Technical Parameters
Model:DBZY-15A
Capacity: 1.05m3/min
Working pressure: 16 bar
Head: Hanbell AB+
Transmission mode: belt drive
Cooling method: air cooling
Motor: 380v/50hz/3phase, IP54
Exhaust temperature: ambient temperature +8℃
Noise: ≤ 65 dB(A)
Outlet size: G3/4”
Gas tank: 500L
Cold dryer voltage: 220v/50/1phase
Air dryer: 16bar/1.2m3/2-10℃
Filter: 16bar/1.5m3/4 pcs, particle content≤0.01μm,oil content≤0.003PPM D
imensions: 1882*790*1731mm Weight: 560kg
Technical Parameters
Model Capacity (m3/min)
Pressure
(Bar )
Power
(kw)
Noise

(DB)
 Outlet diameter Dimension(mm)
Weight
(kg)
Air tank
(L)
Exhaust oil content
(ppm)
DBZY-10A 0.55 1.58 7.5 65 G3/4 1418*700*1500 395 260 0.01
DBZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560 500 0.01
DBZY-20A 1.51 1.58 15 65 G3/4 1882*790*1731 572 500 0.01
DMZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560

500
 0.01
DMZY-20A 1.52 1.58 15 65 G3/4 1882*790*1731 572 500 0.01
DMZY-30A 2.41 1.58 22 68 G3/4 1882*1081*1801 630 500 0.01
DCZY-30A 2.21 1.58 22 68 G3/4 1882*1081*1801 630 500 0.01

16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
Application Industry
16 Bar Screw Air Compressor All In One 15 Hp 11kW ​With Dryer
About us



FAQ

Q1. Are you trading company or manufacture ?

A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment
