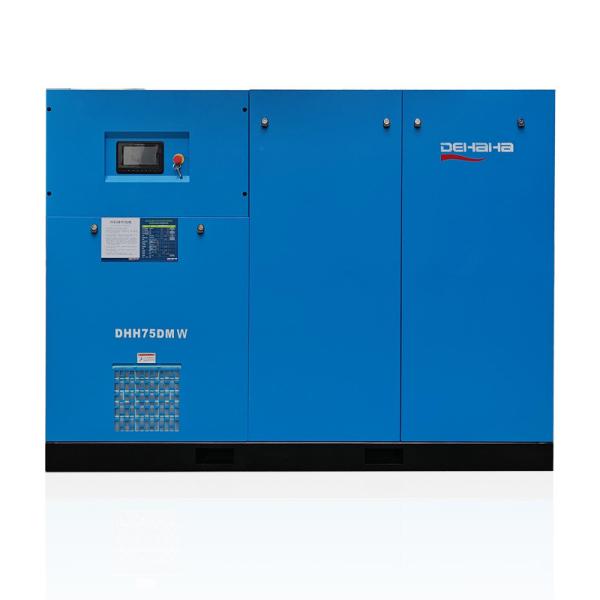

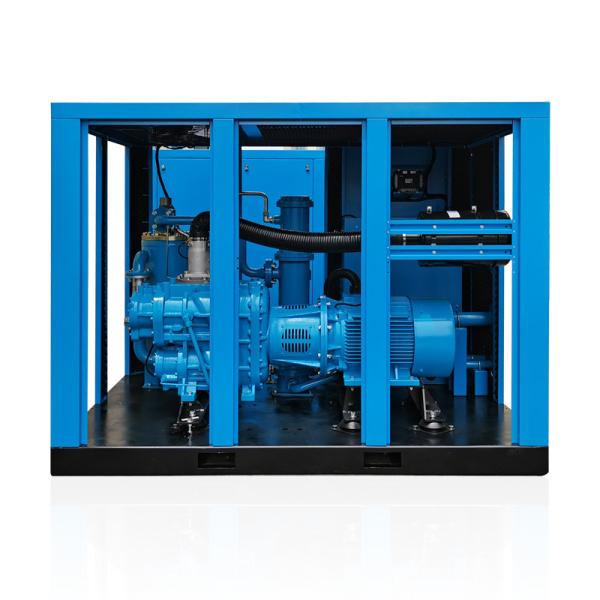

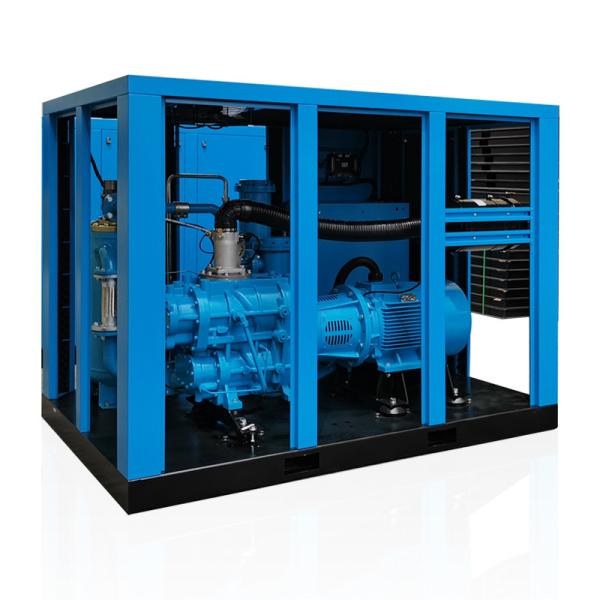

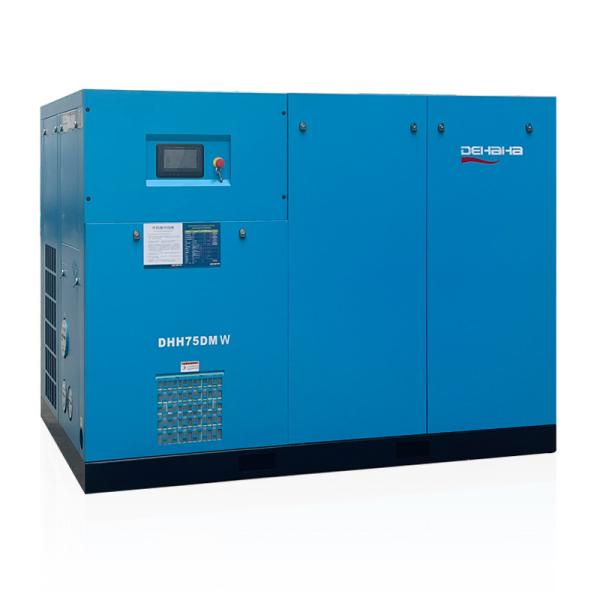

IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
DHH75DMW
Packaging Details :
Wooden box
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Screw Air Compressor
Voltage :
380V/50hz or Customer's Requirement
Cooling method :
Air Cooling/Water Cooling
Capacity :
10.2~16m3/min 360~565cfm
Working Pressure :
7 bar, 8 bar, 10 bar, 13 bar
Air end :
Rotorcomp/Hanbell/GHH/Baosi
Protection grade :
IP54/IP55/IP65
Dimension(L*W*H) :
2900*1470*1625mm
Weight :
2000kg
Exhaust oil content :
< 3ppm
OEM :
Offered
Description

75 kw 100 hp Screw Compressor Manufacturing Two Stage Screw Air Compressor

Feature

1.Two-stage compressor airend, one-stage energy saving, low vibration and low noise.
2. The two-stage compression instead of the single stage compression,the exhaust volume increased by nearly 15%, which can achieve 15% energy saving effect.
3. IP65 PM motor with higher efficiency and can be adapted to the poor and dusty working conditions.
4.Touchable LED controller, intelligent control, high-efficiency motor protection level IP65.

Technical parameter

Model Air Delivery (m3/min) Power (kW) Noise (Db) Outlet diameter Dimension (mm) Weight (Kg)
0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa Length Width Height
DDM-30 4.50 4.20 3.40 2.60 22 68 G1 1440 830 1265 840
DDM-40 6.05 5.80 4.18 4.00 30 68 G11/2 1630 1214 1660 950
DDM-50 7.50 6.80 6.00 4.60 37 68 G11/2 1600 940 1410 1050
DDM-60 10.50 9.90 6.80 5.71 45 72 G2 2000 1120 1590 1560
DDM-75 13.60 12.30 10.15 7.00 55 76 DN50 2900 1470 1625 1780
DDM-100 16.00 15.50 12.80 10.20 75 76 DN50 2900 1470 1625 2000
DDM-125 20.70 19.50 16.15 13.20 90 76 DN65 3400 1757 1860 2700
DDM-150 24.80 24.00 20.20 15.21 110 76 DN65 3400 1757 1860 3000
DDM-175 29.00 28.00 23.20 18.70 132 78 DN80 3750 1900 1980 4650
DDM-220 34.00 32.50 28.00 23.10 160 78 DN80 3750 1900 1980 4850
DDM-250 39.00 38.00 32.00 27.70 185 78 DN100 3900 2100 1980 5900
DDM-275 43.20 42.00 38.10 31.90 200 78 DN100 3900 2100 1980 6200
DDM-300 48.51 46.20 41.20 31.60 220 82 DN100 4260 2182 2170 8300
DDM-350 52.50 51.00 45.80 37.20 250 82 DN100 4260 2182 2170 8500
About us

DHH compressor Jiangsu Co., Ltd. is a manufacturer who integrates R & D, manufacturing, sales and service. It was founded in 1996, with 26 years’ experience in this industry. We have five series of products: oil injected, oil-free, medium and high pressure, 2 ~ 5bar low pressure and diesel portable compressor. In 2017 we obtained more than 20 patents with certificate: ISO9001, EU CE. In 2018, we were identified as "high-tech enterprise" and "private-own technical enterprise".

IP65 Electric Air Compressor 75kw 100hp Industrial Screw Compressor

FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
