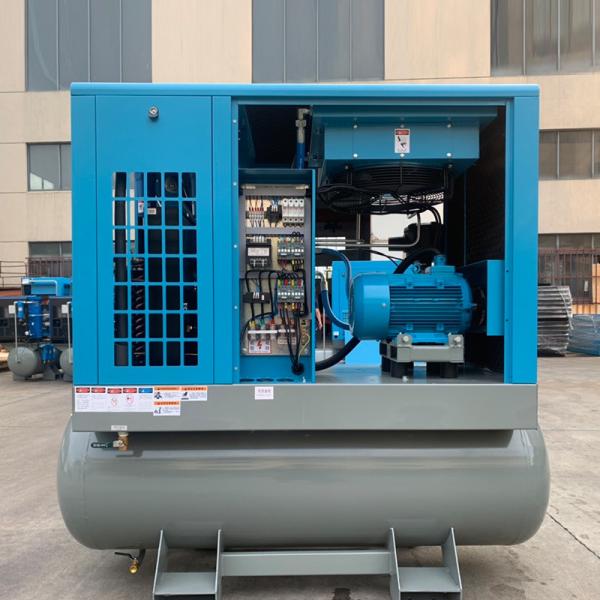

16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DBZY-20A
Packaging Details :
Wooden case
Supply Ability :
600 Set/Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Product name :
Screw Air Compressor
Type :
Screw
Configuration :
Stationary
Mute :
Yes
Voltage :
220V/380V/415/440V or Customized
Capacity :
1.51m3/min
Dimension(L*W*H) :
1882*790*1731mm
Pressure :
16 bar
Weight :
572kg
Warranty :
1 Year
Air end :
Rotorcomp Germany Original
Motor power :
15kw 20hp
Application :
Fober laser cutting application
Cooling method :
Air Cooing
OEM :
Offered
Description

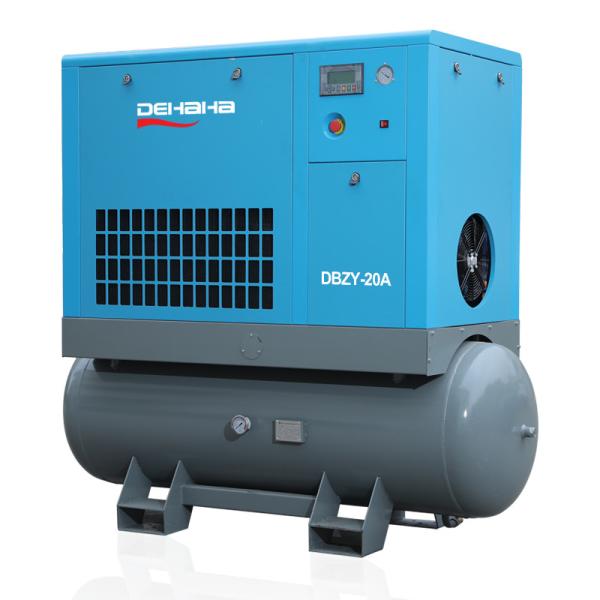

16bar Electric Screw Air Compressor Compresor De Aire with Rotorcomp Air End
Model: DBZY-20A
Type: fix speed, all-in-one type
Air delivery: 1.51m3/min
Working pressure: 7~16bar
Cooling: air cooling
Electric motor:20hp 15kW IP54 protection level
Dimension: 1882*790*1731mm
Weight: 572kg
Air tank: 500 L
Air dryer capacity: 16bar/2.4m3/2-10℃
Air filter: 16bar/2.8m3/4 pcs, particle content≤0.01μm, oil content≤0.003PPM
Technical Parameters
Model
Capacity (m3/min)

Pressure
(Bar )
Power
(kw)
Noise
(DB)
Outlet diameter
Dimension(mm)
Weight
(kg)
Air tank
(L)
Exhaust oil content
(ppm)
DBZY-10A
0.55
1.58
7.5
65
G3/4
1418*700*1500
395
260
0.01
DBZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DBZY-20A
1.51
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DMZY-20A
1.52
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-30A
2.41
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
DCZY-30A
2.21
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End
Application Industry
16 Bar 20 Hp Electric Screw Air Compressor De Aire With Rotorcomp Air End

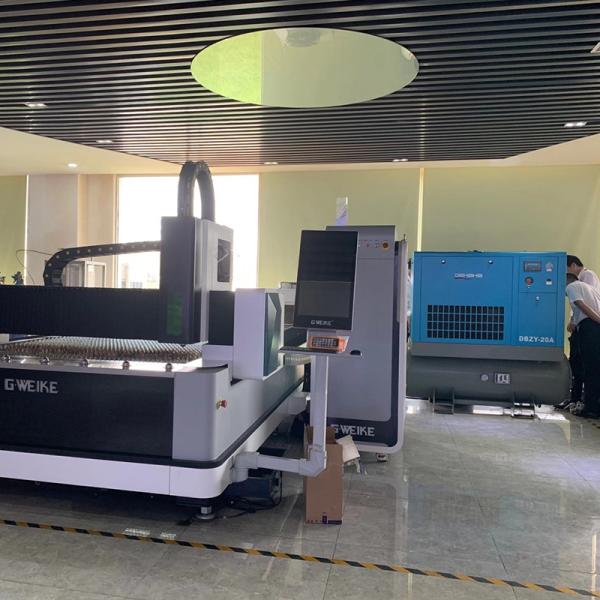

Project Case
