15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DBZY-15A
Packaging Details :
wooden case
Supply Ability :
600 Set/Sets per Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Product name :
Screw Air Compressor
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
380V/50HZ or Customized
Capacity :
37cfm 1.05m3/min
Dimension(L*W*H) :
1882*790*1731 mm
Weight :
560kg
Warranty :
1 Year
Gas Type :
Air
Pressure :
16bar
Cooling method :
Air Cooling
Motor :
Electric motor: 15hp 11KW 380v/60hz/3ph IP54 protection level
Application :
General Industry
Discharge temperature :
less than ambient +8 ℃
Air tank :
500L
Control :
PLC
OEM :
Offered
Description
15hp 11kW High Pressure Rotary Screw Air Compressor for Fiber Laser Cutting Machine
DEHAHA ALL IN ONE series compressed air system integrates screw air compressor, 4 in 1,Screw air compressor +air dryer+air filter+air tank .This compact assembly provides a complete solution to produce clean and dry compressed air. Simplicity in just connecting an outlet pipe, drain pipe, and electrical cables to the system saves cost and space.
1. All in one integration
2. Easy to install and move
3. Provides pure compressed air
* Model: DBZY-15A
* Free air delivery: 1.05 m3/min 37.5cfm
* Working pressure: 16 bar
* Screw air end rotor lobe: 5:6
* Control: Micro PLC controller
* Driven: belt
* Cooling: by air
* Electric motor: 15hp 11KW 380v/50hz/3ph
* Discharge temperature: less than ambient +8 ℃
* Noise: less than 65 dB(A)
* Air outlet size: G3/4”
* Air tank: 500 L
* Air dryer capacity: 1.6m3/min
* Dimension: 1882*790*1731mm
* Weight: 560kg
Product feature

1. Germany Rotorcomp Air end

German technology, high efficiency, good cutting effect.

2. IE3 High efficiency motor

IP54/P55 high protection level

3. Manuli Italy Super Pipe

Anti-aging, Long service life.

High Polymer Material, High Intensity.

4. German original Mann filter

Air Filter, Purified Air from Very Beginning.

Oil Filter, Clean Oil Circulation.

Oil Separator, Purify Compressed Air.

150% Filtration by Serial Filter Paper Design

5. Low noise

All door panels are equipped with fireproof and thick sound-proof sponge.

Use thicker steel plates to make the shock-absorbing chassis.

6.The cold dryer and precision filter are equipped with an automatic drain valve to avoid manual draining

Technical Parameters

Model Air Delivery (m3/min) Rated exhaust pressure (Mpa) Power (kW) Noise (Db) Outlet diameter (In)

Dimension

(mm)

 Weight (Kg) Exhaust pressure
dew point (ºC)		 Exhaust dust
content (μm)		 Exhaust oil
content (ppm)		 Gas storage
tank capacity (L)
DBZY-10A 0.55 1.58 7.5 65 G3/4 1418*700*1500 395 2~10 0.01 0.01 260
DBZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560 2~10 0.01 0.01 500
DBZY-20A 1.51 1.58 15 65 G3/4 1882*790*1731 572 2~10 0.01 0.01 500
DMZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560 2~10 0.01 0.01 500
DMZY-20A 1.52 1.58 15 65 G3/4 1882*790*1731 572 2~10 0.01 0.01 500
DMZY-30A 2.41 1.58 22 68 G3/4 1882*1081*1801 630 2~10 0.01 0.01 500
DCZY-30A 2.21 1.58 22 68 G3/4 1882*1081*1801 630 2~10 0.01 0.01 500

Notes:1. A represents air-cooling type,W represents water-cooling type;
2. Working Environment temperature: -5ºC~45ºC;
3. Discharge temperature is less than ambient temperature +10ºC~15ºC;
4. Drive Mode: belt driven;
5. Startup Mode: direct start under 11kw, and above 11kw;
6. Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;
7. F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)

15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine

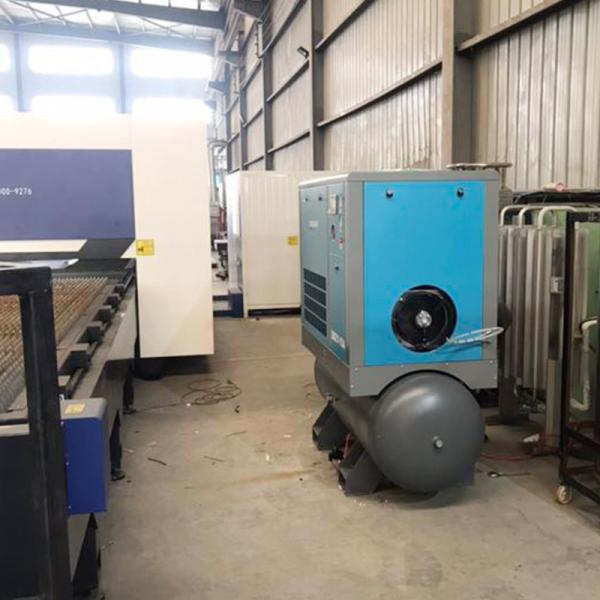

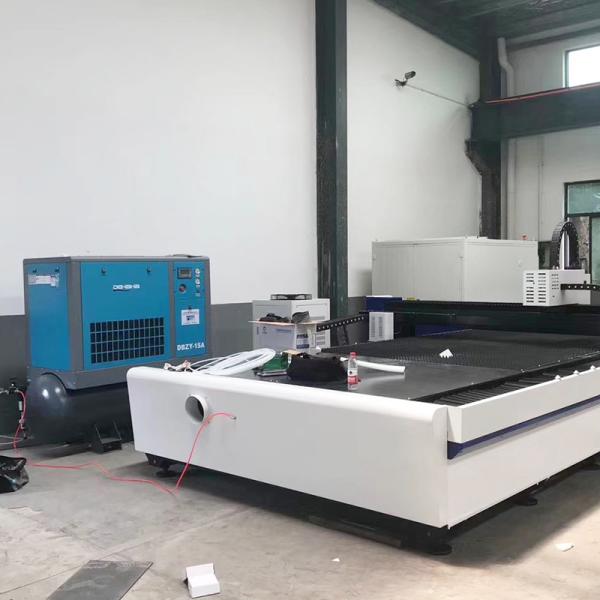

Project Case
We're professional compressor manufacturer since 1996. We set up our special line for Fiber laser cutting industry in 2015. We've provided many units for many different brands Fiber laser cutting machines.
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
Company Profile
We're professional compressor manufacturer since 1996. We set up our special line for Fiber laser cutting industry in 2015. We've provided many units for many different brands Fiber laser cutting machines.
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
15hp 11kw High Pressure Screw Air Compressor Rotary For Fiber Laser Cutting Machine
FAQ
1.Why customer choose us?
DEHAHA COMPRESSOR JIANGSU CO.,LTD.with 26 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.

2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.

3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.

5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.

6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained ISO9001:2015 authentication and CE certificate.

7.How long could your air compressor be used?
Generally, more than 10 years.

8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.

9.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
