De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DBZY-10A
Packaging Details :
Plywood case
Supply Ability :
500 Set/Sets per Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Product name :
Screw Compressor
Condition :
New
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
380V/50HZ/3hp
Dimension(L*W*H) :
1418*700*1500mm
Weight :
395KG
Air delivery :
1.2 m3/min 42.4cfm
Pressure :
8 Bar/116Psi
Control :
PLC
Cooling method :
Oil cooling
Motor power :
10hp 7.5KW IP54
Noise :
less than65dB(A)
Driven method :
Belt
Application :
General Industry
Description
DHH Factory Direct Sales 7.5kW Rotary Screw Air Compressor 10hp compresor de aire
DHH Factory Direct Sales 7.5kW Rotary Screw Air Compressor 10hp compresor de aire

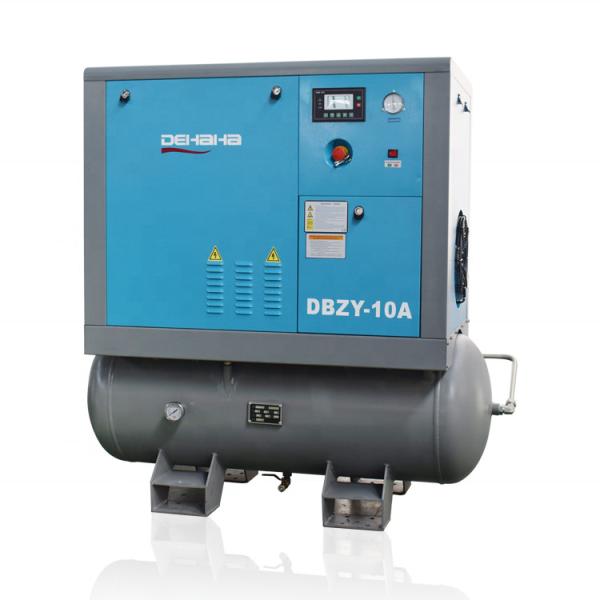

Model: DBZY-10A
Free air delivery: 1.2 m3/min
Working pressure: 8 bar
Screw air end: Hanbell AB+ series,it has 6 pcs SKF bearings
Control: PLC
Cooling: by air
Electric motor: 10hp 7.5KW IP54 protection level
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Air tank: 260 L
Air dryer capacity: 1.35m3/min
Dimension: 1418*700*1500mm
Weight: 395kg
Technical Parameters
Model
Capacity (m3/min)
Pressure
(Bar )

Power
(kw)
Noise
(DB)
Outlet diameter
Dimension
(mm)
Weight
(kg)
Air tank
(L)
Exhaust oil content
(ppm)
DBZY-10A
0.55
1.58
7.5
65
G3/4
1418*700*1500
395
260
0.01
DBZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DBZY-20A
1.51
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DMZY-20A
1.52
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-30A
2.41
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
DCZY-30A
2.21
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
Application Industry
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable

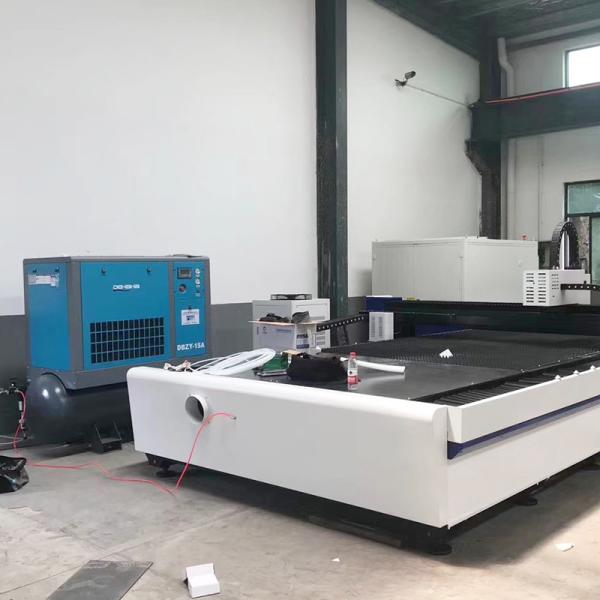

Project Case
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
Company Profile
De Aire Rotary Combined Screw Air Compressor 7.5kW 10hp Portable
FAQ

Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Jiangsu, China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
