30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DHH2030
Packaging Details :
Wooden case
Supply Ability :
600 Set/Sets per Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Condition :
New
Type :
Screw
Configuration :
PORTABLE
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
220V/380V/400V/415V/440V/660V or customized
Air Delivery :
2m3/min 70.6cfm
Dimension(L*W*H) :
2200*1600*1970mm
Weight :
1460kg
Warranty :
1 Year
Working Pressure :
30bar
Warranty of core components :
2 years
Core Components :
PLC, Motor, Pump, Bearing
Gas Type :
Air
Control :
PLC
Driven :
Belt
Cooling :
Air cooling
Electric motor :
30hp 22kW 380v/50hz/3ph IP54 grade
Discharge temperature :
less than ambient +8 ℃
Air outlet size :
G3/4"
Application :
General Industry
Color :
Customized Color
Description
30 bar 30hp Screw Type Industrial Air Compressors Machine for Laser Cutting

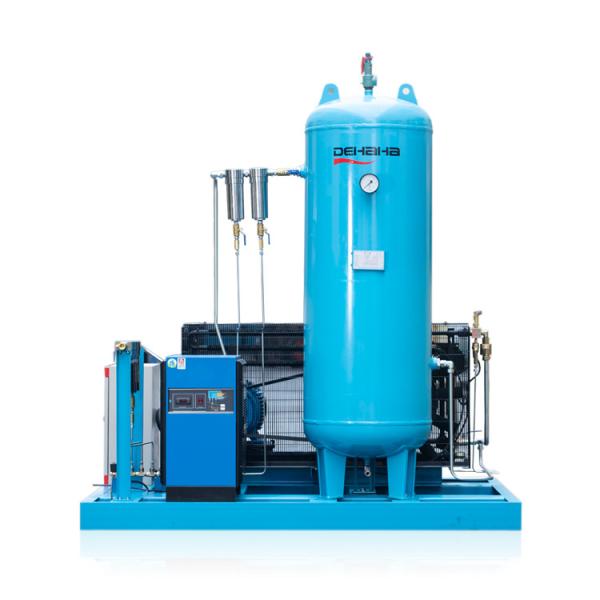

The air compressor specially designed for medium-pressure laser cutting is an integrated armored equipment developed by DEHAHA compressor for the sheet metal and laser industries. The system is equipped with 1~3m3/min@30bar/40bar compressed air, air tank 130L -1000L (optional), stainless steel plate for freeze dryer, lower pressure dew point, 5-stage precision filter, centralized electronic sewage, thereby ensuring the cleanness of the cutting gas source.
Technical Parameters
Model
Capacity
(m3/min)
Pressure
(Bar )
Power
(kw)
Outlet diameter
Dimension(mm)
Weight
(kg)
DHH1030
1
30
11
G3/4"
1650*1500*1970
1230
DHH1230
1.2
30
15
G3/4"
1650*1500*1970
1300
DHH1630
1.6
30
18.5
G3/4"
2200*1600*1970
1400
DHH2030
2
30
22
G3/4"
2200*1600*1970
1460
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
Application Industry
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
Project Case
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
Packing & Delivery
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
Company Profile
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
FAQ
30 Bar Industrial Air Compressors 30 Hp Rotary Screw Air Compressor For Laser Cutting
