Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DBZY-15A
Packaging Details :
Plywood case
Supply Ability :
600 Set/Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Product name :
Screw Air compressor
Condition :
New
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
Customer requirements
Dimension(L*W*H) :
1882*790*1731mm
Weight :
560kg
Warranty :
1 year
Gas Type :
Air
Capacity :
1.05m3/min 37cfm
Application :
General Industry
Air end :
GHH/Rotorcomp/Hanbell
Motor :
IE3 Siemens/ABB/Suma
Cooling method :
Air Cooling
Pressure :
7bar 8bar 10bar 13bar 16bar
OEM :
Welcome
Protection class :
IP54/IP55/IP65
Oil content :
less than 3ppm
Description

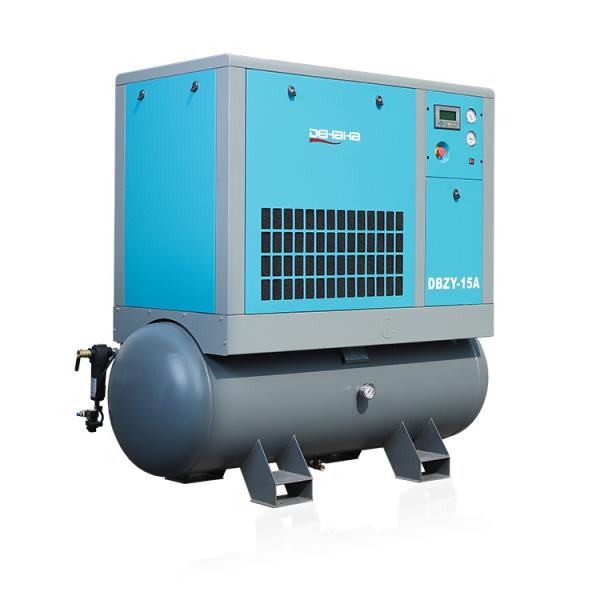

16bar Portable 15HP 11kW Screw Air Compressor de ar Air Compressor for Fiber Laser

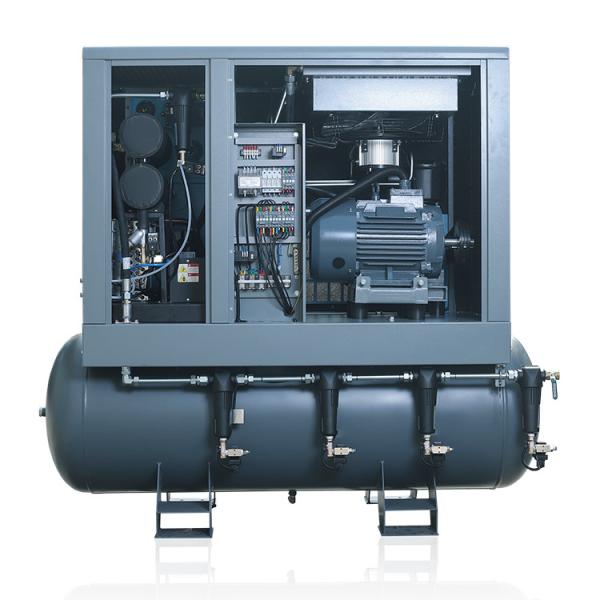

DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter.

Main Features

1.Full performance in one screw compressor, convenience and save space

2.High efficiency performance, reliable quality

3. Power: 11~22KW

4. Pressure:7~16bar

5. Capacity: 0.55~2.41m3/min

Products feature

Integrated compressed air system includes screw compressor, refrigerated air dryer, tank specialized for fiber laser cutting machine.

More Convenient
Integration of air compressor, air tank, and air dryer. It avoids the trouble of customers purchasing additional pipes and fittings. Use directly after installation, saving space.

More Reliable
Modular design, durable components, low noise and vibration, and easy maintenance.

Energy Efficiency
Using permanent magnet variable speed motor, specialized for laser cutting machine, reducing pressure leakage and more energy-saving.

Pure compressed air
High efficiency refrigerated dryer, multi-stage precision filter, oil content of gas is lower than 0.001 PPM, ensuring the purity of compressed air.

Technical Parameters
Model
Capacity (m3/min)

Pressure

(Bar )
Power
(kw)
Noise
(DB)
Outlet diameter
Dimension(mm)

Weight

(kg)
Air tank(L)
Exhaust oil content
(ppm)
DBZY-10A
0.55
1.58
7.5
65
G3/4
1418*700*1500
395
260
0.01
DBZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DBZY-20A
1.51
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DMZY-20A
1.52
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-30A
2.41
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
DCZY-30A
2.21
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01

Portable 11kW Combined Screw Air Compressor 15 Hp De Ar For Fiber Laser
