Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
CPBZY15
Packaging Details :
Plywood case
Supply Ability :
60 Set/ Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
380V/50Hz/3ph Optional
Dimension(L*W*H) :
1900*700*1650mm
Weight :
560kg
Working Pressure :
16bar
Warranty of core components :
1 Year
Gas Type :
Air
Air delivery :
40.9cfm 1.16m3/min
Pressure :
16bar
Motor power :
20hp 15kW Permanent magnet variable
Cooling method :
by air
Air outlet size :
G3/4"
Noise :
less than 65dB(A)
Invertor :
Inovance
Control :
PLC
OEM :
Offered
Description
Combined 20 hp 15 kw Variable Frequency Belt Driven Air Compressor
Model:CPBZY15A
Air delivery: 1.16m³/min
Working pressure: 16bar
Air tank: 350L
Air dryer: 16bar/2.4m3/2-10℃

Filter: 16bar/2.8m3/4 pcs
Start mode: frequency conversion start Laser cutting machine power: Below 6000W Filter fineness, use four stage filters, particle
content≤0.01μm oil content≤0.003PPM Equipment configuration: screw air compressor, air tank, air dryer, four stage filters, auto drain valve, inverter.

Pressure differentiation of integrated screw air compressor

1. High pressure series

(1) The appearance is integrated, with air tank and air dryer

(2) The pressure range is 16bar (232psi) -30bar (435psi)

(3) Divided into fixed speed and permanent magnet frequency conversion series

2. Ordinary pressure series

(1) The appearance is integrated, with air tank and air dryer

(2) The pressure range is 7bar (101.5psi) -13bar (188.5psi)

(3) Divided into fixed speed and permanent magnet frequency conversion series

Technical Parameters
Model

Capacity (m3/min)
Pressure
(Bar )
Power
(kw)
Noise
(DB)
Outlet diameter
Dimension(mm)
Weight
(kg)
Air tank
(L)
Exhaust oil content
(ppm)
DBZY-10A
0.55
1.58
7.5
65
G3/4
1418*700*1500
395
260
0.01
DBZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DBZY-20A
1.51
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-15A
1.05
1.58
11
65
G3/4
1882*790*1731
560
500
0.01
DMZY-20A
1.52
1.58
15
65
G3/4
1882*790*1731
572
500
0.01
DMZY-30A
2.41
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
DCZY-30A
2.21
1.58
22
68
G3/4
1882*1081*1801
630
500
0.01
CPBZY15A
1.14
1.58
15
65
G3/4
1900*700*1650
520
350
0.01
CPMZY15A
1.14
1.58
15
65
G3/4
1900*700*1650
520
350
0.01
Small Belt Driven Rotary Air Compressor 20hp 15kw Variable Frequency Air Compressor
Application Industry
Small Belt Driven Rotary Air Compressor 20hp 15kw Variable Frequency Air Compressor

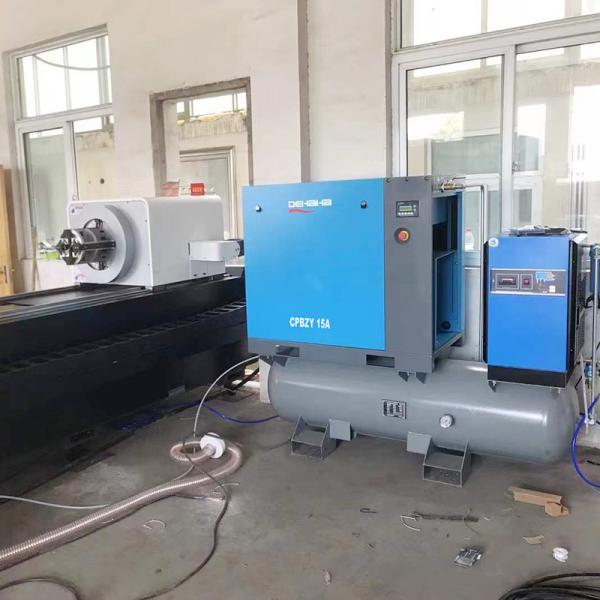

Project Case
Small Belt Driven Rotary Air Compressor 20hp 15kw Variable Frequency Air Compressor
Small Belt Driven Rotary Air Compressor 20hp 15kw Variable Frequency Air Compressor
Small Belt Driven Rotary Air Compressor 20hp 15kw Variable Frequency Air Compressor
FAQ

Q1. Are you trading company or manufacture ?

A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment
