Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DBZY-20A
Packaging Details :
Wooden case
Supply Ability :
600 Set/Month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Delivery Time :
20 days
Product name :
Air Compressor
Keywords :
Air Compressor Screw
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
220V/380V/415V/600V or Customized
Dimension(L*W*H) :
1882*790*1731mm
Weight :
572kg
Warranty :
1 Year
Working Pressure :
16bar
Gas Type :
Air
Air end :
Rotorcomp
Motor power :
Siemnes/ABB/Suma
Motor :
IP54
Pressure :
16bar
Application :
For laser cutting application
OEM :
Offered
Description

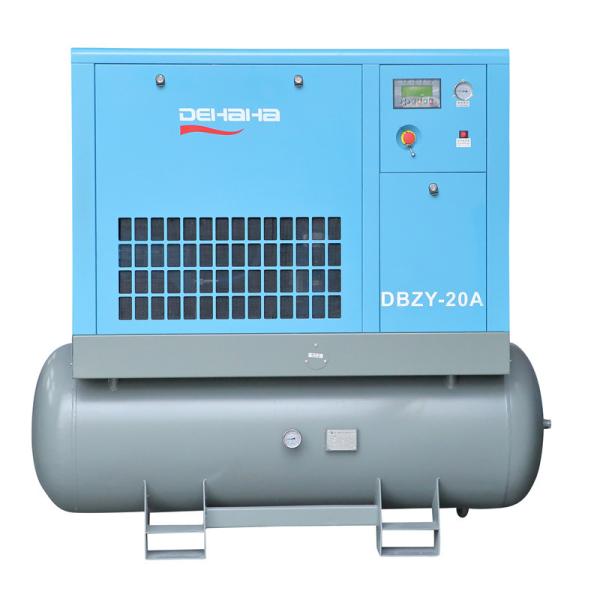

Rotorcomp PM VSD Rotary Screw Air Compressor 16 bar for Fiber Laser
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Model: DBZY-20A
Air delivery: 1.51m3/min
Working pressure: 7~16bar
Cooling: air/water cooling
Electric motor:20hp 15kW IP54 protection level
Dimension: 1882*790*1731mm
Weight: 572kg
Air tank: 500 L
Air dryer capacity: 2.0m3/min
Air filter: 3 pcs (after filtering, particle content 0.01 micron, oil content 0.001mg/m3)

Technical Parameters

Model Air Delivery (m3/min) Rated exhaust pressure (Mpa) Power (kW) Noise (Db) Outlet diameter (In) Dimension (mm) Weight (Kg) Exhaust pressure
dew point (ºC)		 Exhaust dust
content (μm)		 Exhaust oil
content (ppm)		 Gas storage
tank capacity (L)
DBZY-10A 0.55 1.58 7.5 65 G3/4 1418*700*1500 395 2~10 0.01 0.01 260
DBZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560 2~10 0.01 0.01 500
DBZY-20A 1.51 1.58 15 65 G3/4 1882*790*1731 572 2~10 0.01 0.01 500
DMZY-15A 1.05 1.58 11 65 G3/4 1882*790*1731 560 2~10 0.01 0.01 500
DMZY-20A 1.52 1.58 15 65 G3/4 1882*790*1731 572 2~10 0.01 0.01 500
DMZY-30A 2.41 1.58 22 68 G3/4 1882*1081*1801 630 2~10 0.01 0.01 500
DCZY-30A 2.21 1.58 22 68 G3/4 1882*1081*1801 630 2~10 0.01 0.01 500

Notes:1. A represents air-cooling type,W represents water-cooling type;
2. Working Environment temperature: -5ºC~45ºC;
3. Discharge temperature is less than ambient temperature +10ºC~15ºC;
4. Drive Mode: belt driven;
5. Startup Mode: direct start under 11kw, and above 11kw;
6. Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;
7. F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)

Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
Company Profile
Rotorcomp PM Rotary Vsd Screw Air Compressor For Laser Cutter 16 Bar
FAQ

Q1. Are you trading company or manufacture ?

A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.
