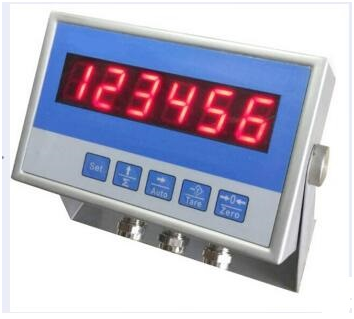

IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display IP66 RS485/RS232 For Silo Scale
IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display IP66 RS485/RS232 For Silo Scale
Specifications
Brand Name :
inntronic
Model Number :
IN-420
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T, Paypal
Price :
Negotiable
product name :
Weighing Indicator Controller
Material :
Stainless Steel SS304
application :
batching scale silo scale
IP Rating :
IP66
Power Supply :
AC adaptor, 100-240VAC, 50-60Hz
Accuracy :
24bits
Application :
Silo Scale
Description

IN-420 Weighing Indicator Controller for batching scale silo scale

Interchangeable With ATRAX 420 PLUS INDICATOR

Stainless Steel Weighing Indicator Controller , Digital Load Controller For Silo Scale IP66

  • RS485/RS232 signal output with Modbus rtu available
  • 2 RELAYS(Optional)
  • Free PC software with programable for all function
Special Function
  • Fast speed
  • High accuracy

Weight Controller Function:

• Auto zero scale • Auto zero tracking • Normal weighing

• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)

Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles

per second and drives up to eight 350Ω or sixteen 700Ω load cells.

With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications

and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.

  • COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
  • COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: AC adaptor, 100-240VAC, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • LABRADOR computer software for parameter and calibration settings
  • Units of Measurement: kg, lb
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Built-in clock

Weight Controlloer Data

Enclosure Material Stainless steel SS304
Units of Measurement kg, lb
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 71mm x 161mm
Dimensions (in) 8.9in x 3.7in x 6.34in
Display Type LCD
Display Digits 6 digits
Digit Height 25.4mm/1in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor, 100-240VAC, 50-60Hz
IP Rating IP66

Division 1, 2, 5, 10
Tare Range 100% of Cn
Maximum Number of Load Cells 8×350Ω or 16×700Ω
Maximum Power Consumption 6VA
Excitation Voltage 5VDC ± 5%
Fusible Link Fuse (slow blow) 1A
Communications Interface RS-232C, RS-485
Print Interface Serial interface

IN-420 SS304 IP66 Stainless Steel 24bits blue Weight Controller Load Cell sensor Display IP66 RS485/RS232 For Silo Scale
