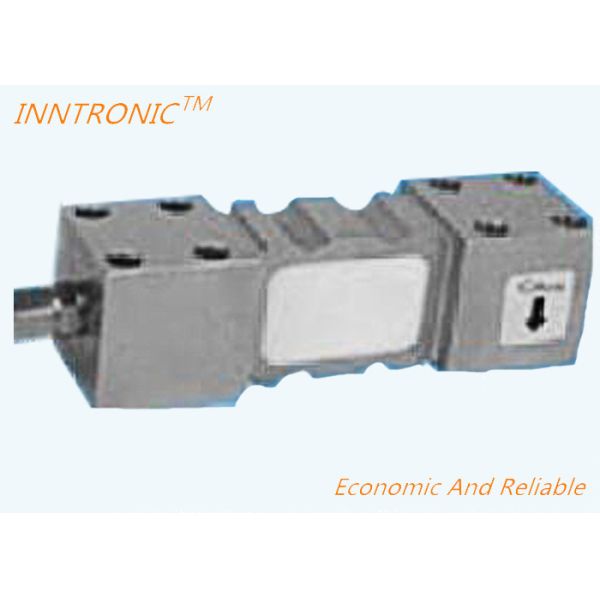

Single Point Load Cell IN-ILEG 300kg C3 Aluminum weight force sensor Tank Weighing Load Cell 2.0+0.2mV/V
Single Point Load Cell IN-ILEG 300kg C3 Aluminum weight force sensor Tank Weighing Load Cell 2.0+0.2mV/V
Specifications
Brand Name :
inntronic
Model Number :
IN-ILEG
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
pattern :
Single Point Load Cell
Capacity :
30kg,60kg,100kg,150kg,200kg,300kg
output :
2mv/v
Material :
Alloy Steel,-SS;Stainless Steel
Application :
platfrom scale
interchangeable brand :
HBM
IP protection standard :
IP66
accuracy grade :
C3
cable length :
3m
size :
120*36*36
Description

IN-ILEG 30kg to 300kg Single Point Load Cell for Platform scale

SS Weighing Machine Using Load Cell Φ5mm Over 5000MΩ Insulation Resistance for platfrom scale

Product detial

  • Accuracy grade:C3
  • Sensitivity:2.0+0.2mV/V
  • Zero balance:1%F.S.

Rated load 30,60,100,150,200,300kg Operating Temp Range -30~+70℃
Total error ±0.03%F.S Safe load limit 150%F.S
Sensitivity 2.0+0.2mV/V Breaking load 200%F.S
Zero balance ±1%F.S Recommend excitation 10～12V DC
Creep(30min) ±0.04%F.S Maximumu excitation 15V DC
TC O ±0.02%F.S/10℃ Protection Class IP66
TC SPAN ±0.02%F.S/1O℃ Construction Alloy Steel,-SS;Stainless Steel
Input resistance 400±20Ω Cable Length=3m
Output resistance 352±3Ω Diameter:Φ5mm
Insulation resistance ≥5000MΩ

Single Point Load Cell IN-ILEG 300kg C3 Aluminum weight force sensor Tank Weighing Load Cell 2.0+0.2mV/V

Single Point Load Cell IN-ILEG 300kg C3 Aluminum weight force sensor Tank Weighing Load Cell 2.0+0.2mV/V
