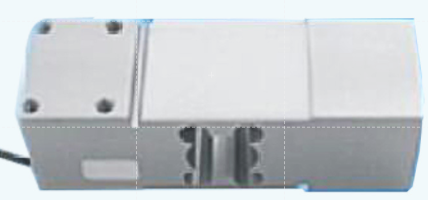

Single Point Load Cell IN-UDJ C3 800kg Aluminum weight force sensor for platfrom bench scale IP65 2.0±0.2mV/V
Single Point Load Cell IN-UDJ C3 800kg Aluminum weight force sensor for platfrom bench scale IP65 2.0±0.2mV/V
Specifications
Brand Name :
inntronic
Model Number :
IN-UDJ
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
pattern :
Single Point Load Cell
Capacity :
100,150,200,300,500,800kg
output :
2mv/v
Material :
Aluminum
Application :
platfrom scale
interchangeable brand :
HBM
IP protection standard :
IP65
accuracy grade :
C3
cable length :
3m
Recommend excitation :
10DC
Description

IN-UDJ 100kg 150 to 800kg Single Point Load Cell for Platform scale

C3 IP65 High Precision Load Cell 3m Cable With Resistance To Partial Load Ability for platfrom scale

product information:

  • Accuracy grade:C3
  • Sensitivity:2.0±0.2mV/V
  • Zero balance:3%Emax

Rated load 100,150,200,300,500,800kg
Total error C3 Operating Temp Range -20~+50℃
Sensitivity 2.0±0.2mV/V Safe load limit 150%F.S
Zero balance ±3%Emax Breaking load 300%F.S
Creep(30min) 166ppm Recommend excitation 10DC
TC O 17.5ppm/10℃ Max excitation 15V DC
TC SPAN 15ppm/1O℃ Protection Class IP65
Input resistance 404±15Ω Material Aluminum
Output resistance 350±3Ω Cable Length=3m
Insulation resistance ≥2000MΩ

Diameter:Φ5mm

Single Point Load Cell IN-UDJ C3 800kg Aluminum weight force sensor for platfrom bench scale IP65 2.0±0.2mV/V

Single Point Load Cell IN-UDJ C3 800kg Aluminum weight force sensor for platfrom bench scale IP65 2.0±0.2mV/V

±3%Emax
