IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance scale 1.2+-10%mV/V
IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance scale 1.2+-10%mV/V
Specifications
Brand Name :
inntronic
Model Number :
IN-651
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C
Delivery Time :
15-30 days
Price :
Negotiable
Certification :
CE
Pattern :
Single Point Load Cell
capacity :
500/1000/2000g
Output :
2mv/v
Material :
Aluminum
application :
electronic balances
interchangeable brand :
HBM
IP protection standard :
IP66
accuracy grade :
C3
cable length :
0.35m
size :
5.12*12*0.47
Description

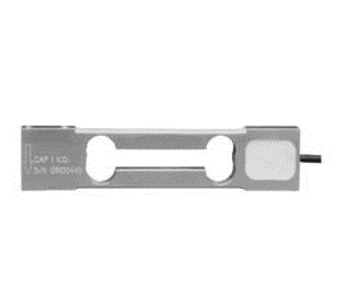

IN-651 0.5 to 2kg Single Point Load Cell for electronic balances

High Precision C3 Single Point Load Cell , IP66 Aluminium Load Cell With 0.35m Cable for electronic balances

Special features:
  • Aluminum
  • Creep precision up to 0.005%
  • accuracy grade:C3
  • Sensitivity:1.2+-10%mv/v
  • Zero balance:0.02mv/v

Rated capacity (Emax) g 500/1000/2000
Huazhun Grade A B
Sensitivity mV/V 1.2+-10%
Zero balance mV/V 0.02
Creep over 30min % 0.008 0.012
Temperature effect on zero %/ 0.0040
Temperature effect on output %/ 0.0012
Hysteresis % 0.01 0.012
Linearity deviation % 0.01 0.012
Repeatability % 0.01 0.012
Nominal temperature range -10 to +40
Service temperature range -30 to +70
Limit load % of R.C. 200
Break load % of R.C. 300
Nominal excitation V 5 ~12
Max. excitation V 15
Input impedance 405 +-10
Output impedance 350 +-3
Insulation resistance M >2000
Cable length M 0.35
Cable type 4 conductors, Braid Shielded, Black PVC Jacket
Color code +Exc-Red, +Sig-Grn, -Exc-Blk, -Sig- Wht
Construction Aluminum
Protection class to IEC529

IP 66

IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance scale 1.2+-10%mV/V

IN-651 Load Cell 2kg C3 C6 High Precision Aluminium Weight force sensor IP66 for electronic balance scale 1.2+-10%mV/V
