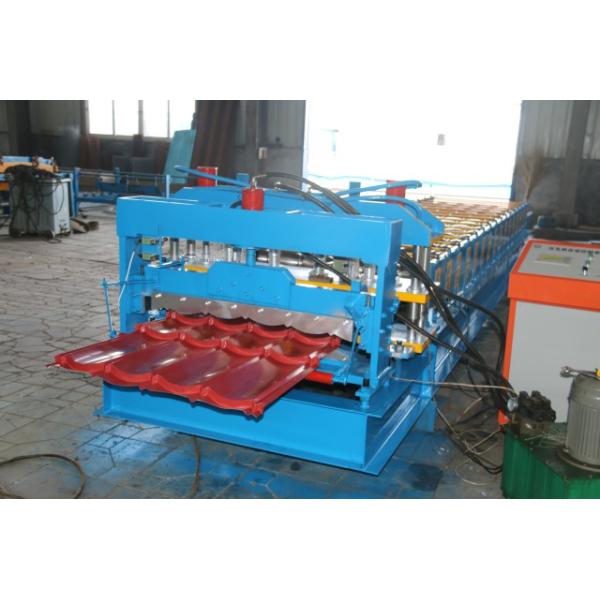

Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
Steel Tile 750 Glazed Steel Profile Roll Forming Machine PLC Control For Construction
Specifications
Brand Name :
Feixiang
Model Number :
FX750
Certification :
CE BV ISO
Place of Origin :
China
MOQ :
1set
Price :
Please check with the supplier
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per week
Delivery Time :
15 days
Packaging Details :
Nude packing,but we can also packing according the customer requirements
Machine name :
Steel tile 750 glazed profile sheet roll making machine for Indonesia
size :
7200*1350*1250mm
Weight :
5.1tons
Control :
PLC computer with different language
Speed :
2-5m/min
Material :
GI,PPGI.AL
Description

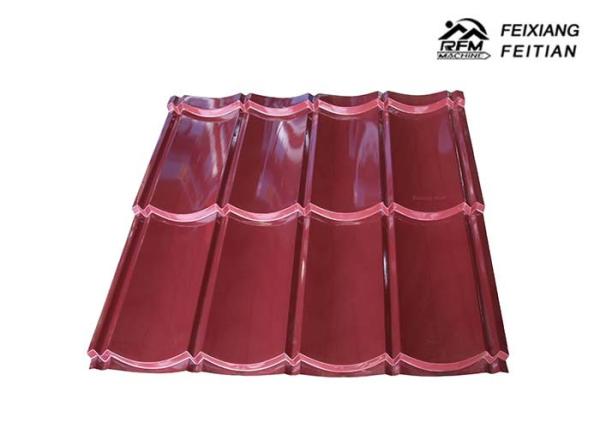

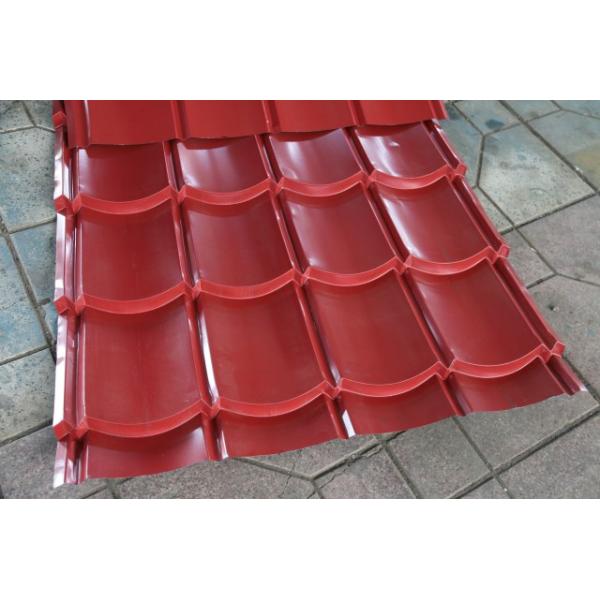

Steel tile 750 glazed profile sheet roll making machine for Indonesia

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:914mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

2. Machine details

Brand: Feixiang
Model number: FX750
Voltage requirement: 380v60hz3p
Working speed:2-4m/min


3. Machine composition

No.

Name

Unit

Qty

1

Decoiler

set

1

2

Main Machine for roll forming

set

1

3

Control System(PLC)

set

1

4

Pressing System

set

1

5

Cutting System

set

1

6

Output Table

set

1


4. Main parameters

Model number

Steel tile 750 glazed profile sheet roll making machine for Indonesia

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet,
colored steel sheet and various steel plates

Effective width

750mm

Feeding width

914mm

Forming steps

14 stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

5.5 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting,
to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,
1 set of computer control cabinet,1 set of hydraulic System,
1 set of cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Delivery time

30 working days
