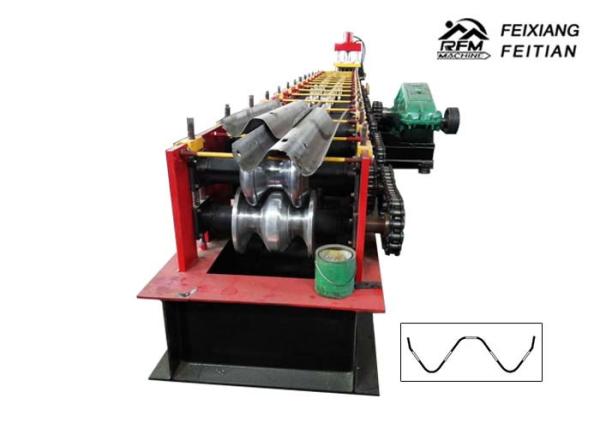

Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Specifications
Brand Name :
FEIXIANG
Model Number :
FX 350
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
3-4mm
Type :
Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Control :
Delta Siemens
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
use for :
highway road
Description

Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine

1. Product Description

This guardrail roll forming machine is able to manufacture double-wave and triple-wave guardrails, and pressing dies can be applied to produce C&U posts. In addition, our machine could be designed to work with hydraulic decoiler and stacker upon customer's request.

2. Machine details

Brand: Feixiang
Model number:Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
Voltage requirement: 380v50HZ,3PH
Working speed:15/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

Length of the main part About15500*1650*1500mm
Weight of main part About 9.5 ton
Voltage 380V/50HZ3Phase (as customer`s request)
Roller fixer Middle plate welded
Frame 400H steel welded
Middle plate thickness 30mm
Drive mode Chain Drice//Gear Drive
Material of rollers GCR15, quenched treated HRC58-62℃
Material of shafts 45# steel
Diameter of shafts Φ90mm(depend on defferent design)
Number of rollers: 16 rollers
Main power 37kw
Cutting&Hydraulic Double guide pillar
Hydraulic motor power 15kw
Hydraulic Pressure 10-12MPa
Cutting drive Decelerating motor + Chain drive gear all by high-frequency
Control System PLC system: Mitstubishi, Panasonic,Detal,Siemens,Schneider
Feeding Material width Better as your drawing or from our designer
Feeding Thickness 3~4mm
Effective width Better as your drawing or from our designer
Productivity 15/min


Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine

Reliable W Beam Guardrail Roll Forming Machine , Crash Barrier Roll Forming Machine
