100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable
100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable
100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable
100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable
Specifications
Brand Name :
coloroptic
Model Number :
C-Q81H13ZL
Certification :
UL, TUV, CE, RoHS, REACH, CMRT
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
TT, LC, Western Union
Supply Ability :
5000 pieces/month
Delivery Time :
7~15 days
Packaging Details :
Plates with Carton
Data rate :
100G
Wavelength :
4LWDM
Distance :
80 km
Connector :
Duplex LC
Form Factor :
QSFP28
Temperature :
0~70°C
DDM :
Yes
Protocals :
MSA
Warranty :
3 years
Label :
Can Be Customized
Protocols: :
to IEEE 802.3ba 100GBASE-ZR4 LITE
Application :
100GBASE-ER4 Ethernet Links
Description

100G QSFP28 ZR4 Optical Transceiver, Support Multi-Pin Function, Hot Pluggable, 0-70°C

100G QSFP28 ZR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single–mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a SOA+PIN and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba

Key Features

  • Hot pluggable QSFP28 MSA form factor
  • Supports 100GBASE 100GE;
  • Lane bit rate 25.78 Gb/s 100GE
  • Up to 100km transmission on SMF;
  • LAN WDM laser and PIN receiver with SOA;
  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
  • High speed I/O electrical interface (CAUI-4);
  • I2C interface with integrated Digital Diagnostic monitoring;
  • QSFP28 MSA package with duplex LC connector;
  • Single +3.3V power supply;
  • Typical power consumption 6.5 W;
  • Operating case temperature: 0 to +70 °C;
  • Compliant to IEEE 802.3bm and ITU-T G.959;
  • Compliant to SFF-8636 and SFF-8679;
  • Complies with EU Directive 2015/863/EU;

Application

· 100GBASE-ZR4 Ethernet Links
· Infiniband QDR and DDR interconnects
· Client-side 100G Telecom

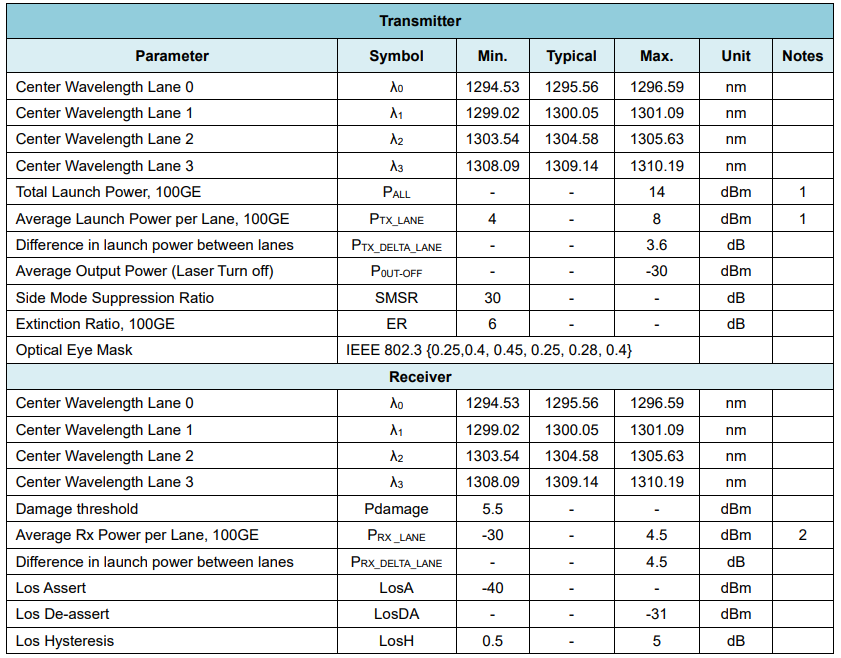

Product Details

100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable

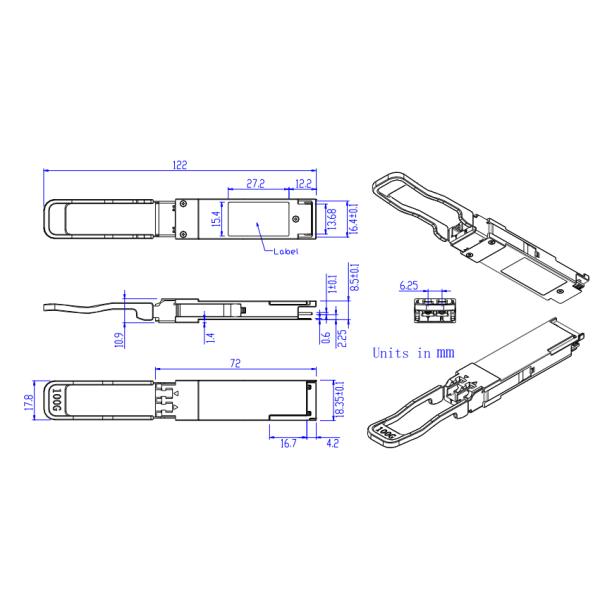

Outline Dimensions:

100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable

Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Taclink transceiver uses a semiconductor laser system and is a laser class1 product acc. FDA, complies with 21CFR1040.10 and 1040.11.Also this product is a laser class1 product acc.IEC 60825-1

Innovations

The manufacturing environment is strictly compliant with most advanced technological standards, ensuring our products a long term reliability.

Quality & Assurance

Our Cutting-Edge test equipment verifies that each of our products meets our high-quality standards

Customization

Thanks to the specialists of our Engineering Department, we have full control over both the hardware and the software of all our transceivers. Need your personal labelling? No problem, just ask and we provide!

Multi-Compatibility

ColorOptic offers a true cost-effective solution for all major platforms including the original vendor firmware.

Technical Support

Any issues with your equipment? We are already dispatching an engineer to your premises to fix it. We are 7x24 hours online supports.
