200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid
200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid
200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid
200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid
Specifications
Brand Name :
coloroptic
Model Number :
C-C22HCOMC
Certification :
UL, TUV, CE, RoHS, REACH, CMRT
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
TT, LC, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
7~15 days
Packaging Details :
Plates with Carton
Data rate :
200G
Wavelength :
Coherent
Distance :
80~up km
Connector :
Duplex LC
Form Factor :
CFP2
Temperature :
0~70°C
DDM :
Yes
Voltage :
3.3V
Protocals :
MSA
Warranty :
3 years
Description

200G MR Coherent 200G CFP2 DCO Transceivers With 7nm NEL DSP Flex Grid

This is CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long haul applications. CFP2-DCO module adopts a common C-band flex-grid laser source providing both transmitter and local oscillator signals, calibrated to provide 100 MHz frequency accuracy, and ±6 GHz local off-grid tuning.

Key Features

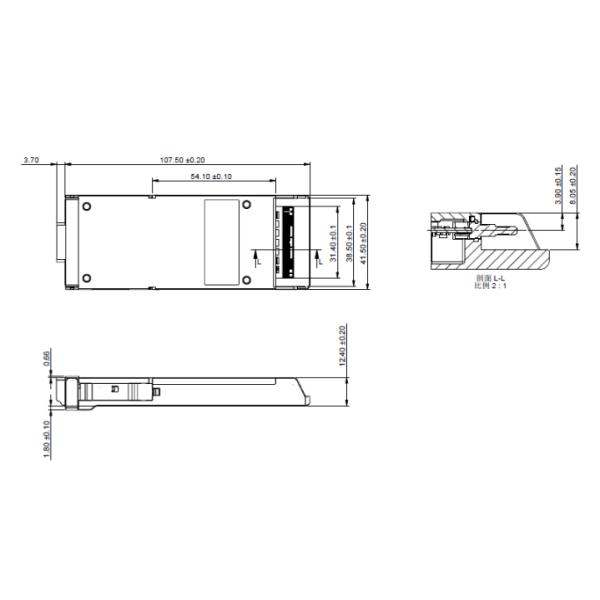

Supports 100 Gbps DP-QPSK and 200 Gbps, DP-16QAM modulations Flexible client side interfaces supporting: OTL4.4 signaling for OTU4 frames with G.709 FEC and OTU4/ODU monitoring; CAUI-4 signaling for 100G Ethernet with RMON counter module Interoperable staircase FEC and low latency 15% soft decision-FEC support Support for Nyquist spectral shaping and digitally compensated CD and PMD Flex-grid DWDM support with gridless tuning (100 MHz resolution) Embedded PRBS generator/analyzer for line and client interfaces and loopback of incoming and outgoing traffic Standard CFP2 form factor module outline (106 x 41.5 x 12.4 mm) Operating case temperature from 0°C to +70°C Single 3.3 V supply.

Application

100G Ethernet OTU4 Long-haul Metro DCI 5G Backhaul

Product Details

Parameter

Symbol

Min

Typical

Max

Units

Note

Operating Case Temperature

TOP

0

　

70

degC

　

Operating Input Optical Power of Signal

Psig

-18

　

0

dBm

　

Transmitter output power range

Pout

-5

0

5

dBm

　

Frequency Range

f

191.3

　

196.1

THz

　

Receiver Sensitivity

SEN

　

-21

dBm

　

OSNR sensitivity

OSNR

　

　19.5

dB/0.1nm

　

Power Consumption

　

　

　

24

W

　

200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid

Innovations

The manufacturing environment is strictly compliant with most advanced technological standards, ensuring our products a long term reliability.

Quality & Assurance

Our Cutting-Edge test equipment verifies that each of our products meets our high-quality standards

Customization

Thanks to the specialists of our Engineering Department, we have full control over both the hardware and the software of all our transceivers. Need your personal labelling? No problem, just ask and we provide!

Multi-Compatibility

ColorOptic offers a true cost-effective solution for all major platforms including the original vendor firmware.

Technical Support

Any issues with your equipment? We are already dispatching an engineer to your premises to fix it. We are 7x24 hours online supports.
