The " Combination Of Rigidity And Flexibility " Of Color Steel Sheets : Decoding The Core Technology Of Cold Bending Forming For Metal Plates

Color Steel Sheets: The "Combination of Rigidity and Flexibility"

1. Introduction to Color Steel Sheets: A Blend of Aesthetics and Functionality

2. Cold Bending Forming: The Key to Realizing "Rigidity and Flexibility"

Key Technical Points:

• Material Selection and Treatment:
  • High-quality base steel (e.g., galvanized steel) is selected for its corrosion resistance and formability.
  • Surface coating processes (e.g., zinc-aluminum alloy plating, organic film lamination) enhance both protection and flexibility.
• Roll Forming Design:

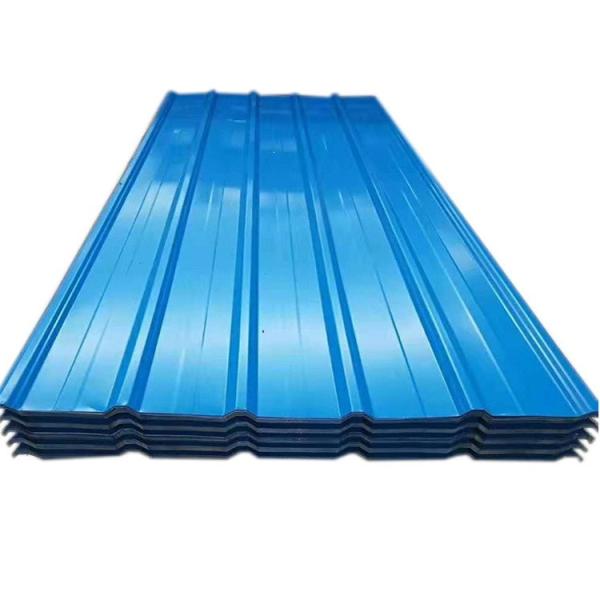

  • Multi-stage rolling dies are designed to gradually deform the plate, reducing stress concentration. For example, forming a corrugated color steel sheet may require 8–12 rolling passes to ensure uniform bending.
  • Die materials (e.g., carbide alloys) must have high hardness and wear resistance to maintain dimensional accuracy.
• Process Parameter Control:
  • Precision control of rolling speed (typically 5–20 m/min), roll pressure, and temperature (room temperature to ≤100°C) to avoid material cracking or coating damage.
    • Tension control systems are used to prevent plate warping, ensuring the final product has consistent rigidity.

3. Mechanical Principle: How Cold Bending Achieves Property Balance

• Rigidity Mechanism:
  Cold working hardening during bending increases the steel’s yield strength (e.g., from 235 MPa to 300 MPa), making the formed profile (e.g., C-shaped steel, Z-shaped steel) resistant to bending and deformation.
• Flexibility Mechanism:
  The steel’s plastic deformation capacity (elongation ≥20%) allows it to bend without fracture. The coating’s elasticity (e.g., polyester paint with 50% elongation) adapts to the plate’s deformation without cracking.

4. Technological Challenges and Innovations

• Challenges:
  • Thinner plates (e.g., ≤0.3 mm) are prone to wrinkling, while thicker plates (≥1.5 mm) require higher forming forces.
  • Complex profiles (e.g., curved roofs) demand precise die design to avoid stress concentration.
• Innovations:
  • Numerical Simulation: Using software like ANSYS to simulate forming processes, optimizing die designs and reducing trial-and-error costs.
  • High-speed Roll Forming: New equipment can achieve speeds of 50 m/min, improving productivity while maintaining precision.
  • Composite Material Integration: Laminating color steel sheets with foam or fiberglass to enhance insulation and flexibility without sacrificing rigidity.

5. Applications: Where "Rigidity and Flexibility" Matters

• Construction: Roof and wall panels of industrial plants, stadiums, and prefabricated buildings (e.g., corrugated sheets with 10–20-year service life).
• Transportation: Truck bodies and trailer panels, requiring impact resistance (rigidity) and formability for complex shapes.
• Household Appliances: Shells of refrigerators and air conditioners, demanding both aesthetic coatings and structural strength.

6. Future Trends in Cold Bending Technology

• Intelligent Manufacturing: Implementing IoT systems to monitor real-time forming parameters (e.g., pressure, temperature) for automatic adjustment.
• Green Production: Developing water-based coatings and low-energy consumption rolling processes to reduce environmental impact.
• Ultra-high-strength Materials: Exploring advanced high-strength steels (e.g., Q550) to achieve lighter weights with higher rigidity, expanding applications in aerospace and high-rise buildings.
