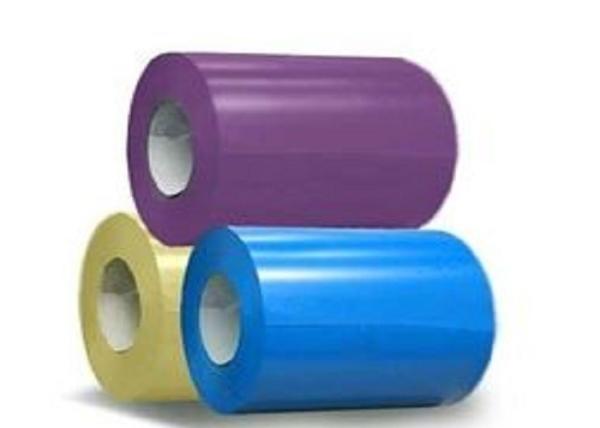

High Strength Prepainted Steel Coil , Color Coated Steel Coil JIS G3312 ASTM G550
High Strength Prepainted Steel Coil , Color Coated Steel Coil JIS G3312 ASTM G550
Specifications
Brand Name :
HANKE
Model Number :
DC51D DX51D SGCC ASTM
Certification :
ISO, KS
Place of Origin :
CHINA
MOQ :
25MT per size
Price :
negotiate
Payment Terms :
L/C, T/T
Delivery Time :
300000 per year
Packaging Details :
Standard Export package
Product Name :
Pre Painted Galvanized Steel Coil
Grade :
DX51D+AZ CGCH CGCC G550
Size :
(0.2-1.5)mm*(600-1250)mm
Certificate :
ISO9001 , KS D 3520
Appliance :
Roofing Walls Doors
Coil ID :
508mm 610mm
Color :
RAL color code or as customer's request
Description


Pre Painted Steel Coil Color Coated Steel Coil JISG3312 ASTM G550

1. Specification

Brand Name HANKE
Commodity Pre Painted Steel Coil
Standard AISI, ASTM, BS, DIN, GB, JIS,etc.
Paint Thickness Top Side:14-25um Back:5-10um
Nominal Thickness 0.15~1.5mm
Nominal Width 600~1250mm
Coating Z30~Z275
AZ30~AZ150
Color Choose from RAL Code or by Client's Requested
Length Any Length Based on Coil Weight or by Requested
Substrate Steel Hot-dip Galvanized Steel with Small Skin-passed Spangle or Zero Spangle
Hot-dip Alum-zinc Coated Steel
Electrical Galvanized Steel
Cold Rolled Steel
Type of Finish Paint polyester(PE)
silicon modified polyester(SMP)
high-durability polyester(HDP)
polyvinylidene fluoride (PVDF)
Steel Grade CGCC,TDC51D+Z,G550, S550GD+Z
Delivery Time 30~45 days after T/T prepayment or L/C date


2. Description

When hot-dip galvanized steel is painted, the duplex system provides a more sophisticated manner of corrosion protection. The galvanized coating protects the base steel by providing both cathodic and barrier protection. The paint coating acts as a barrier protection for the hot-dip galvanized coating and significantly reduces the corrosion rate of the zinc.

The increased lifetime that can be provided with a combination of paint over galvanized steel makes this type of corrosion protection system very attractive for structures designed to last a long time in aggressive atmospheres.


3. Advantages of HANKE PPGI :

1. Various size and color

2. Strict quality control system

3. High strength and long span


4. Application:

1. Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.
2. Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.
3. Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4. Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc.


5. Our service:


1) Free sample offered;
2) Flexible payment term with L/C at sight,TT ,ect;
3) Big quantity supply and short delivery time;
4) Stable and reliable quality
5) Long term after-sale service.
