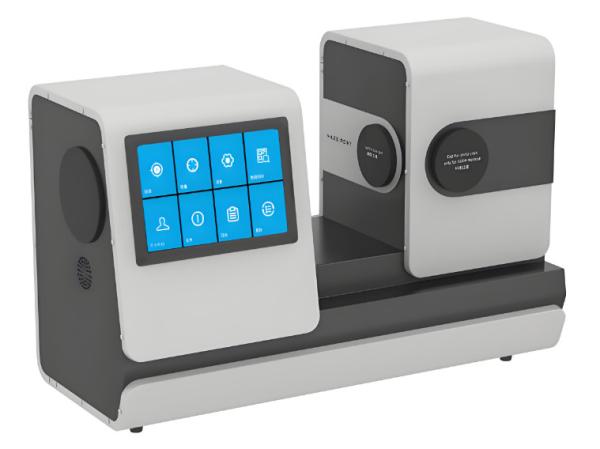

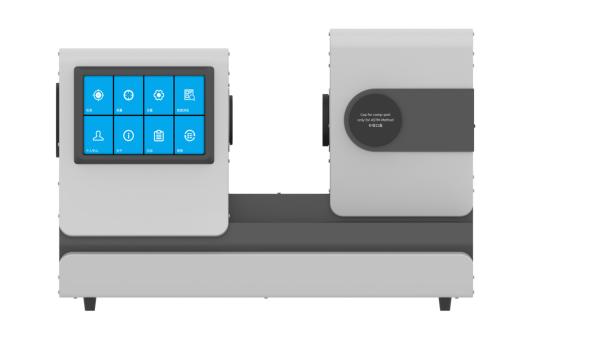

Professional Visible Infrared Spectrum Haze Meter CS-730
Professional Visible Infrared Spectrum Haze Meter CS-730
Professional Visible Infrared Spectrum Haze Meter CS-730
Professional Visible Infrared Spectrum Haze Meter CS-730
Specifications
Brand Name :
CHN spec
Model Number :
CS-730
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Description

The visible-infrared spectrum haze meter CS-730 is professionall used for haze,transmittance ,clarity, and chromaticity detection in the fields of cover glass, optical film, lens, diffuser, transparent packaging, etc. Its wavelength range is 400-1100nm, and its 1nm ultra-high resolution can accurately measure spectral resolution can accurately measure spectral data. The 140mm ultra wide sample pool design is convenient for placing samples of different specifications. The 7-inch touch screen makes the operation intuitive and convenient.

The visible-infrared band spectral haze meter CS-730 complies with many international and domestic standards, with rich measurement parameters, a measurement range of 0-100%, a haze esolution of 0.01, a repeatability of ≤0.05, and accurate and reliable measurement. A variety of light sources are esolution of are available to adapt to different measurement scenarios. It has RS-232, USB-A, and USB-B interfaces for convenient data transmission, and also comes with PC management software for data management and analysis. The power supply is 220V (110V can be customized), and it comes with a power cord for easy use. Whether it is scientific research experiments or industrial production quality inspection, CS-730 is an ideal choice.

1. Features

Ultra-wide wavelength range 400-1100nm 140mm ultra-wide sample pool

Professional Visible Infrared Spectrum Haze Meter CS-730 Professional Visible Infrared Spectrum Haze Meter CS-730

1nm ultra-high resolution 7-inch touch screen display

Professional Visible Infrared Spectrum Haze Meter CS-730 Professional Visible Infrared Spectrum Haze Meter CS-730

2. Application areas

Professional Visible Infrared Spectrum Haze Meter CS-730

3. Parameters

Model CS-730
Wavelength range 400-1100nm
Wavelength interval 1nm
Optical path structure 0/d
Measurement parameters Haze (HAZE), transmittance (T), clarity (C), CIE Lab, LCh, CIE Luv, XYZ, Yxy, spectral transmittance, Hunter Lab Munsell MI, CMYK, whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), metamerism index Milm, APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*94, ΔE*00)
Light source

Haze/transmittance: CIE-A, CIE-C, CIE-D65

Chroma index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
Follow standards ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c标准
Measuring range 0-100%
Spectral response CIE spectral function Y

Illumination and sample

aperture size

 18mm/25.4mm
Haze resolution 0.01
Haze repeatability ≤0.05
Through repeatability ≤0.05
Interface RS-232,USB-A,USB-B
Power supply 220V (with own power cord), 110V can be customized
Standard PC management software, definition standard film
