Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
Specifications
Brand Name :
CHN spec
Model Number :
DS-810N / DS-812N / DS-816N
Certification :
CE
Place of Origin :
China
MOQ :
1
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Description

More tha 30 color indicators, including pt-co, Gardner, Saybolt, China, the United States, European pharmacopoeiastandards

Intelligent zero calibration ensures accurate measurement of △E*ab≤0.01

The minimum liquid addition is reduced to 1ml, 10mm and 50mm cuvette are standard, and 33mm and 100nm cuvette are optional

Fast measurement, and a single measurement takes only 1.5 seconds

The thermostatic sample tank(upto90°C) design ensures sample fluidity

The 7-inch touch screen make the instrument more user friendly and the instrument can store more than 100,000 pieces of data

一,Product characteristics

  • Ultra-wide wavelength range 360-780nm

Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

  • More than 30 chroma indicators

Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

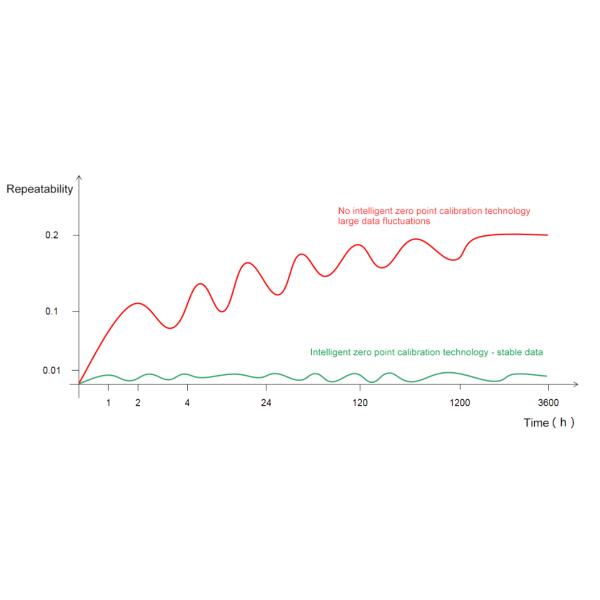

  • Intelligent zero calibration technology is used to ensure data stability of 0.01

Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

  • Minimum sample request reduced to 1ml

Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

  • The PTC heating module produces a constant temperature of up to 90°C
    Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N
  • Support OTA online upgrade to update chroma indicators and new functions atanytime
    Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

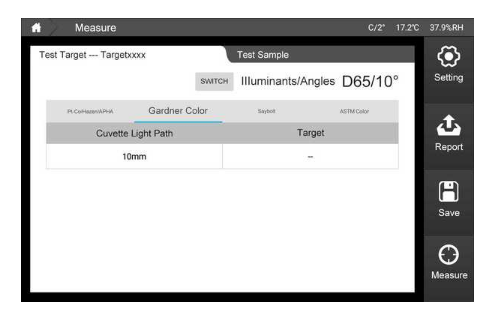

  • 7 inch touch screen operation, clear display of measurement data
    Benchtop liquid Spectrophotometer DS-810N / DS-812N / DS-816N

二,Technical parameter

Product

model

 DS-810N DS-812N DS-816N
Measurement condition

d/0(,0)(:CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c,GB/T 3555,ASTM D156,GB/T 6540,ASTM D1500,ASTM D1209,ASTM

D5386,ASTM D6045,ASTM D6166,ASTM D1502)

Stand-alone operation

Support

Integrating sphere

 Φ40mm,Avian-D Fully diffuse surface coating

Lighting source

 CLEDs(Full band balanced Led light source)
Inductor

Dual optical sensor array sensor
Wavelength range

360-780nm
Wavelength interval

10nm

Half-band width

 5nm

Measuring range

 0~200%

Resolution

 0.0001

Observer Angle

 2°/10°

Observation light source

 A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V4

Display

 Pharmacopoeia color number, transmission map/data, sample chromaticity value, color difference value/map, pass/fail result, color deviation, color simulation, historical data color simulation, manual input of standard sample, test report

Measuring time

 ≤1.5s

Measuring optical path

 Standard: 10mm glass cuvette, 50mm glass cuvette (optional 33mm and 100mm glass cuvette)

Color space

 CIE Lab,LCh,CIE Luv,XYZ,Yxy,Transmissivity, Hunter Lab Munsell,MI,CMYK

Other indicators

Pharmacopoeia (Chinese Pharmacopoeia, European Pharmacopoeia, American Pharmacopoeia),WI(ASTM E313-20,ASTM E313-73,CIE,ISO2470/R457,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-20,ASTM E313-73),Tint(ASTM E313-20),Allochromic index Milm,APHA,Hazen,Pt-Co(Platinum-cobalt index),Gardner(Gardner index),Iron cobalt index,Saybolt(Seibert index),ASTM Color,EBC(Beer color),ICUMSA Color(Sugar chroma)

Repeatability

 Transmittance: standard deviation ≤0.08%
Colorimetric value: ΔE*ab≤0.015 standard deviation, maximum ≤0.04

Transmittance: standard deviation ≤0.08%
Colorimetric value: ΔE*ab≤0.01

standard deviation, maximum ≤0.03

Color difference formula

 ΔE*ab < 0.25 ΔE*ab < 0.25 ΔE*ab < 0.25

Heating function

 /

Heating temperature range

 /
