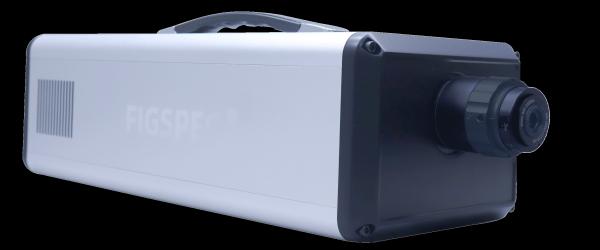

USB3.0 FS-2A Full Spectrum Hyperspectral Camera
USB3.0 FS-2A Full Spectrum Hyperspectral Camera
Specifications
Brand Name :
CHNSpec
Model Number :
FS-2A
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month1、Product features
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Spectral Range :
900-2500nm
Scaning Method :
Built-in Push-broom
Camera Interface :
USB3.0
Operating Temperature :
0-40°C
Description

USB3.0 FS-2A Full Spectrum Hyperspectral Camera

The FigSpec® series adopts a high-diffraction-efficiency transmission grating spectroscopic module combined with a high-sensitivity area array camera, integrated with built-in push-broom scanning and an auxiliary imaging camera. This design eliminates the need for an external scanning mechanism and complex focusing, making operation far more convenient. Compatible with standard C- mount lenses, it enables rapid acquisition of spectral imagery.

Shortwave Near Infrared:

  • Spectral Range: 900-2500 nm
  • Spectral Resolution: Better than 10 nm
  • Spectral Channels: Up to 250
  • Image Resolution: Up to 640 x 640

Typical Application

USB3.0 FS-2A Full Spectrum Hyperspectral Camera


Technical Parameters

Spectral
Range
 900-2500nm
Dispersion
Element
 Transmission Grating
Scaning
Method
 Built-in Push-broom
Number of Spectral
Channels
 ≥250
Number of Spatial
Channels
 ≥640×640
Spectral Sampling
Interval
 ≤6.5nm
Spectral Resolution
(FWHM)
 ≤10nm
F-Number
 F/2.5
Detector
Type
 MCT
Srnsor
Size
 ≥9.6×7.68mm
Pixel
Size
 ≥15um×15um
Effective
Bit Depth
 ≥14bits
Lens Focal
Length
 25mm
Field of View
(FOV)
 21.7°@f=25mm
Instantaneous FOV
(IFOV)
 0.59mrad@f=25mm
Cooling
Method
 Stirling Cooling
Effective Slit
Length
 ≥9.6mm
Slit
Width
 ≤25um
Frame
Rate
 200fps
Operating
Temperature
 0-40°C
Storage
Temperature
 0-50°C
Camera
Interface
 USB3.0
Application
Software
FIGSPEC CAM, FIGSPEC Studio, Image Analysis Software
Data
Format
Compatible with SPE, HDR, SCP formats
Auxiliary Imaging
Fuction
Auxiliary viewfinder camera for monitoring the shooting area
Power
Supply
Built-in battery
