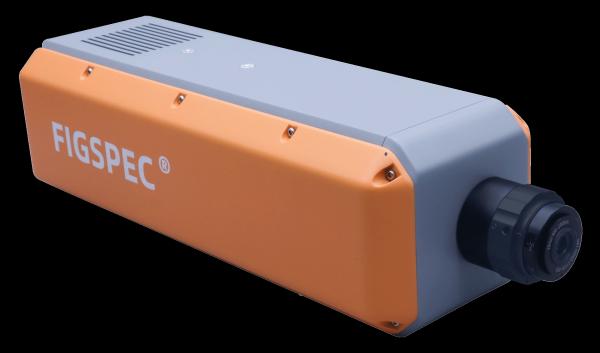

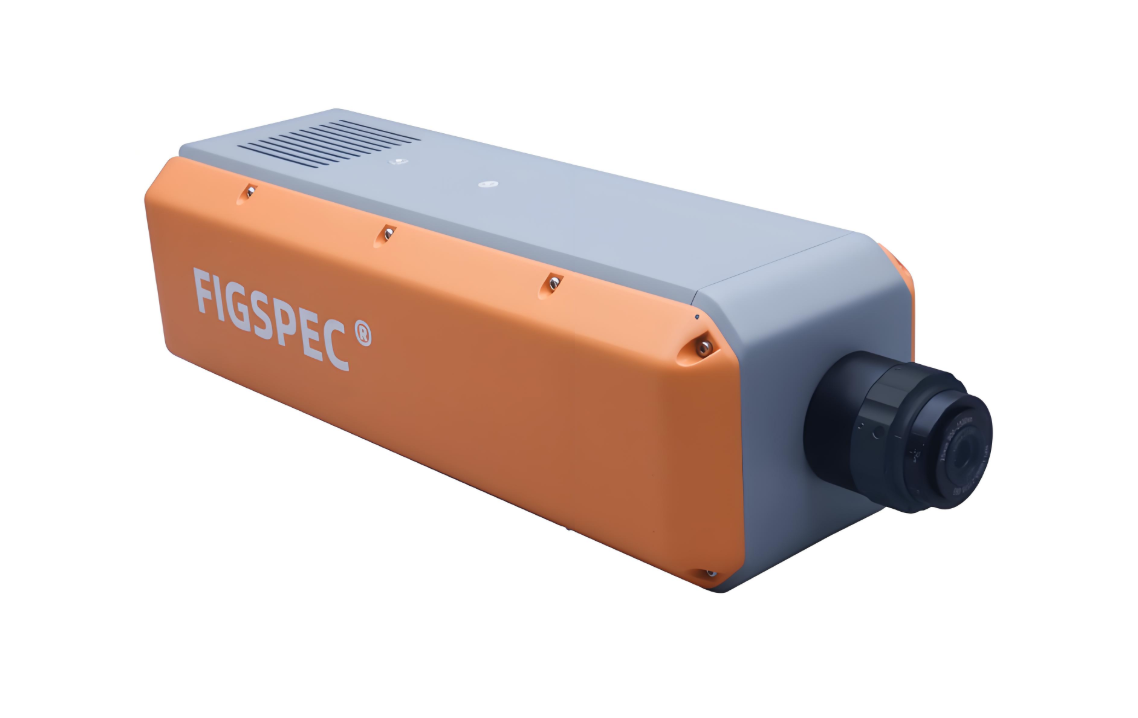

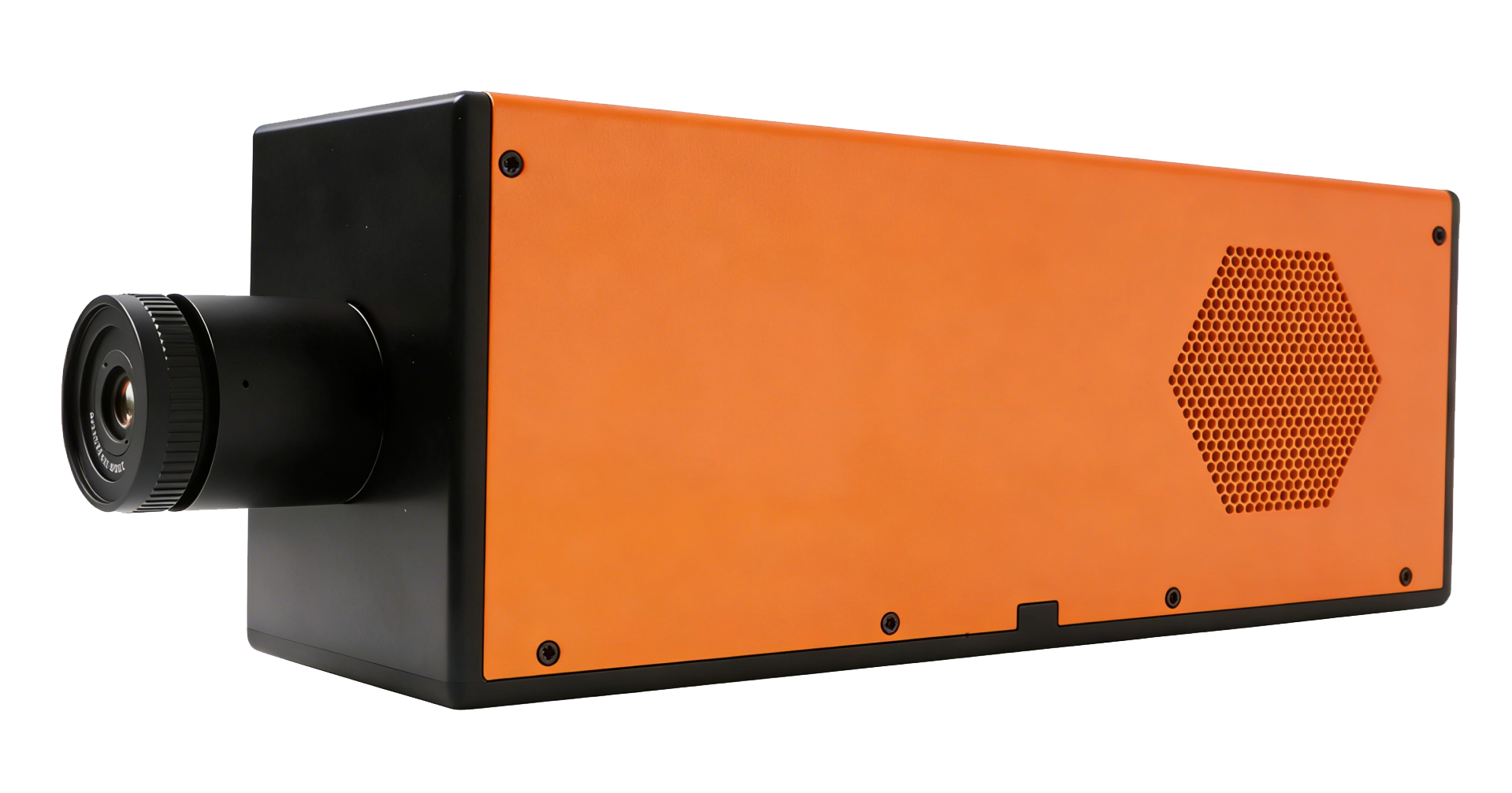

900-2500nm FS1A Series-Hyperspectral Camera Line Scan
900-2500nm FS1A Series-Hyperspectral Camera Line Scan
900-2500nm FS1A Series-Hyperspectral Camera Line Scan
900-2500nm FS1A Series-Hyperspectral Camera Line Scan
Specifications
Brand Name :
CHNSpec
Model Number :
FS1A
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month1、Product features
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Spectral Range :
900-2500nm
Operating Temperature :
0-40°C
Storage Temperature :
0-50°C
Camera Interface :
USB3.0
Description

900-2500nm FS1A Series-Hyperspectral Camera Line Scan

Short-wave Near-Infrared (SWIR):

  • Spectral Range: 900-2500 nm, with a wavelength resolution better than 10 nm, supporting up to 250 spectral channels
  • Applications: Widely used in composition analysis, material identification, machine vision, and agricultural product quality assessment

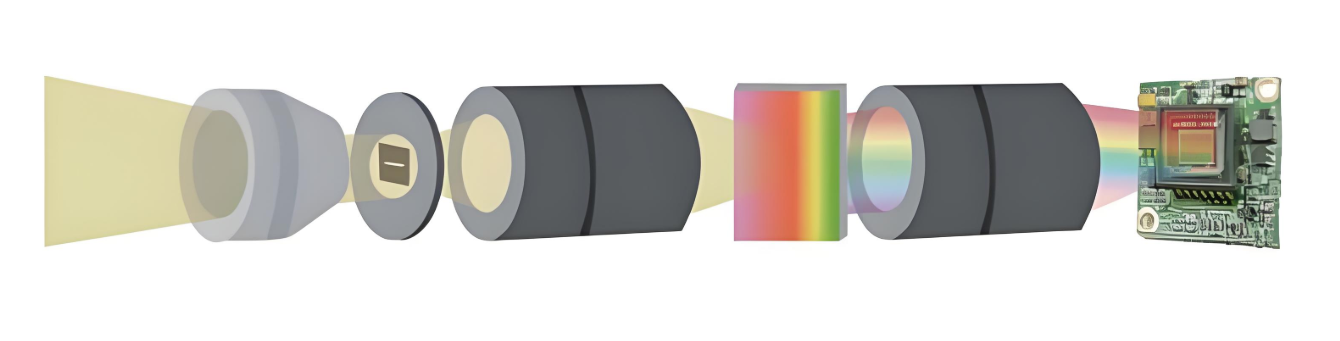

Measurement Principle

900-2500nm FS1A Series-Hyperspectral Camera Line Scan

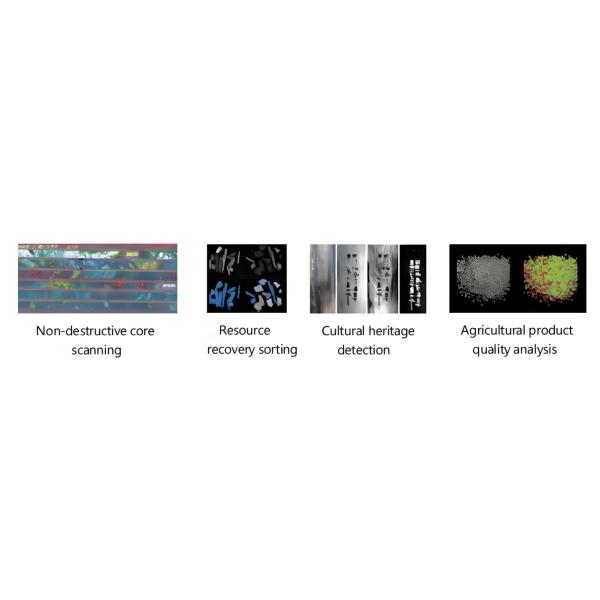

Typical Application

900-2500nm FS1A Series-Hyperspectral Camera Line Scan


Technical Parameters

Spectral
Range
 900-2500nm
Dispersion Device
Tranmission
 Transmission Grating
Number of Spectral
Channels
 ≥250
Number of Spatial
Channels
 ≥640
Spectral Sampling
Interval
 ≤6.5nm
Spectral Resolution
(FWHM)
 ≤10nm
F-Number
 F/2.5
Detector
Type
 MCT
Detector
Size
 ≥9.6×7.68mm
Pixel
Size
 ≥15um×15um
Effective Bit
Depth
 ≥14bits
Lens Focal
Length
 25mm
Field of
View
 21.7°@f=25mm
Instantaneous
Field of View
 0.59mrad@f=25mm
Cooling
Method
 Stirling Cooling
Effective Slit
Length
 ≥9.6mm
Slit
Width
 ≤25um
Frame
Rate
 200fps
Operating
Temperature
 0-40°C
Storage
Temperature
 0-50°C
Camera
Interface
 USB 3.0 or Gigabit Ethernet
Application
Software
FIGSPEC SCAN2.0,FIGSPEC Studio Imaging Analysis Software
Data
Formats
Compatible with spe, hdr, scp formats
