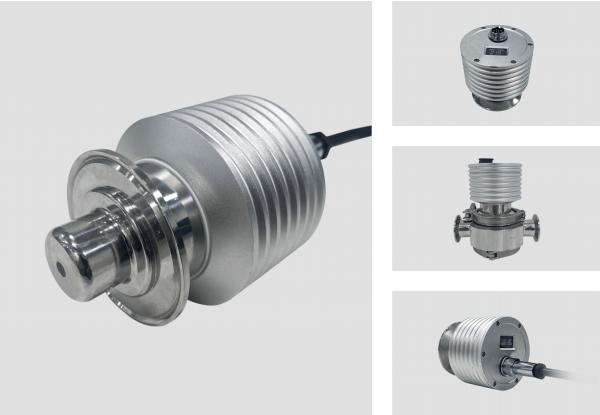

CHNSPEC Online Refractometer CRN52 High Accuracy
CHNSPEC Online Refractometer CRN52 High Accuracy
Specifications
Brand Name :
CHNSpec
Model Number :
CRN52
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month1、Product features
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Concentration Range :
0.0--90% Brix
Refractive Index Range :
1.33299--1.51782
Temperature Range :
Process: -20--70°C (max 100°C); Cleaning: 0--120°C; supports CIP (Cleaning in Place) & SIP (Sterilization in Place)
Resolution :
0.01%; refractive index 0.00001; temperature 0.1°C
Accuracy :
±0.1%; refractive index 0.0001; temperature 0.5°C
Description

1.Product Features

Flexible Installation: Compatible with pipelines, tanks, and other complex scenarios, saving installation time and cost.

Stable Detection: Advanced technology ensures measurements are unaffected by medium characteristics (bubbles, color, turbidity) or process conditions (pressure, flow), delivering stable and accurate data.

Easy Calibration: Probes are strictly calibrated before delivery, with built-in temperature compensation; ready-to-use upon installation.

Smart Customization: Built-in concentration data processing system allows users to create on-site data models and customize parameters to improve measurement accuracy.

Self-Diagnosis & Maintenance: Equipped with probe self-diagnosis function to quickly locate faults and reduce downtime.

On-site Calibration: Supports RI calibration and adjustment for real-time error correction.

Intelligent & Durable: Uses smart chips with no reagent consumption, low power consumption, and a probe light source lifespan of up to 100,000 hours.

One-Stop Solution: With the above advantages, provides a comprehensive solution for industrial detection, improving production efficiency and quality monitoring.

2.Technical Specifications

Model

CRN52
Measured Parameters Refractive index, temperature, concentration, Brix (or other scales)
Displayed Parameters Refractive index (nD), Brix (temperature-compensated to sucrose), concentration (Conc), temperature (°C)
Data Processing System Probe status diagnosis, RI calibration and adjustment, self-modeling, multi-point temperature compensation, concentration curve correction
Concentration Range 0.0--90% Brix
Refractive Index Range 1.33299--1.51782
Resolution 0.01%; refractive index 0.00001; temperature 0.1°C
Accuracy ±0.1%; refractive index 0.0001; temperature 0.5°C
Temperature Range Process: -20--70°C (max 100°C); Cleaning: 0--120°C; supports CIP (Cleaning in Place) & SIP (Sterilization in Place)
Process Connection Compact clamp (optional flanges: DN25 / DN50 / DN65 / DN80)
Wetted Materials SS316L + Sapphire (optional: PTFE, Hastelloy, Titanium, Tantalum)
Power Supply Standard: 24 VDC; Optional: 100--240 VAC, 50--60 Hz, 30VA
Cable Length Standard: 2m; extendable up to 200m
Display Built-in 1.4-inch screen
Signal Output 4--20mA / RS485 / RS232 / USB
Protection Rating Wetted parts: IP68
Pressure Range ≤1.5MPa
Explosion-Proof Rating Ex ia IIC T6 Ga
Net Weight ≈1.0kg
Cleaning Options CRN5-C1 Ultrasonic Cleaning Module; CRN5-C2 High-Pressure Washing Module
Installation Options Small-pipe adapters, three-way/four-way pipe with window, sanitary adapters (customized per installation conditions)
Other Options Remote display controller, multi-channel data acquisition system (up to 120 channels), terminal data acquisition system, wireless transmission module
Special Scales Customizable per customer requirements
