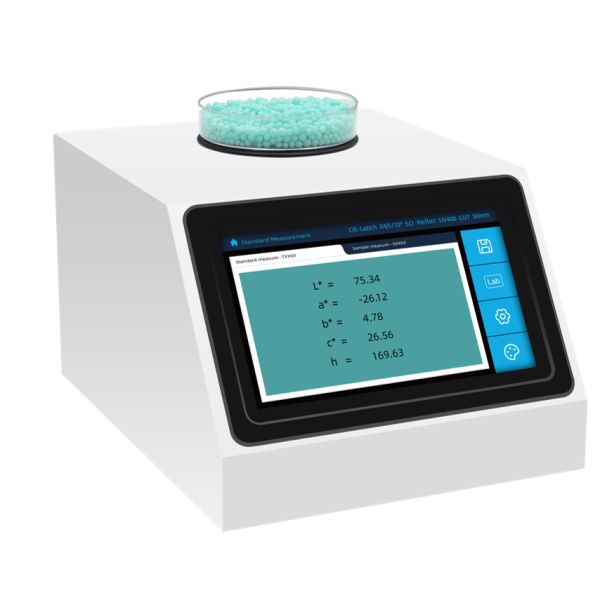

50mm Large-Aperture Spectrophotometer DS-807
50mm Large-Aperture Spectrophotometer DS-807
Specifications
Brand Name :
CHNSpec
Model Number :
DS-807
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month1、Product features
Delivery Time :
5-7 days
Packaging Details :
Carton box with foam package
Wavelength Range :
400–700nm
Wavelength Interval :
10nm
Measurement Aperture :
50mm
Operating Temperature :
5–40°C, ≤80% RH (non-condensing)
Storage Temperature :
–20–45°C, ≤80% RH (non-condensing)
Data Interface :
USB
Description

1. Product Features

50mm ultra-large measurement aperture, better suited for testing uneven samples

Light source lifespan of 2 million measurements, no fear of light source damage

Data storage up to 10,000 records, store as much as you need

Fully sealed test port, prevents particles and dust from entering the instrument

50mm Large-Aperture Spectrophotometer DS-807

2. Technical Parameters

Model DS-807
Illumination Method D/8, including specular reflection (SCI)
Integrating Sphere Diameter 100mm
Light Source Full-spectrum balanced LED
Wavelength Range 400-700nm
Reflectance Measurement Range 0–200%, resolution 0.01%
Wavelength Interval 10nm
Measurement Aperture 50mm
Observation Light Sources A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWFU30,U35,DLE,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8
Standard Observers 2° and 10° Standard Observers
Measurement Time Approx. 1 second
Color Spaces CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy
Chromaticity Indexes WI (ASTM E313-20, ASTM E313-73, CIE, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Metamerism Index (Milm), Color Fastness to Crocking, Color Fastness to Change, ISO Brightness, R457, A Density, T Density, E Density, M Density, Opacity, Tinting Strength, Intensity
Color Difference Formulas ΔEab, ΔECH, ΔEux, ΔEcmc, ΔE94, ΔE00, ΔEab (Hunter), 555 Shade Classification
Repeatability Standard deviation ΔE*ab ≤ 0.03 (Condition: after warm-up calibration, measure the white tile 30 times at 3s intervals, average value)
Inter-instrument Error ΔE*ab ≤ 0.4 (Based on average measurement of 12 BCRA II color tiles)
Maximum Data Storage 10,000 records
Dimensions 202 × 264 × 152mm
Weight Approx. 3kg
Power Supply 100~240V 50/60HZ
Measurement Modes Single measurement, average measurement
Light Source Lifetime 10 years / 2 million measurements
Display 7-inch IPS full-view LCD
System Languages Simplified Chinese, English
Data Interface USB
Operating Temperature Range 5–40°C, relative humidity ≤80% (at 35°C), non-condensing
Storage Temperature Range -20–45°C, relative humidity ≤80% (at 35°C), non-condensing
Standard Accessories Petri dish, black cavity, white calibration plate, data cable, power cable
