FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera
FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera
FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera
FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera
Specifications
Brand Name :
CHNSpec
Model Number :
FS-19 Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month
Delivery Time :
5-7days
Packaging Details :
carton box
Spectral range :
900-1700nm
Spectral method :
Transmission grating
Transmission efficiency :
＞60%
Number of spatial pixels :
640
Description

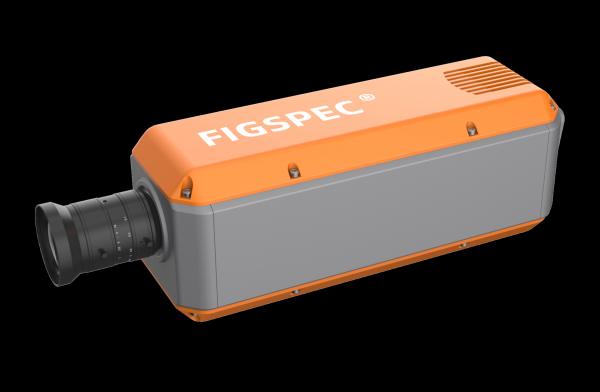

FS-19S/19MY/19M/19X is an online high-speed short-wave infrared hyper-spectral camera specially launched by CHNSpec for the industrial sorting field. Its high frequency characteristics meet the requirements of the indus-trial field for scanning speed. Its sturdy structure and compact body also make its installation scenario more flexible.

  • Spectral range: 900-1700nm
  • Imaging speed: up to 7800fps
  • Spectral resolution: 8nm
  • Provide hyperspectral image processing software
  • Applicable to various environments

FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera

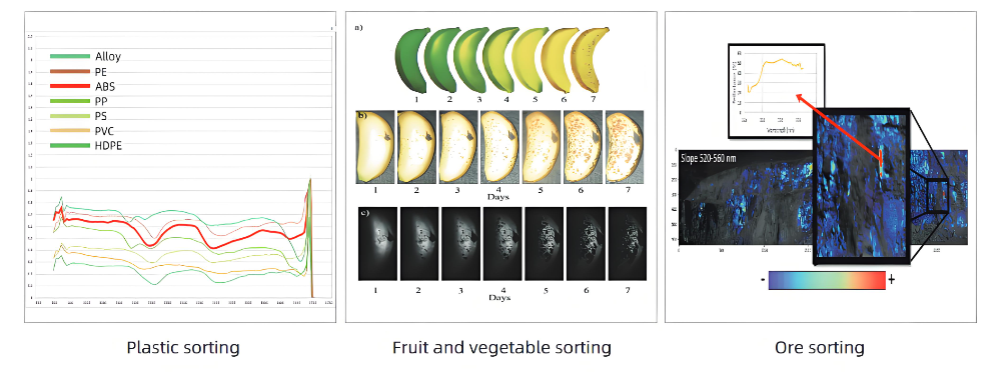

Application fields

FS-19 Series Industrial online high-speed short-wave infrared hyperspectral camera


Parameters


Product number FS-19S FS-19-MY FS-19M FS-19X
Lighting method Passive lighting (excluding light source)
Spectral method Transmission grating
Spectral range 900-1700nm
Number of spectral bands 200 150 100
Spectral resolution ＜8nm ＜9nm ＜13nm
Slit width 25um
Transmission efficiency ＞60%
Stray light ＜0.5%
Number of spatial pixels 640
Pixel size 15um
Lens focal length Standard 8mm (optional 6mm, 12mm, 25mm, 35mm lenses)
Field of view 62°(8mm focal length lens), 77°(6mm lens)
Imaging speed 724fps

8 spectral channels > 7800fps

16 spectral channels > 4900fps

 2400fps 3500fps
Detector InGaAs
SNR(Peak) 600/1
Camera output Cameralink GigE Cameralink
Camera interface C-Mount
Accessories Lens, data cable, power supply, data acquisition card
Technical Support SDK can be provided to support secondary development
ROI Single region Multiple regions Single region
Size Length*Width*Height: 347mm*122mm*136mm
