Oil Cooler Fin And Tube Heat Exchanger With Customized Size / Capacity
Oil Cooler Fin And Tube Heat Exchanger With Customized Size / Capacity
Oil Cooler Fin And Tube Heat Exchanger With Customized Size / Capacity
Oil Cooler Fin And Tube Heat Exchanger With Customized Size / Capacity
Specifications
Brand Name :
Ecool
Model Number :
EHX010
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets/time
Delivery Time :
2-3 weeks
Packaging Details :
suitable for sea shipment in container
Name: :
Oil Cooler Fin and Tube Heat Exchanger Core / Custom Cooler Coil
Size and capacity :
customized
Coil Materials :
Cu/Al/SS304/SS316/Ta
Anti-corrosion choices: :
stainless steel
Max. length :
12m
Max. width :
2.7m
Description

Oil Cooler Fin and Tube Heat Exchanger Core / Custom Cooler Coil

1. Oil Cooler Heat exchanger Products Advantages

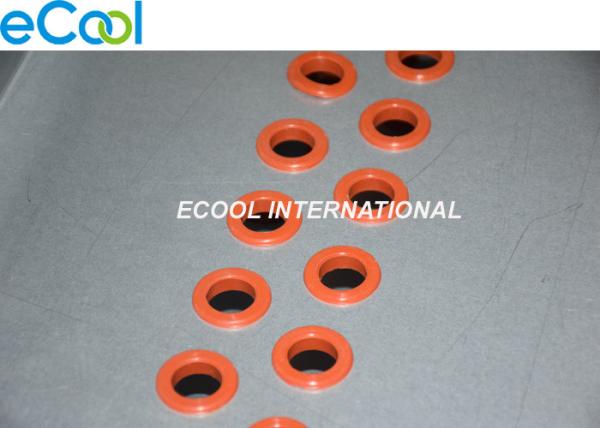

  • Oil cooler heat exchanger has rubber rings
  • Oil cooler Heat exchanger could be stainless steel materials , for other materials, we could provide pre-coated Epoxy, Epoxy,Heresite, Blygold coating.
  • Oil Cooler heat exchanger could be Max. 12 meter in length and 2.7meter in width.
  • One set order for oil cooler is acceptable
  • We use Italian design software to eusure the accurate of oil cooler heat exchanger.
  • Oil coolers are also suit for special coolant such as CO2 or secondary refrigerant.

2.Delivery Contents

  • CAD drawings for confirmation and review

  • Oil cooler Heat exchangers

  • Completed and details data of heat exchangers

If customer donsn't have a drawing of tube and fin heat exchanger , you could provide the basic data as following form, and we will make the design.

3.Form of information needed for oil cooler heat exchanger

oil cooler/ hot water heater coil select 　 　
Capacity KW 　
Coolant Water other %
Glycol % Propylene glycol %
Liquid Inlet temerature(DB) C 　
Liquid Outlet temperature(DB) C
Flow M3/h
Altitude/Ap M/Pa 　
Air flow/Face Velocity M3/h m/s
Air Inlet temperature(DB) C
Air Inlet temperature(WB)/
relative humidity		 C/%
Frame dimension mm L W H

4. Steps of delivery Oil cooler Heat Exchanger

  • First stage---Help clients to design and select models, reasonably control cost and offer price to increase client’s bidding rate

  • Confirm stage---Provide accurate design drawing for the confirmation of user, fix the cost to avoid temporary changes

  • Production stage---produce according to the confirmed plan and ensure delivery accurately and quickly

5. Materials selections of oil cooler heat exchanger

​

Available materials 　 　 　 　
Heat exchange tube Material
Options		 Cu 　 　
SS304 　 　
33316L 　 　
Cu Ni 　 　
Ta 　 　
Fins Al Hydrophilic 　
Cu Exposy 　
SS 304 Blygold 　
SS316L Heresite 　
Ta 　 　
Frame DC51D+Z Galvanized steel 　
Al 　 　
SS304 　 　
SS316L 　 　
Cu 　 　
Head pipe Cu 　 　
Steel 　 　
SS304 　 　
SS316L 　 　
Cu Ni 　 　
Ta 　 　

Production EquipmentOil Cooler Fin And Tube Heat Exchanger With Customized Size / Capacity
