06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
Specifications
Model Number :
06CC550
Condensertype :
Air-cooled
Supply Ability :
100PC
Brand Name :
Carlyle
Compressor Type :
Semi Hermetic Reciprocating
Packaging Details :
WOODEN CASE
Payment Terms :
Western Union,T/T
MOQ :
1
Delivery Time :
1 Month
Horse Power :
15HP
Price :
Discussed
Certification :
CE
Commercial Refrigeration :
HVAC&Cooling Units
Place of Origin :
China
Refrigerant :
R22, R404A, R507
Description
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
Product Overview
Heavy-Duty Two-Stage Compression for Low-Temperature Applications
Built specifically for large-scale cold storage, commercial freezers, and industrial chillers, this 15HP semi hermetic reciprocating refrigeration compressor utilizes an advanced two-stage compression mechanism within a single compact housing. Featuring 6 cylinders—4 cylinders for low-pressure compression and 2 cylinders for high-pressure compression—it provides a low-stage displacement of 47.6 m³/h and high-stage displacement of 23.8 m³/h at 1450 rpm. An integrated plate heat exchanger subcooler provides maximum liquid subcooling, allowing systems to operate with lower refrigerant charge while maintaining stable thermal capacity under severe freezing conditions.
Reduced Pressure Ratios and Lower Energy Consumption
By splitting total compression work into two distinct stages in one body, this semi hermetic reciprocating refrigeration compressor operates at significantly lower compression ratios per cylinder. This optimized internal pressure balance reduces mechanical stress, lowers discharge gas temperatures, and eliminates the need for external booster compressors or additional subcooling skids. Consequently, it protects oil viscosity and extends total service life under heavy low-temperature workloads.
Eco-Friendly Refrigerant Support and Heavy Frame Construction
Engineered for global cooling standards, this high-efficiency semi hermetic reciprocating refrigeration compressor is fully UL-approved and optimized for eco-friendly refrigerants including R22, R404A, and R507. Supported by a robust 239 kg cast-iron frame, high-flow Swedish steel valve plates, and a generous 9.0 L lubricant reservoir, it ensures exceptional bearing protection and reliable continuous duty across commercial and industrial refrigeration installations.

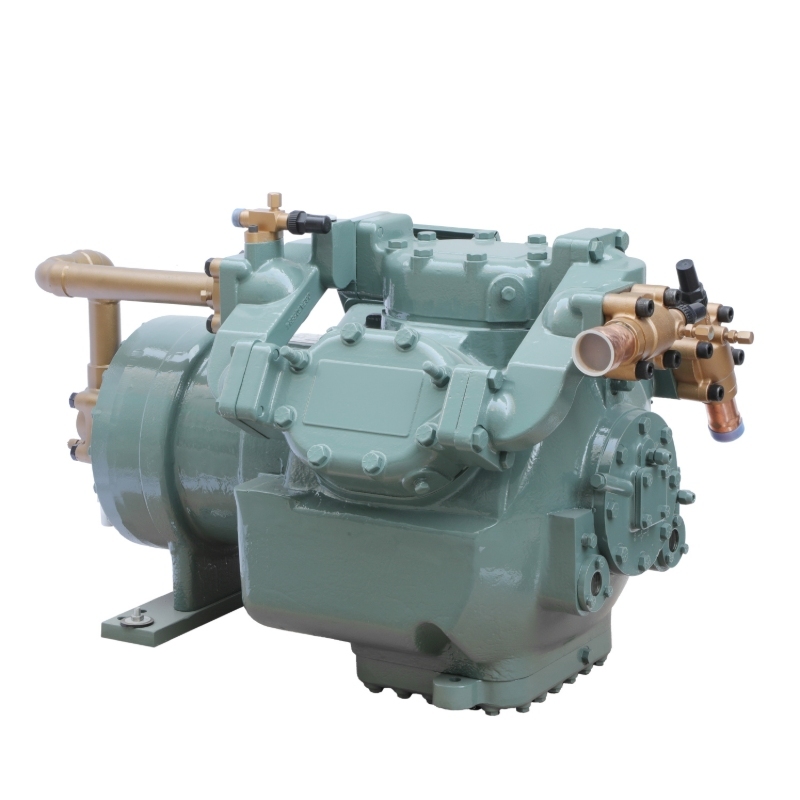

Product Image
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor

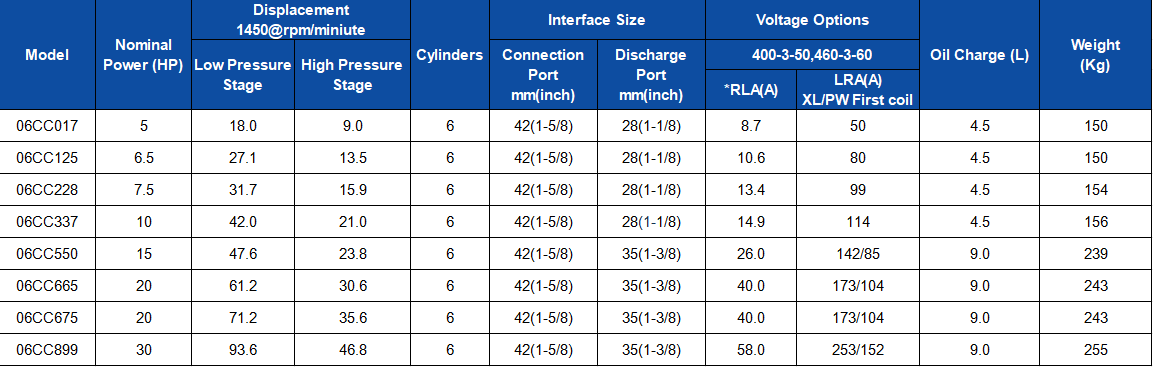

Technical Specifications
Model 06CC550
Nominal Power 15 HP
Refrigerant Type R22, R404A, R507
Rated Current 26 A
Oil Charge 9 L
Weight 239 kg
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
Company Introduction
Ruifujie is a modern industrial refrigeration supplier specializing in high-performance scroll, piston, rotary, semi-hermetic, and screw compressors, as well as complete cold room systems and ice machinery. We provide comprehensive OEM/ODM customization services to meet distinct regional voltage standards and engineering specifications. Our equipment is exported to major international markets including Australia, Thailand, and Brazil, where Ruifujie maintains strong partnerships with global distributors and earns high acclaim across B2B channels.
06CC550 15HP Semi Hermetic Reciprocating Refrigeration Compressor
Frequently Asked Questions
Q1: What are the exact low-pressure and high-pressure stage displacement figures for the 06CC550?
At 1450 rpm, the 06CC550 model provides a low-pressure stage displacement of 47.6 m³/h across 4 cylinders and a high-pressure stage displacement of 23.8 m³/h across 2 cylinders.
Q2: How does the internal two-stage design benefit low-temperature applications?
By dividing compression across two stages inside one body, the compression ratio per stage is significantly reduced, lowering operating temperatures and power consumption without requiring separate booster compressors.
Q3: What lubricant oil capacity and electrical ratings are specified for the 06CC550 model?
The unit features a 9.0 L oil charge capacity, operates on 400V-3-50 / 460V-3-60 electrical supply.
Q4: What is the standard production lead time for bulk orders?
Standard bulk orders are typically completed and prepared for dispatch within 10 to 15 working days.
Q5: What warranty period is provided for this compressor unit?
We provide a standard 12-month quality warranty starting from the date of shipment for all our compressor units.
Low-Temperature System Wholesale Procurement
Selecting the right two-stage semi hermetic reciprocating refrigeration compressor is essential for optimizing energy performance and maintaining stable deep-freezing conditions in industrial facilities. Ruifujie provides technical consultation, precision component selection, and customized OEM solutions tailored to your engineering requirements. Please send us your project parameters, operating temperatures, preferred refrigerant, and estimated quantity today, and our engineering team will issue a comprehensive technical proposal within 8 hours.
