06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
Specifications
Model Number :
06NA2174S7EA-A00
Brand Name :
Carlyle
Packaging Details :
WOODEN CASE
Payment Terms :
Western Union,T/T
Condensertype :
Air-cooled
Horse Power :
90HP
Supply Ability :
100PC
Compressor Type :
Screw
MOQ :
1
Delivery Time :
1 Month
Price :
Discussed
Commercial Refrigeration :
HVAC&Cooling Units
Certification :
CE
Place of Origin :
China
Refrigerant :
R134a
Description
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
Product Overview
High-performance HVAC screw compressor designed for industrial refrigeration and process cooling applications with superior efficiency and reliability.
Lowering Expenses via Economizer Integration
Managing utility budgets in high-capacity HVAC and process cooling applications requires superior part-load efficiency. Designed with a dedicated 1-3/8 in economizer port, this high-performance HVAC screw compressor boosts system subcooling and cooling capacity without proportionally increasing power consumption. Combined with a 3-step capacity control system (100%-66%-33%), it dynamically matches variable thermal loads, lowering operating expenses and reducing energy waste across large commercial facilities.
High Reliability Under Severe Duty
Frequent operational stops and heavy thermal cycles can cause severe wear on rotor bearings and internal seals. Built with patented rotor geometry, premium SKF/NSK rolling bearings, and an internal check valve, this heavy-duty HVAC screw compressor eliminates rotor reverse rotation at shutdown and minimizes internal pressure leakage. An integrated oil filter, discharge muffler, and internal safety relief valve ensure smooth, continuous duty while extending routine maintenance intervals.
Eco-Compliance and Universal Flexibility
Adapting large-scale chiller equipment to global power standards and strict environmental codes requires versatile machinery. Certified under UL, CE, and ISO 9002 standards, this HVAC screw compressor operates efficiently on eco-friendly R134a refrigerant. Featuring high-efficiency motor windings with integrated NTC thermal protection and dual-voltage support, it provides a direct drop-in replacement solution for major commercial air-cooled liquid chillers.
Product Image
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor

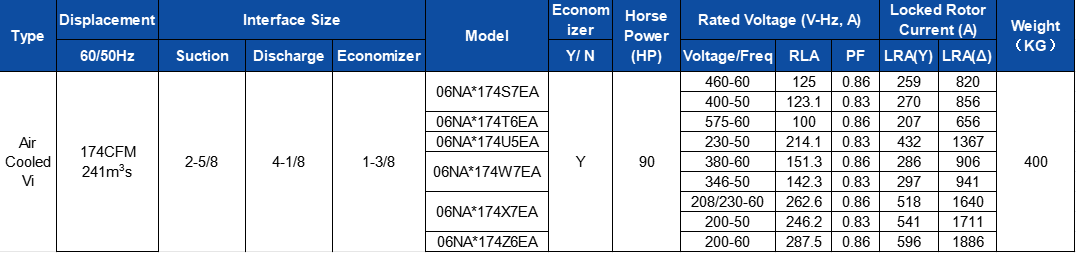

Technical Specifications
Model 06NA2174S7EA-A00
Nominal Power 90 HP
Refrigerant Type R134a
Displacement (60/50Hz) 1174 CFM / 241 m³/h
Economizer Yes
Rated Voltage (V-Hz, A) 460V-60Hz-125A
400V-50Hz-123.1A
Weight 340 kg
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
Company Introduction
Ruifujie is a modern industrial refrigeration supplier with over 20 years of manufacturing expertise, specializing in high-performance scroll, piston, rotary, semi-hermetic, and screw compressors, as well as complete cold room systems and ice machinery. We offer full OEM/ODM customization options to adapt equipment to localized voltage standards and regional engineering demands. Supported by competitive factory-direct pricing, our products are exported worldwide to major international markets including Spain, Chile, and Malaysia, earning trusted long-term partnerships with global contractors and equipment distributors.
06NA2174S7EA-A00 90HP Industrial Refrigeration HVAC Screw Compressor
Frequently Asked Questions
What are the exact displacement and economizer port specifications for the 06NA2174S7EA-A00?
The 06NA2174S7EA-A00 yields a displacement of 241 m³/h at 50Hz (174 CFM at 60Hz) and features an integrated 1-3/8 in economizer port for enhanced subcooling capacity.
How does the economizer circuit benefit high-capacity HVAC chillers?
Connecting an economizer to the designated port increases liquid refrigerant subcooling, which boosts cooling capacity and system COP without significant extra power consumption.
What internal protective components are integrated into this 90HP compressor frame?
The unit includes a discharge muffler, built-in oil filter, internal check valve against reverse rotation, internal safety relief valve, and NTC thermistor sensors for winding over-temperature defense.
Do you offer custom private labeling and brand nameplate services for OEM orders?
Yes, we provide full custom private labeling and branded nameplate customization according to your company requirements for volume OEM orders.
How is this heavy 400 kg screw compressor packaged for safe international shipping?
Each unit is securely mounted onto a reinforced wooden pallet, wrapped in moisture-proof anti-corrosion film, and fully enclosed in a heavy-duty export plywood crate.
Request Direct Factory Quotation
Lower your procurement costs while securing high-performance cooling equipment for your next project. Ruifujie offers factory-direct pricing, customized engineering selection, and rapid delivery schedules for global distributors and contractors. Share your target operating specifications, refrigerant preference, and projected purchase volume now to receive a competitive technical proposal within six hours.
